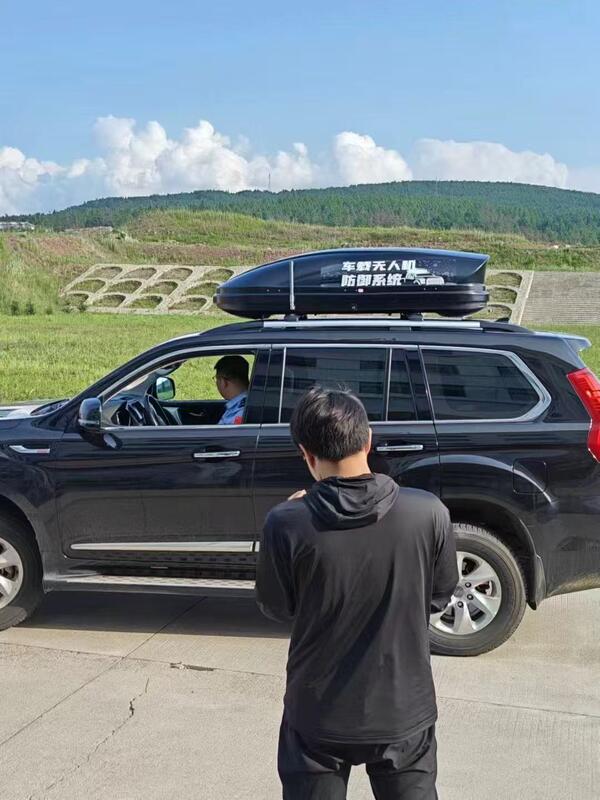

Vehicle-mounted anti-drone defense and target location system

The vehicle-mounted integrated counter-drone defense and target location system aims to provide rapid response and efficient handling capabilities for low-altitude security in mobile scenarios. The system integrates detection, identification, jamming, and location functions onto a single vehicle platform, completing the entire process from detection to countermeasure without the need for complex external equipment. Its integrated design not only improves overall deployment efficiency but also enhances stability in complex environments. Through multi-sensor fusion technology, the system achieves real-time monitoring of low-altitude small drones and, combined with a directional jamming module, rapidly suppresses threatening targets. Furthermore, the vehicle-mounted power system provides reliable support for continuous operation, enabling stable operation in various scenarios such as emergency missions, key area protection, and patrol duty. Facing the increasing challenges of low-altitude security, this system provides a comprehensive solution with rapid deployment, flexible operation, and high coverage capabilities.

This system achieves rapid acquisition of multiple UAV models through the combined operation of wideband radio frequency detection, phased array radar, and optoelectronic equipment. Whether it's consumer-grade rotary-wing drones, fixed-wing drones, or modified models with frequency hopping and stealth flight capabilities, the system can identify their signal characteristics and flight trajectories in a short time. By employing a high-sensitivity identification algorithm, the system can perform pattern matching on abnormal signals, thereby achieving rapid classification and risk labeling. Multi-source data fusion significantly reduces the false alarm rate and improves identification stability in complex electromagnetic environments.

Due to its vibration-resistant structural design and dynamic compensation algorithm, the system maintains high-sensitivity detection capabilities even while the vehicle is moving. Whether traveling at high speed on flat roads or maneuvering through rugged terrain, the monitoring equipment can calibrate vehicle attitude changes in real time, ensuring stable pointing of the radar beam and optical television field. The system's mobility adaptability makes it suitable for missions such as patrol and surveillance, border patrol, and emergency escort, maintaining accurate monitoring of low-altitude threats even under complex maneuvering conditions.

As a vehicle-mounted system, one of its core advantages is "ready to use immediately and withdraw quickly." All detection, command, and jamming modules are integrated inside the vehicle or on the roof platform, eliminating the need for additional towers, server rooms, or cabling. Upon arrival at the mission area, simply activating the system is sufficient for deployment, significantly reducing deployment time. For security units requiring rapid response, this system can significantly shorten deployment cycles, improve mobile protection efficiency, and minimize the impact of environmental modifications on the mission site.
