Product Details
Place of Origin: China
Brand Name: JDY
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-2000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $ 35714
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,D/A,L/C,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
|
Product Name:
|
Fixed Uav Detection, Jamming & Deception System
|
Core Tech:
|
Passive Detection, 4-Sector Strike, Gnss Deception
|
Detection Freq:
|
300MHz~6000MHz; 100MHz~6000MHz (Partial)
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
Detection Dist:
|
1~5km; 1~12km (Jdy-2000p)
|
Jamming Bands:
|
2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
|
Jamming Dist:
|
1~3km; 1~5km (Jdy-2000p)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
500~1000m
|
Transmission Power:
|
500W; ≤2000W (Jdy-2000p Total)
|
Power Supply:
|
AC220V→DC24V; DC27V (Partial)
|
Weight:
|
≤15kg; ≤50kg (Jdy-2000p)
|
Operating Temp:
|
-35ºC~50ºC (Built-in Radiator)
|
Protection Level:
|
IP66
|
Positioning Accuracy:
|
≤10m (Uav); ≤5m (Operator)
|
|
Product Name:
|
Fixed Uav Detection, Jamming & Deception System
|
|
Core Tech:
|
Passive Detection, 4-Sector Strike, Gnss Deception
|
|
Detection Freq:
|
300MHz~6000MHz; 100MHz~6000MHz (Partial)
|
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
|
Detection Dist:
|
1~5km; 1~12km (Jdy-2000p)
|
|
Jamming Bands:
|
2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
|
|
Jamming Dist:
|
1~3km; 1~5km (Jdy-2000p)
|
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
|
Deception Dist:
|
500~1000m
|
|
Transmission Power:
|
500W; ≤2000W (Jdy-2000p Total)
|
|
Power Supply:
|
AC220V→DC24V; DC27V (Partial)
|
|
Weight:
|
≤15kg; ≤50kg (Jdy-2000p)
|
|
Operating Temp:
|
-35ºC~50ºC (Built-in Radiator)
|
|
Protection Level:
|
IP66
|
|
Positioning Accuracy:
|
≤10m (Uav); ≤5m (Operator)
|

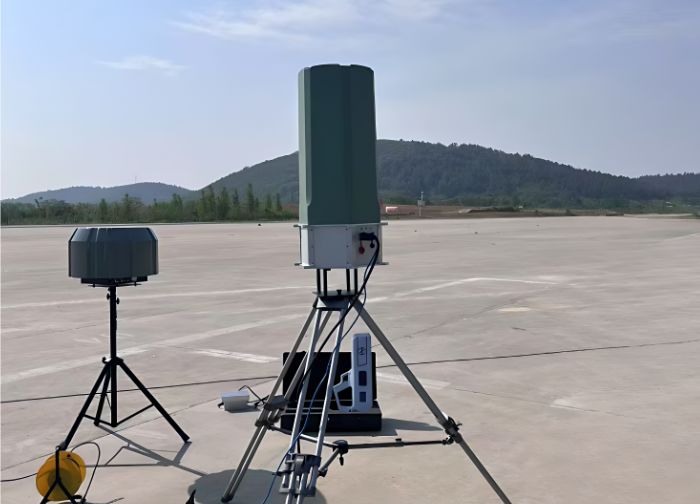

The fixed UAV detection system employs advanced GNSS decoy technology, enabling all-weather operation and ensuring stable performance in various weather conditions. Through its automatic decoy mode, the system effectively interferes with and confuses the navigation systems of enemy UAVs, causing them to stray into designated safe zones or directly leading to loss of control. Whether day or night, the system continuously monitors and reacts rapidly, providing all-weather protection for critical areas.
| Parameter | Description |
|---|---|
| Detection Range | 1-3 km |
| Interference Frequency Band | 900M/1.5G/2.4G/5.2G/5.8G |
| Decoy Mode | Automatically enabled, supports multiple deception strategies |
| Detection Accuracy | ±1 meter |
| Response Time | ≤3 seconds |
| System Power | 1-2 km/h |
| Supported GNSS Types | GPS, GLONASS, BeiDou |
| Battery Life | ≥24 hours |
| Operating Temperature Range | -30°C to +70°C |
| Dimensions | 450*450*850 |
This system features 360° all-around coverage, ensuring that drones approaching from any direction can be detected and tracked instantly. Utilizing multiple high-sensitivity sensors and advanced algorithms, it achieves all-around monitoring without blind spots, effectively improving the accuracy and reliability of drone intrusion detection. Whether in densely populated urban areas or open outdoor environments, it ensures all-weather, all-angle drone protection.
This fixed drone interception system is specifically designed to withstand long-term outdoor environments, featuring a robust shell and waterproof/dustproof capabilities, enabling normal operation under extreme weather conditions. The system utilizes high-strength materials, resisting wind, rain, and UV radiation, ensuring long-term stable operation. Furthermore, the system offers flexible installation options, allowing for various layouts to suit different installation environments and protection requirements.
This detection platform integrates cloud monitoring capabilities, allowing users to remotely view monitoring data and equipment status in real time via the cloud platform. The system uploads detected drone information to the cloud, supporting simultaneous viewing by multiple users. Data analysis and report generation can also be completed online. Users can manage equipment, adjust strategies, and query data anytime, anywhere, significantly improving the accuracy and efficiency of drone monitoring and interception.
