Yunshang Jindou (Nanjing) Technology Co., Ltd
cochran06011@gmail.com
86--13814025757
Product Details
Place of Origin: china
Brand Name: JDY
Model Number: JDY-300pro
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $14286
Packaging Details: Flight case
Delivery Time: 30days
Payment Terms: D/A
Supply Ability: 200 per month
|
Frequency Band:
|
1.4Ghz-6Ghz
|
Controlinterface:
|
LED Indicators And Control Buttons
|
Jamming Response Time:
|
≤2 Seconds
|
Frequencyrange:
|
2.4 GHz And 5.8 GHz
|
Positioning Accuracy:
|
Using Protocol Analysis For Positioning
|
Protection Level:
|
IP55
|
Output Power:
|
≥40dBm
|
Working Duration:
|
Over 150 Minutes
|
Interference Distance:
|
200-1000M
|
Usage Method:
|
Integrated Single-Soldier Handheld
|
Core Working Principle:
|
Electromagnetic Interference Suppression
|
Operating Temperature:
|
-20°C To +50°C
|
Energy Efficiency:
|
≥50%
|
Detection Frequency Range:
|
400MHz--6GHz
|
Control Method:
|
Manual Handheld Operation
|
|
Frequency Band:
|
1.4Ghz-6Ghz
|
|
Controlinterface:
|
LED Indicators And Control Buttons
|
|
Jamming Response Time:
|
≤2 Seconds
|
|
Frequencyrange:
|
2.4 GHz And 5.8 GHz
|
|
Positioning Accuracy:
|
Using Protocol Analysis For Positioning
|
|
Protection Level:
|
IP55
|
|
Output Power:
|
≥40dBm
|
|
Working Duration:
|
Over 150 Minutes
|
|
Interference Distance:
|
200-1000M
|
|
Usage Method:
|
Integrated Single-Soldier Handheld
|
|
Core Working Principle:
|
Electromagnetic Interference Suppression
|
|
Operating Temperature:
|
-20°C To +50°C
|
|
Energy Efficiency:
|
≥50%
|
|
Detection Frequency Range:
|
400MHz--6GHz
|
|
Control Method:
|
Manual Handheld Operation
|

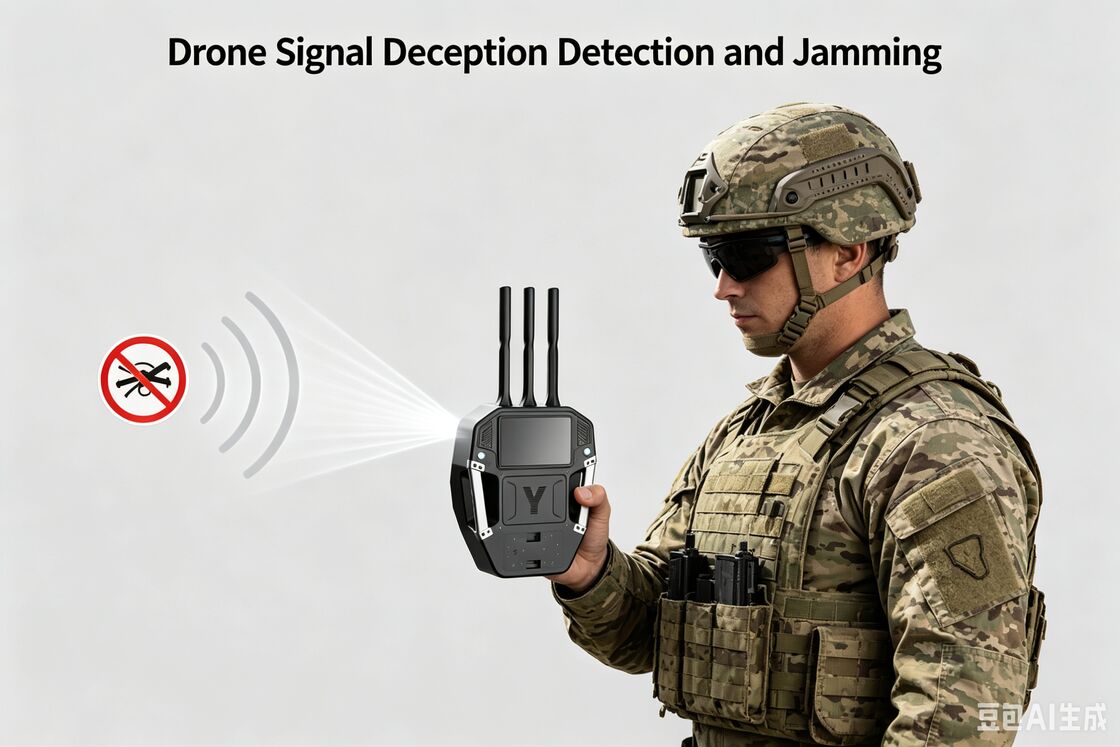

I. Flexible Selection of Multi-Mode Strike Capabilities
The UAV signal navigation decoy and strike system supports multiple response modes, including forced landing, expulsion, decoy expulsion, and decoy no-fly zone. The most suitable strike mode can be flexibly selected for different operational scenarios. For example, in urban airspace, the decoy expulsion mode can be used to reduce interference with surrounding civilian facilities; in sensitive areas, forced landing or no-fly zone modes can be selected to achieve precise control of the UAV and eliminate risks. The system intelligently judges the target type and threat level, enabling operators to make rapid decisions and improve operational efficiency and safety.
II. Product Parameters
| Parameters | Description |
|---|---|
| Detection Frequency | 300MHz-6000MHz Full Coverage |
| Detection Bands | 800MHz/900MHz/2.4GHz/5.2GHz/5.8GHz |
| Detection Distance | 1-3000m (Subject to local electromagnetic environment) |
| Operating Mode | Active Detection + Interference Countermeasures + Navigation Decoy |
| Interference Band | 300-6000MHz (ISM Full Band Coverage) |
| Countermeasure Distance | ≥1500m |
| Decoy Capabilities | No-Fly, Denial, Expulsion |
| Decoy Distance | 0-500m |
| Power Supply | Built-in Lithium Battery ≥95Wh, Removable Design |
| Battery Life | Detection Mode ≥6 hours, Interference Mode ≥50 minutes |
| Equipment Weight | ≤6.5kg (including built-in battery) |
| Equipment Dimensions | 780mm*290mm*95mm |
III. High-Performance Heat Dissipation Design
The system employs a high-performance heat dissipation module, effectively reducing the temperature of internal components and improving the long-term reliability and durability of the equipment. The heat dissipation design combines optimized airflow and high thermal conductivity materials to maintain stable performance even under high-power continuous operation, preventing equipment failure or performance degradation due to overheating and ensuring reliable operation for extended periods in battlefield environments.
IV. Touchscreen Display Operation
Equipped with a 5-inch touchscreen display, the interface is user-friendly and intuitive. Operators can perform operations such as target identification, mode switching, and parameter settings via the touchscreen. The display is highly responsive and presents information clearly, enabling individual soldiers or small teams to quickly grasp the situation, improving combat efficiency and emergency response speed.
V. Rapid Deployment for Individual Soldiers
The system is designed to be lightweight and portable, allowing for rapid deployment by a single soldier without cumbersome operations. Its modular structure facilitates assembly and disassembly, adapting to various combat environments, from urban patrols to field defense, enhancing operational flexibility and mobility.
