Home > Products > Handheld Drone Jammer > High-performance portable anti-drone system (for law enforcement)

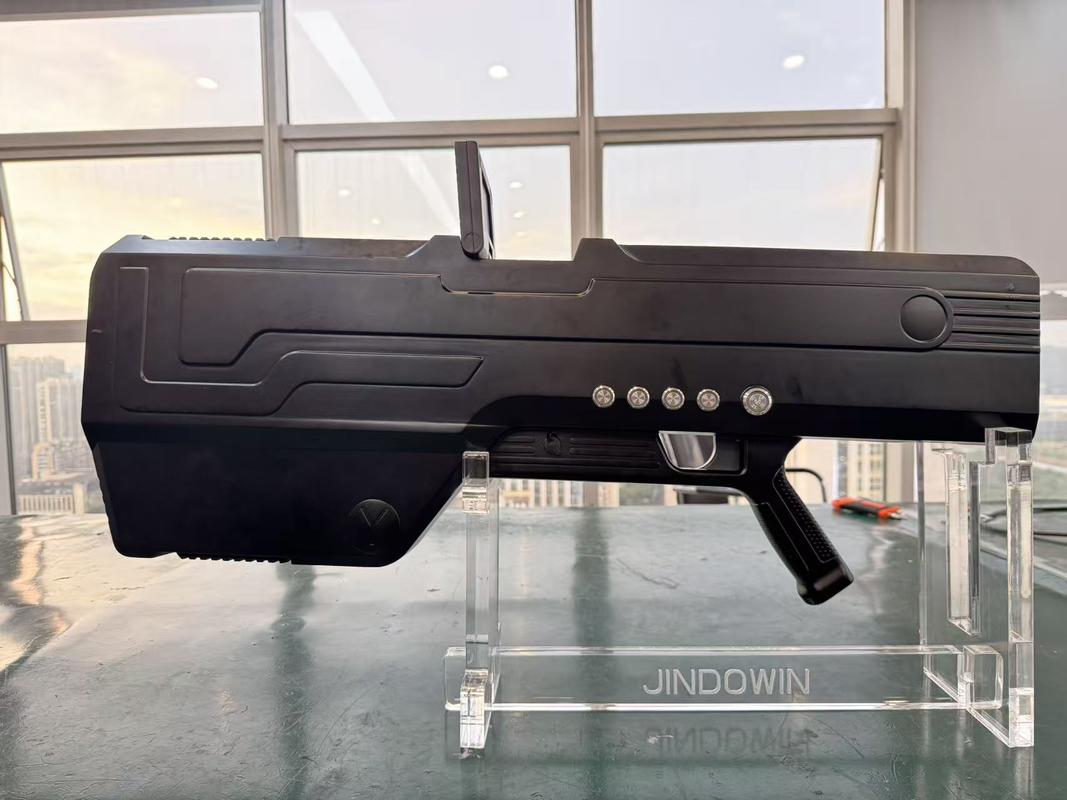

High-performance portable anti-drone system (for law enforcement)

Product Details

Place of Origin: China

Brand Name: jindowin

Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Model Number: JDY-300G

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $8571

Packaging Details: Flight Case

Delivery Time: 30 days

Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram

Supply Ability: 200 per month

Chat Now
Highlight:

800MHz Handheld Anti Drone System

,

800MHz anti frequency jammer

,

6000MHz Handheld Anti Drone System

Product Name:
Jdy-300g Portable Uav Detection, Jamming & Decepti
Core Tech:
Passive Detection, Electromagnetic Suppression, Na
Detection Freq:
1~5km (Depends On Electromagnetic Environment)
Deception Dist:
0~3000m (Adjustable)
Jamming Freq:
800MHz~6000MHz
Jamming Dist:
1~3km (Depends On Electromagnetic Environment)
Power Supply:
Built-in Lithium Battery (29.2V/29.4V)
Weight:
≤6kg (Basic/Flagship), ≤8kg (Upgraded)
Protection Level:
IP65
Display:
3.1"/5" Anti-Glare Touchscreen (Foldable)
Networking:
4G/5g/LAN (Optional)
Deception Signals:
GPS/Bds/Glonass/Galileo
Battery:
Removable, Swap Time ≤60s
Detection Angle:
Horizontal 360°, Vertical -90°~+90°
Positioning Accuracy:
≤5m (Protocol Analysis)
Product Name:
Jdy-300g Portable Uav Detection, Jamming & Decepti
Core Tech:
Passive Detection, Electromagnetic Suppression, Na
Detection Freq:
1~5km (Depends On Electromagnetic Environment)
Deception Dist:
0~3000m (Adjustable)
Jamming Freq:
800MHz~6000MHz
Jamming Dist:
1~3km (Depends On Electromagnetic Environment)
Power Supply:
Built-in Lithium Battery (29.2V/29.4V)
Weight:
≤6kg (Basic/Flagship), ≤8kg (Upgraded)
Protection Level:
IP65
Display:
3.1"/5" Anti-Glare Touchscreen (Foldable)
Networking:
4G/5g/LAN (Optional)
Deception Signals:
GPS/Bds/Glonass/Galileo
Battery:
Removable, Swap Time ≤60s
Detection Angle:
Horizontal 360°, Vertical -90°~+90°
Positioning Accuracy:
≤5m (Protocol Analysis)
High-performance portable anti-drone system (for law enforcement)
High-performance portable anti-drone system (for law enforcement) 0

Compatible with both handheld and vehicle-mounted power supplies. This system is designed with practical application in mind, supporting flexible power solutions: it can be connected to a lightweight handheld battery pack for mobile deployment by a single soldier; or it can be directly connected in parallel to a high-power vehicle-mounted power supply to meet the needs of police cars and command vehicles for long-term patrols and high-speed tracking missions. The power management module features automatic switching and overload protection to ensure that detection and countermeasure capabilities are not affected during switching.

Product Specifications (10 rows x 2 columns)

Parameter Value
Detection frequency 300MHz~6000MHz
Key detection frequency band 2.4G/5.8G/900MHz/1.1G/1.4GHz
Coverage angle 360°
UAV positioning accuracy ≤5m
Detection distance 1-3km
Minimum detection altitude 0m
Countermeasure distance 1~2km
Key countermeasure frequency band 2.4G/5.8G/800MHz/900MHz/GNSS/5.2Ghz
Interference angle ≥30°
Interference response time ≤2s
Power supply Built-in lithium battery
Detection, identification, positioning, and interference functions Available
Networking function 4G/5G function: Optional
Protection level IP65. Device Availability: ≥99.9%, ensuring long-term, trouble-free operation.
Millisecond-level Target Response and One-Click Rapid Deployment

The system employs high-performance signal processing and a dedicated FPGA/ASIC accelerator to achieve millisecond-level target detection and identification. Combined with preset countermeasure strategies, operators can complete locking, tracking, and command output within seconds through a one-click rapid deployment interface, greatly shortening the time window from detection to response, making it suitable for emergency response to sudden airspace intrusions.

Temperature Control and Heat Dissipation Ensure Continuous Operation

To ensure long-term continuous operation, the equipment employs a composite heat dissipation design combining active air cooling and heat pipes, and incorporates temperature sensors and intelligent adjustment algorithms in key modules. Under high load or high temperature environments, it automatically reduces frequency and optimizes task priorities, extending continuous operation capability while preventing performance degradation or malfunctions caused by overheating.

On-site Deployment and Maintenance Support

We provide comprehensive on-site deployment, commissioning, and training services, including on-site environmental assessment, antenna orientation, system integration testing, and tactical drills. We also provide regular maintenance, software upgrades, and spare parts replacement services as needed to ensure the system maintains high availability and up-to-date protection capabilities during long-term use.
