Product Details
Place of Origin: China
Brand Name: jindowin
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-300G
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $17413
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
|

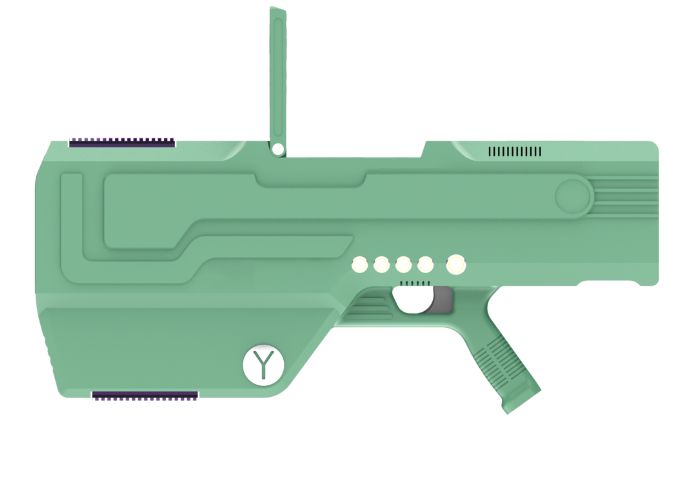

Product Name:
|
Jdy-300g Portable Uav Detection, Jamming & Decepti
|
Core Tech:
|
Passive Detection, Electromagnetic Suppression, Na
|
Detection Freq:
|
1~5km (Depends On Electromagnetic Environment)
|
Deception Dist:
|
0~3000m (Adjustable)
|
Jamming Freq:
|
800MHz~6000MHz
|
Jamming Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Power Supply:
|
Built-in Lithium Battery (29.2V/29.4V)
|
Weight:
|
≤6kg (Basic/Flagship), ≤8kg (Upgraded)
|
Protection Level:
|
IP65
|
Display:
|
3.1"/5" Anti-Glare Touchscreen (Foldable)
|
Networking:
|
4G/5g/LAN (Optional)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Battery:
|
Removable, Swap Time ≤60s
|
Detection Angle:
|
Horizontal 360°, Vertical -90°~+90°
|
Positioning Accuracy:
|
≤5m (Protocol Analysis)
|
|
Product Name:
|
Jdy-300g Portable Uav Detection, Jamming & Decepti
|
|
Core Tech:
|
Passive Detection, Electromagnetic Suppression, Na
|
|
Detection Freq:
|
1~5km (Depends On Electromagnetic Environment)
|
|
Deception Dist:
|
0~3000m (Adjustable)
|
|
Jamming Freq:
|
800MHz~6000MHz
|
|
Jamming Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
|
Power Supply:
|
Built-in Lithium Battery (29.2V/29.4V)
|
|
Weight:
|
≤6kg (Basic/Flagship), ≤8kg (Upgraded)
|
|
Protection Level:
|
IP65
|
|
Display:
|
3.1"/5" Anti-Glare Touchscreen (Foldable)
|
|
Networking:
|
4G/5g/LAN (Optional)
|
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
|
Battery:
|
Removable, Swap Time ≤60s
|
|
Detection Angle:
|
Horizontal 360°, Vertical -90°~+90°
|
|
Positioning Accuracy:
|
≤5m (Protocol Analysis)
|
Comprehensive Drone Frequency Blocking: The device covers 2.4GHz, 5.8GHz, GPS, GLONASS, and BeiDou frequency bands. Employing intelligent spectrum identification and dynamic scanning, it can block multiple protocols and links, countering both consumer and industrial drones. It maintains stable interference in complex electromagnetic environments, protecting airspace.
Technical Specifications
| Parameter | Value |
|---|---|
| Detection frequency | 300MHz~6000MHz |
| Key detection frequency band | 2.4G/5.8G/900MHz/1.1G/1.4GHz |
| Coverage angle | 360° |
| UAV positioning accuracy | ≤5m |
| Detection distance | 1-3km |
| Minimum detection altitude | 0m |
| Countermeasure distance | 1~2km |
| Key countermeasure frequency band | 2.4G/5.8G/800MHz/900MHz/GNSS/5.2Ghz |
| Interference angle | ≥30° |
| Interference response time | ≤2s |
| Power supply | Built-in lithium battery |
| Detection, identification, positioning, and interference functions | Available |
| Networking function | 4G/5G function: Optional |
| Protection level | IP65. Device Availability: ≥99.9%, ensuring long-term, trouble-free operation. |
Highly Integrated Jamming Module: The modular design combines the RF front-end, power amplifier, and spectrum analysis. Its compact size, excellent thermal management, and electromagnetic compatibility ensure stable reliability under high power. The module is replaceable and upgradeable, facilitating maintenance.
Long-Lasting Battery Life: Built-in high-energy battery and intelligent power management optimize discharge and reduce overcharging risks. Supports battery expansion and multiple charging methods (AC/DC, vehicle-mounted), reducing charging frequency and enhancing continuous operation capabilities.
Suitable for Emergency Response and Rapid Deployment: Lightweight and portable, it can be quickly deployed by a single person, starting up in tens of seconds. With an intuitive interface and automated strategies, it is suitable for security and emergency response. Multiple safety mechanisms and compliance prompts ensure operation within a controllable range, minimizing impact on unrelated communications.
