Home > Products > Anti Drone System > 8km Range Safe Counter Drone Device Supports Gps Beidou Glonass Galileo

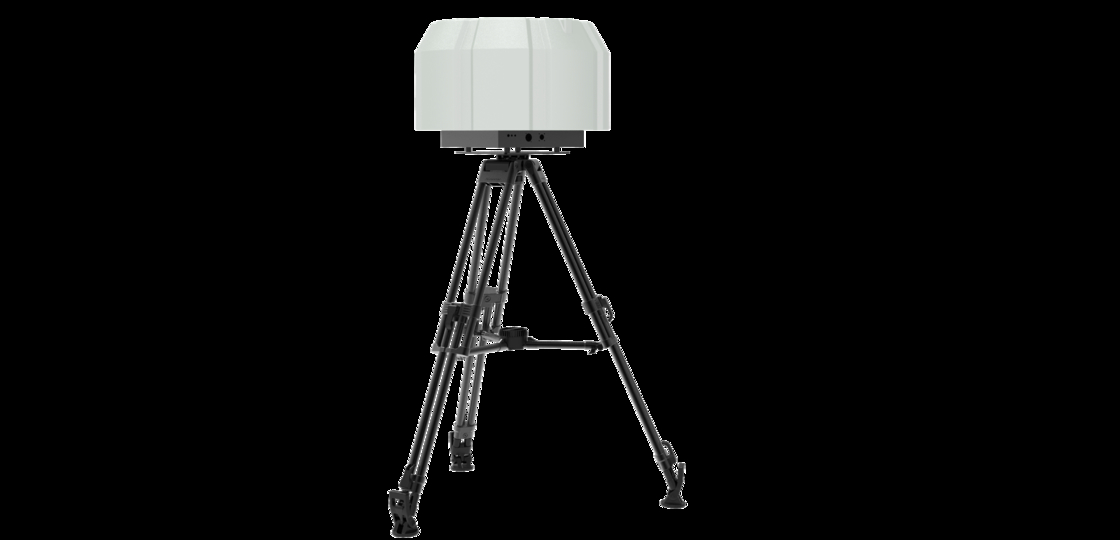

8km Range Safe Counter Drone Device Supports Gps Beidou Glonass Galileo

Product Details

Place of Origin: China

Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Model Number: JDY-900P

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $44670

Packaging Details: Flight Case

Delivery Time: 30 days

Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram

Supply Ability: 200 per month

Chat Now
Highlight:

8km Range Counter Drone Device

,

Safe Counter Drone Device

,

Safe drone anti jamming

Product Name:
Jdy-900(P) Anti-Uav Single-Station Defense System
Core Tech:
Passive Detection, Wideband Scanning
Detection Freq:
300MHz~6000MHz; 300MHz~9000MHz (Partial)
Key Detection Bands:
2.4G/5.8g/800MHz/900MHz/1.4G/5.2GHz
Detection Dist:
Jdy-900:1~5km; Jdy-900p:1~8km
Positioning Accuracy:
≤10m (Uav); ≤5m (Operator)
Jamming Bands:
2.4G/5.8g/900MHz/GPS/Bds/Glonass/Galileo
Jamming Dist:
1~3km (Depends On Electromagnetic Environment)
Jamming Method:
4-Sector Directional/Omnidirectional Strike
Transmission Power:
360W; 1500W (Partial Versions)
Power Supply:
AC220V→DC24V; DC27V (Partial)
Weight:
≤20.0kg
Operating Temp:
-35ºC~50ºC (Built-in Radiator)
Protection Level:
IP66; IP65 (Partial)
Alarm Mode:
Audible/Visual Alarm
Product Name:
Jdy-900(P) Anti-Uav Single-Station Defense System
Core Tech:
Passive Detection, Wideband Scanning
Detection Freq:
300MHz~6000MHz; 300MHz~9000MHz (Partial)
Key Detection Bands:
2.4G/5.8g/800MHz/900MHz/1.4G/5.2GHz
Detection Dist:
Jdy-900:1~5km; Jdy-900p:1~8km
Positioning Accuracy:
≤10m (Uav); ≤5m (Operator)
Jamming Bands:
2.4G/5.8g/900MHz/GPS/Bds/Glonass/Galileo
Jamming Dist:
1~3km (Depends On Electromagnetic Environment)
Jamming Method:
4-Sector Directional/Omnidirectional Strike
Transmission Power:
360W; 1500W (Partial Versions)
Power Supply:
AC220V→DC24V; DC27V (Partial)
Weight:
≤20.0kg
Operating Temp:
-35ºC~50ºC (Built-in Radiator)
Protection Level:
IP66; IP65 (Partial)
Alarm Mode:
Audible/Visual Alarm
8km Range Safe Counter Drone Device Supports Gps Beidou Glonass Galileo
JDY-900(P) Anti-Drone Single-Station Defense System
Product Highlights
  • Single-Station Independent Defense: A single device can establish an effective defense perimeter without relying on complex networking.
  • Multi-Band Coverage: Comprehensive coverage of mainstream frequency bands including 2.4G/5.8G/900MHz/GPS/Beidou/GLONASS/Galileo.
  • Blacklist and Whitelist Management: One-click marking of legitimate drones prevents accidental interference.
  • Unattended Operation: Automatically identifies and disposes of targets based on real-time threat levels.
  • Scalable Networking: Supports LAN and 4G/5G expansion, enabling multi-site interconnection for intelligent prevention and control.
Typical Application Scenarios
  • Airports and Railways: Prevent drones from entering airways or railway airspace, avoiding traffic accidents.
  • Prisons and Examination Centers: Prevent drones from dropping prohibited items or cheating with image transmission.
  • Energy and Industrial Facilities: Ensure the security of sensitive areas such as oil fields, power plants, and communication hubs.
  • Large-scale events: Concerts, sporting events, conferences, and other venues, preventing drones from disrupting public order or taking surreptitious photos.
  • Urban security: Integrating low-altitude surveillance systems improves the safety of public spaces.

The JDY-900(P) offers 8km detection and 3km countermeasures, enabling rapid deployment and long-term protection, making it the preferred low-altitude protection solution for multiple industries.

Product Name Jdy-900(P) Anti-UAV Single-Station Defense System
Core Technology Passive Detection, Broadband Scanning
Detection Frequency 300MHz to 6000MHz; 300MHz to 9000MHz (select models)
Key Detection Frequency Bands 2.4GHz / 5.8GHz / 800MHz / 900MHz / 1.4GHz / 5.2GHz
Detection Range Jdy-900: 1 to 5km; Jdy-900p: 1 to 8km
Positioning Accuracy ≤10m (UAV); ≤5m (operator)
Interference Frequency Bands 2.4GHz / 5.8GHz / 900MHz / GPS / Beidou / Glonass / Galileo
Interference Range 1-3 km (depending on electromagnetic environment)
Interference Mode Four-sector directional/omnidirectional strike
Transmit Power 360W; 1500W (select models)
