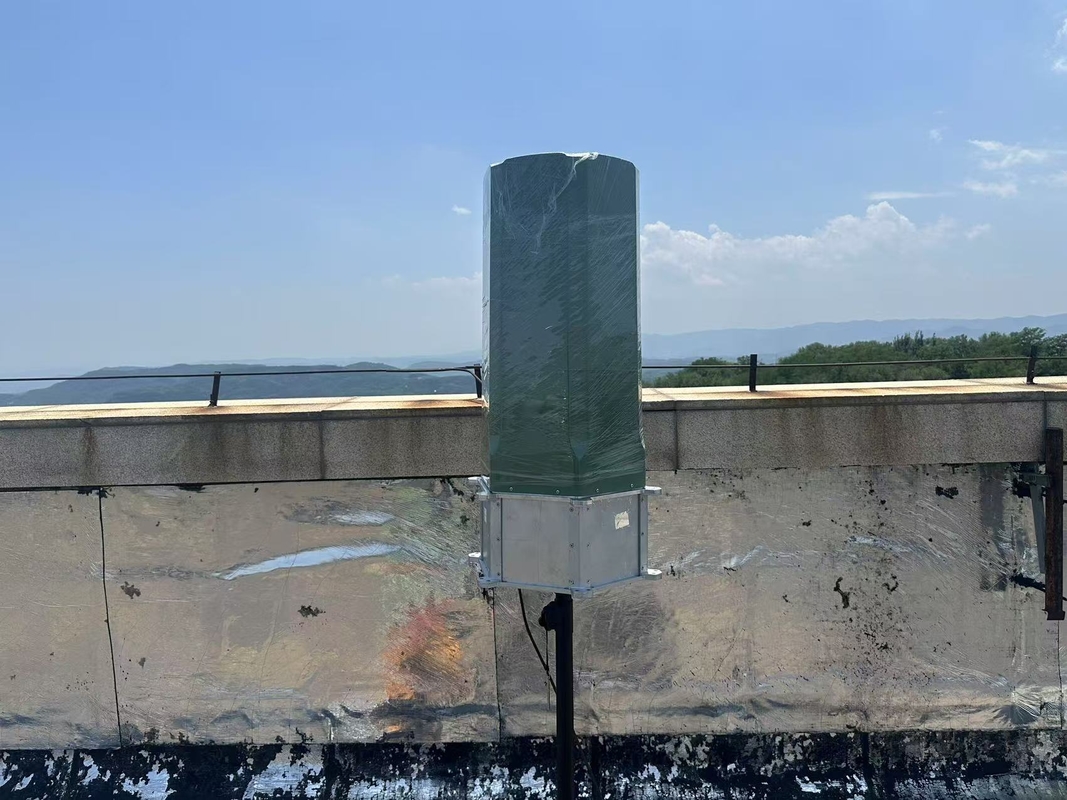

High Precision Anti Drone Countermeasures All Around Protection 2.4GHz 300MHz

Name: High Precision Anti Drone Countermeasures All Around Protection 2.4GHz 300MHz
Brand: AegisCloud (Shenzhen) Technology Innovation Co., Ltd.
SKU: JDY-2000
Price: 62820 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Model Number: JDY-2000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $ 62820

Packaging Details: Flight Case

Delivery Time: 30 days

Payment Terms: T/T,D/A,L/C,D/P,Western Union,MoneyGram

Supply Ability: 200 per month

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            High Precision Anti Drone Countermeasures, 2.4GHz Anti Drone Detection, 2.4GHz Anti Drone Countermeasures


Product Name:	Fixed Uav Detection, Jamming & Deception System	Core Tech:	Passive Detection, 4-Sector Strike, Gnss Deception
Detection Freq:	300MHz~6000MHz; 100MHz~6000MHz (Partial)	Key Detection Bands:	2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
Detection Dist:	1~5km; 1~12km (Jdy-2000p)	Jamming Bands:	2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
Jamming Dist:	1~3km; 1~5km (Jdy-2000p)	Deception Signals:	GPS/Bds/Glonass/Galileo
Deception Dist:	500~1000m	Transmission Power:	500W; ≤2000W (Jdy-2000p Total)
Power Supply:	AC220V→DC24V; DC27V (Partial)	Weight:	≤15kg; ≤50kg (Jdy-2000p)
Operating Temp:	-35ºC~50ºC (Built-in Radiator)	Protection Level:	IP66
Positioning Accuracy:	≤10m (Uav); ≤5m (Operator)

Product Name:	Fixed Uav Detection, Jamming & Deception System
Core Tech:	Passive Detection, 4-Sector Strike, Gnss Deception
Detection Freq:	300MHz~6000MHz; 100MHz~6000MHz (Partial)
Key Detection Bands:	2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
Detection Dist:	1~5km; 1~12km (Jdy-2000p)
Jamming Bands:	2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
Jamming Dist:	1~3km; 1~5km (Jdy-2000p)
Deception Signals:	GPS/Bds/Glonass/Galileo
Deception Dist:	500~1000m
Transmission Power:	500W; ≤2000W (Jdy-2000p Total)
Power Supply:	AC220V→DC24V; DC27V (Partial)
Weight:	≤15kg; ≤50kg (Jdy-2000p)
Operating Temp:	-35ºC~50ºC (Built-in Radiator)
Protection Level:	IP66
Positioning Accuracy:	≤10m (Uav); ≤5m (Operator)

High Precision Anti Drone Countermeasures All Around Protection 2.4GHz 300MHz

Product Overview

The JDY-2000 fixed-mounted drone detection, countermeasure, and decoy defense system (hereinafter referred to as the JDY-2000 system) is a highly integrated device that combines detection, countermeasures, and decoy capabilities. By utilizing passive detection and broadband scanning technology, the system can identify and disrupt illegal drones in real time, ensuring low-altitude airspace security. The system is suitable for a variety of locations, including border inspections, industrial facilities, and VIP security.

Product Advantages

High Integration and Easy Operation: The JDY-2000 system integrates drone detection, countermeasures, and decoy capabilities, simplifying operations and reducing equipment requirements.
All-Weather, All-Around Protection: Supporting 24/7 monitoring and 360° detection capabilities, the system can effectively prevent multiple drone intrusions.
Precise Jamming: The system utilizes multi-band jamming technology to precisely jam 2.4GHz, 5.8GHz, and various navigation signals, effectively severing the connection between drones and remote controls.
Flexible and scalable networking: Supporting 4G and LAN networking, the system enables wireless intelligent management and control of multiple devices to meet diverse scenario requirements.

Application Scenarios

It is suitable for railway protection, airport security, government agencies, financial institutions, and other fields.

Product Name	Fixed UAV Detection, Jamming & Deception System
Core Technology	Passive Detection, Four-Sector Strike, GNSS Spoofing
Detection Frequency	300MHz-6000MHz; 100MHz-6000MHz (select models)
Key Detection Frequency Bands	2.4GHz / 5.8GHz / 400MHz / 800MHz / 900MHz / 1.4GHz
Detection Range	1-5km; 1-12km (JDY-2000p)
Jamming Frequency Bands	2.4GHz / 5.2GHz / 5.8GHz / GPS / Beidou / Glonass / Galileo
Jamming Range	1-3km; 1-5km (JDY-2000p)
Spoofing Signals	GPS / Beidou / Glonass / Galileo
Spoofing Range	500-1000m
Transmit Power	500W; ≤2000W (JDY-2000p total power)
Power Supply	AC220V → DC24V; DC27V (select models)
Weight	≤15kg; ≤50kg (JDY-2000p)
Operating Temperature	-35°C to +50°C (built-in heat sink)
Protection Rating	IP66
Positioning Accuracy	≤10m (UAV); ≤5m (operator)
