Product Details
Place of Origin: China
Brand Name: jindowin
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-900P
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: ＄25714
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
|
Product Name:
|
Jdy-900(P) Anti-Uav Single-Station Defense System
|
Core Tech:
|
Passive Detection, Wideband Scanning
|
Detection Freq:
|
300MHz~6000MHz; 300MHz~9000MHz (Partial)
|
Key Detection Bands:
|
2.4G/5.8g/800MHz/900MHz/1.4G/5.2GHz
|
Detection Dist:
|
Jdy-900:1~5km; Jdy-900p:1~8km
|
Positioning Accuracy:
|
≤10m (Uav); ≤5m (Operator)
|
Jamming Bands:
|
2.4G/5.8g/900MHz/GPS/Bds/Glonass/Galileo
|
Jamming Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Jamming Method:
|
4-Sector Directional/Omnidirectional Strike
|
Transmission Power:
|
360W; 1500W (Partial Versions)
|
Power Supply:
|
AC220V→DC24V; DC27V (Partial)
|
Weight:
|
≤20.0kg
|
Operating Temp:
|
-35ºC~50ºC (Built-in Radiator)
|
Protection Level:
|
IP66; IP65 (Partial)
|
Alarm Mode:
|
Audible/Visual Alarm
|
Mounting Options:
|
Pole, Tripod, Vehicle
|
Radar Defensive System:
|
Photoelectric Tracking Up To 5000m
|
Detection Technology:
|
Radar And/or RF Sensors
|
Jamming Distance:
|
Up To 10000m
|
Packed Weigh:
|
34kg
|
Counter Distance:
|
≥2km
|
Maximum Takeoff Weight:
|
9kg
|
Operation Range:
|
4500m
|
Working Humidity:
|
5% To 95%
|
Maximum Flight Time:
|
180min
|
Battery Life:
|
3 ~ 4h
|
Networking:
|
4G/5G (optional), LAN (RJ45)
|
Distance Accuracy:
|
≤ 5m
|
Azimuth Accuracy:
|
≤1.0°
|
|
Product Name:
|
Jdy-900(P) Anti-Uav Single-Station Defense System
|
|
Core Tech:
|
Passive Detection, Wideband Scanning
|
|
Detection Freq:
|
300MHz~6000MHz; 300MHz~9000MHz (Partial)
|
|
Key Detection Bands:
|
2.4G/5.8g/800MHz/900MHz/1.4G/5.2GHz
|
|
Detection Dist:
|
Jdy-900:1~5km; Jdy-900p:1~8km
|
|
Positioning Accuracy:
|
≤10m (Uav); ≤5m (Operator)
|
|
Jamming Bands:
|
2.4G/5.8g/900MHz/GPS/Bds/Glonass/Galileo
|
|
Jamming Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
|
Jamming Method:
|
4-Sector Directional/Omnidirectional Strike
|
|
Transmission Power:
|
360W; 1500W (Partial Versions)
|
|
Power Supply:
|
AC220V→DC24V; DC27V (Partial)
|
|
Weight:
|
≤20.0kg
|
|
Operating Temp:
|
-35ºC~50ºC (Built-in Radiator)
|
|
Protection Level:
|
IP66; IP65 (Partial)
|
|
Alarm Mode:
|
Audible/Visual Alarm
|
|
Mounting Options:
|
Pole, Tripod, Vehicle
|
|
Radar Defensive System:
|
Photoelectric Tracking Up To 5000m
|
|
Detection Technology:
|
Radar And/or RF Sensors
|
|
Jamming Distance:
|
Up To 10000m
|
|
Packed Weigh:
|
34kg
|
|
Counter Distance:
|
≥2km
|
|
Maximum Takeoff Weight:
|
9kg
|
|
Operation Range:
|
4500m
|
|
Working Humidity:
|
5% To 95%
|
|
Maximum Flight Time:
|
180min
|
|
Battery Life:
|
3 ~ 4h
|
|
Networking:
|
4G/5G (optional), LAN (RJ45)
|
|
Distance Accuracy:
|
≤ 5m
|
|
Azimuth Accuracy:
|
≤1.0°
|
| Product Name | Jdy-900(P) Anti-UAV Single-Station Defense System |
|---|---|
| Core Technology | Passive Detection, Broadband Scanning |
| Detection Frequency | 300MHz to 6000MHz; 300MHz to 9000MHz (select models) |
| Key Detection Frequency Bands | 2.4GHz / 5.8GHz / 800MHz / 900MHz / 1.4GHz / 5.2GHz |
| Detection Range | Jdy-900: 1 to 5km; Jdy-900p: 1 to 8km |
| Positioning Accuracy | ≤10m (UAV); ≤5m (operator) |
| Interference Frequency Bands | 2.4GHz / 5.8GHz / 900MHz / GPS / Beidou / Glonass / Galileo |
| Interference Range | 1-3 km (depending on electromagnetic environment) |
| Interference Mode | Four-sector directional/omnidirectional strike |
| Transmit Power | 360W; 1500W (select models) |

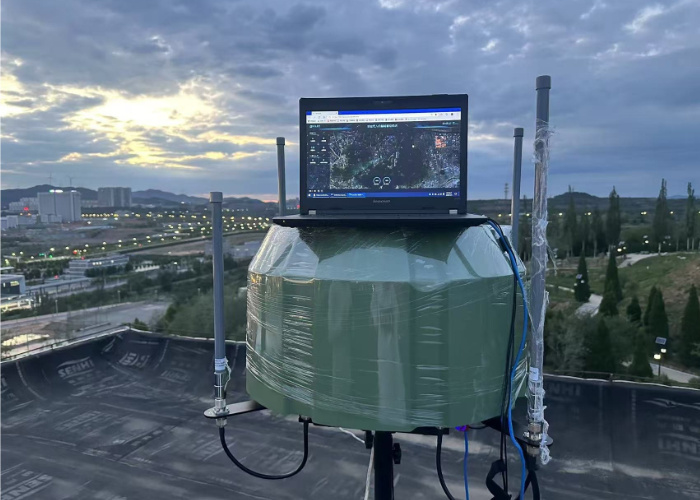

Featuring IP65-rated waterproof and dustproof design, this system maintains optimal performance in extreme weather conditions including high temperatures, humidity, sandstorms, and heavy rain. It provides continuous monitoring and anti-interference capabilities regardless of climate variations, ensuring reliable airport security protection.
The system supports both wireless Wi-Fi and wired Ethernet transmission, allowing for adaptable installation based on airport terrain and requirements. Wireless transmission offers installation flexibility while wired connections provide high-stability data transmission for critical areas.
With remote monitoring and control features, operators can manage equipment from any location via a user-friendly platform. This functionality enables timely response to drone interference and system adjustments, even in unattended environments. Multi-user login with permission allocation ensures secure and controlled operations.
