Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-2000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $ 62820
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,D/A,L/C,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
|
Product Name:
|
Fixed Uav Detection, Jamming & Deception System
|
Core Tech:
|
Passive Detection, 4-Sector Strike, Gnss Deception
|
Detection Freq:
|
300MHz~6000MHz; 100MHz~6000MHz (Partial)
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
Detection Dist:
|
1~5km; 1~12km (Jdy-2000p)
|
Jamming Bands:
|
2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
|
Jamming Dist:
|
1~3km; 1~5km (Jdy-2000p)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
500~1000m
|
Transmission Power:
|
500W; ≤2000W (Jdy-2000p Total)
|
Power Supply:
|
AC220V→DC24V; DC27V (Partial)
|
Weight:
|
≤15kg; ≤50kg (Jdy-2000p)
|
Operating Temp:
|
-35ºC~50ºC (Built-in Radiator)
|
Protection Level:
|
IP66
|
Positioning Accuracy:
|
≤10m (Uav); ≤5m (Operator)
|
|
Product Name:
|
Fixed Uav Detection, Jamming & Deception System
|
|
Core Tech:
|
Passive Detection, 4-Sector Strike, Gnss Deception
|
|
Detection Freq:
|
300MHz~6000MHz; 100MHz~6000MHz (Partial)
|
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
|
Detection Dist:
|
1~5km; 1~12km (Jdy-2000p)
|
|
Jamming Bands:
|
2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
|
|
Jamming Dist:
|
1~3km; 1~5km (Jdy-2000p)
|
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
|
Deception Dist:
|
500~1000m
|
|
Transmission Power:
|
500W; ≤2000W (Jdy-2000p Total)
|
|
Power Supply:
|
AC220V→DC24V; DC27V (Partial)
|
|
Weight:
|
≤15kg; ≤50kg (Jdy-2000p)
|
|
Operating Temp:
|
-35ºC~50ºC (Built-in Radiator)
|
|
Protection Level:
|
IP66
|
|
Positioning Accuracy:
|
≤10m (Uav); ≤5m (Operator)
|

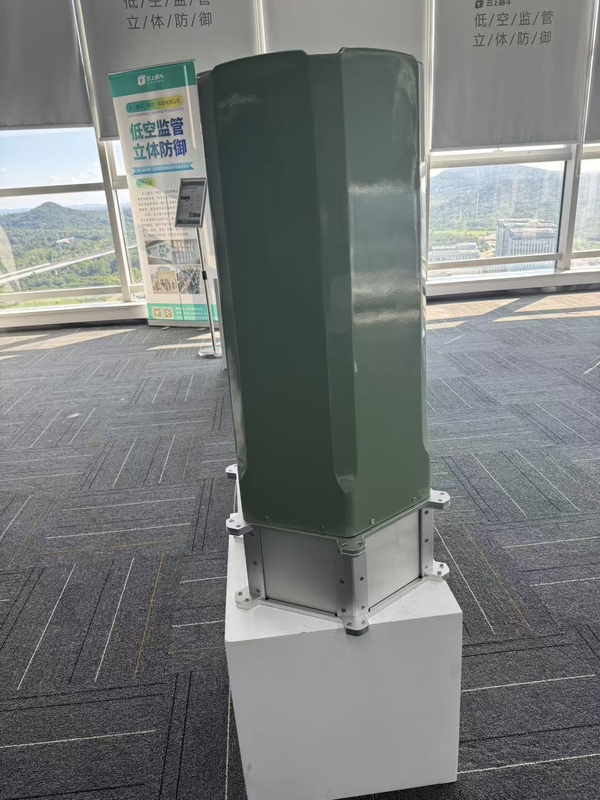

The Fixed Detection, Interference, and Deception Drone Defense System (FDID) is a modular anti-drone system, with each functional module working together to form a complete defense system.
The system's modular collaboration creates a comprehensive defense chain encompassing "detection - jamming - deception - management."
| Product Name | Fixed UAV Detection, Jamming & Deception System |
|---|---|
| Core Technology | Passive Detection, Four-Sector Strike, GNSS Spoofing |
| Detection Frequency | 300MHz-6000MHz; 100MHz-6000MHz (select models) |
| Key Detection Frequency Bands | 2.4GHz / 5.8GHz / 400MHz / 800MHz / 900MHz / 1.4GHz |
| Detection Range | 1-5km; 1-12km (JDY-2000p) |
| Jamming Frequency Bands | 2.4GHz / 5.2GHz / 5.8GHz / GPS / Beidou / Glonass / Galileo |
| Jamming Range | 1-3km; 1-5km (JDY-2000p) |
| Spoofing Signals | GPS / Beidou / Glonass / Galileo |
| Spoofing Range | 500-1000m |
| Transmit Power | 500W; ≤2000W (JDY-2000p total power) |
| Power Supply | AC220V → DC24V; DC27V (select models) |
| Weight | ≤15kg; ≤50kg (JDY-2000p) |
| Operating Temperature | -35°C to +50°C (built-in heat sink) |
| Protection Rating | IP66 |
| Positioning Accuracy | ≤10m (UAV); ≤5m (operator) |
