Home > Products > Anti Drone System > Long Range 1.4GHz Anti Drone Uav Jammer Drone Signal Jamming

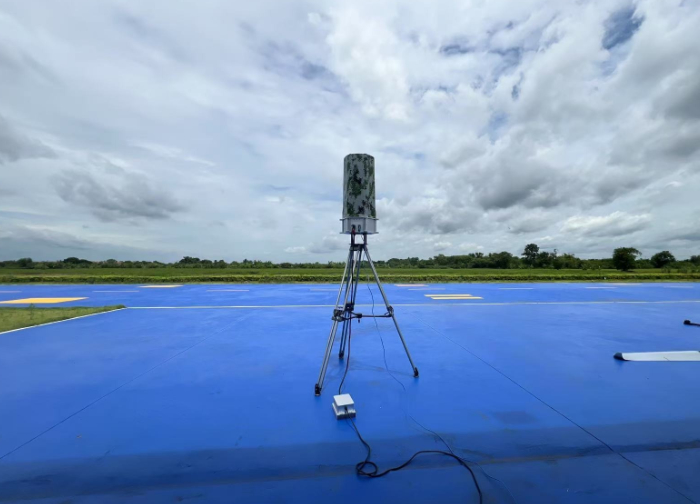

Long Range 1.4GHz Anti Drone Uav Jammer Drone Signal Jamming

Product Details

Place of Origin: China

Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Model Number: JDY-2000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $ 62820

Packaging Details: Flight Case

Delivery Time: 30 days

Payment Terms: T/T,D/A,L/C,D/P,Western Union,MoneyGram

Supply Ability: 200 per month

Chat Now
Highlight:

Long Range Anti Drone Uav Jammer

,

1.4GHz Anti Drone Uav Jammer

,

1.4GHz Drone Signal Jamming

Product Name:
Fixed Uav Detection, Jamming & Deception System
Core Tech:
Passive Detection, 4-Sector Strike, Gnss Deception
Detection Freq:
300MHz~6000MHz; 100MHz~6000MHz (Partial)
Key Detection Bands:
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
Detection Dist:
1~5km; 1~12km (Jdy-2000p)
Jamming Bands:
2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
Jamming Dist:
1~3km; 1~5km (Jdy-2000p)
Deception Signals:
GPS/Bds/Glonass/Galileo
Deception Dist:
500~1000m
Transmission Power:
500W; ≤2000W (Jdy-2000p Total)
Power Supply:
AC220V→DC24V; DC27V (Partial)
Weight:
≤15kg; ≤50kg (Jdy-2000p)
Operating Temp:
-35ºC~50ºC (Built-in Radiator)
Protection Level:
IP66
Positioning Accuracy:
≤10m (Uav); ≤5m (Operator)
Product Name:
Fixed Uav Detection, Jamming & Deception System
Core Tech:
Passive Detection, 4-Sector Strike, Gnss Deception
Detection Freq:
300MHz~6000MHz; 100MHz~6000MHz (Partial)
Key Detection Bands:
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
Detection Dist:
1~5km; 1~12km (Jdy-2000p)
Jamming Bands:
2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
Jamming Dist:
1~3km; 1~5km (Jdy-2000p)
Deception Signals:
GPS/Bds/Glonass/Galileo
Deception Dist:
500~1000m
Transmission Power:
500W; ≤2000W (Jdy-2000p Total)
Power Supply:
AC220V→DC24V; DC27V (Partial)
Weight:
≤15kg; ≤50kg (Jdy-2000p)
Operating Temp:
-35ºC~50ºC (Built-in Radiator)
Protection Level:
IP66
Positioning Accuracy:
≤10m (Uav); ≤5m (Operator)
Long Range 1.4GHz Anti Drone Uav Jammer Drone Signal Jamming

When illegal drones frequently appear in sensitive areas, traditional security measures often struggle to cope. The Fixed Detection, Interference, and Deception Drone Defense System (FDID) is a comprehensive solution designed to address this pain point.

Solution Framework
  • Detection: The system automatically monitors the low-altitude spectrum to identify the source of drone signals.
  • Identification: Intelligent algorithms analyze the model, frequency band, and flight trajectory.
  • Intervention: Precisely jams illegal targets, shutting down remote control and image transmission.
  • Deception: Uses fake navigation signals to guide drones to a safe area for forced landing.
  • Management: Centralized back-end monitoring generates airspace safety reports for easy traceability.
System Value
  • Full-Process Coverage: From detection to action, a closed-loop system is created.
  • Risk Reduction: Effectively prevents potential threats such as surreptitious filming, jamming, and drone delivery.
  • Compliance and Security: Does not impact normal communications or legal flights.
  • Manpower Savings: Automated operations reduce the pressure on security personnel.
Customer Benefits
  • Airport Operators: Ensures normal flight takeoffs and landings.
  • Energy companies: Protect power grids and oil and gas facilities.
  • Large-scale event organizers: Create a safe atmosphere for spectators and participants.
  • Government agencies: Improve public safety management.

With this system, users can establish a "visible, manageable, and controllable" low-altitude defense system, achieving true airspace security.

Product Name Fixed UAV Detection, Jamming & Deception System
Core Technology Passive Detection, Four-Sector Strike, GNSS Spoofing
Detection Frequency 300MHz-6000MHz; 100MHz-6000MHz (select models)
Key Detection Frequency Bands 2.4GHz / 5.8GHz / 400MHz / 800MHz / 900MHz / 1.4GHz
Detection Range 1-5km; 1-12km (JDY-2000p)
Jamming Frequency Bands 2.4GHz / 5.2GHz / 5.8GHz / GPS / Beidou / Glonass / Galileo
Jamming Range 1-3km; 1-5km (JDY-2000p)
Spoofing Signals GPS / Beidou / Glonass / Galileo
Spoofing Range 500-1000m
Transmit Power 500W; ≤2000W (JDY-2000p total power)
Power Supply AC220V → DC24V; DC27V (select models)
Weight ≤15kg; ≤50kg (JDY-2000p)
Operating Temperature -35°C to +50°C (built-in heat sink)
Protection Rating IP66
Positioning Accuracy ≤10m (UAV); ≤5m (operator)
