Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $16750
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: D/A,L/C,D/P,Western Union,T/T,MoneyGram
Supply Ability: 200 per month
Product Name:
|
JDY-500 Fixed UAV Detection System
|
Core Tech:
|
Passive Detection, Spectrum Sensing, AI Identification
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8G/800MHz/900MHz/1.1G/1.2G/1.4GHz
|
Detection Dist:
|
1~3km (depends On Electromagnetic Environment)
|
Positioning Accuracy:
|
≤10m (UAV); ≤5m (operator, Partial)
|
False Alarm Rate:
|
≤1 Time/12 Hours
|
Alarm Mode:
|
Audible/visual (adjustable/silent)
|
Power Supply:
|
AC220V→DC24V
|
Working Time:
|
7×24 Hours Continuous Operation
|
Weight:
|
≤3kg (w/o Tripod); ≤12kg (w/o Tripod & Antenna)
|
Operating Temp:
|
-35℃~50℃; -30℃~75℃ (partial)
|
Protection Level:
|
IP66
|
Networking:
|
4G/5G (optional), LAN (RJ45)
|
Control Platform:
|
Optional (B/S, GIS, Blacklist/whitelist)
|
Product Name:
|
JDY-500 Fixed UAV Detection System
|
Core Tech:
|
Passive Detection, Spectrum Sensing, AI Identification
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8G/800MHz/900MHz/1.1G/1.2G/1.4GHz
|
Detection Dist:
|
1~3km (depends On Electromagnetic Environment)
|
Positioning Accuracy:
|
≤10m (UAV); ≤5m (operator, Partial)
|
False Alarm Rate:
|
≤1 Time/12 Hours
|
Alarm Mode:
|
Audible/visual (adjustable/silent)
|
Power Supply:
|
AC220V→DC24V
|
Working Time:
|
7×24 Hours Continuous Operation
|
Weight:
|
≤3kg (w/o Tripod); ≤12kg (w/o Tripod & Antenna)
|
Operating Temp:
|
-35℃~50℃; -30℃~75℃ (partial)
|
Protection Level:
|
IP66
|
Networking:
|
4G/5G (optional), LAN (RJ45)
|
Control Platform:
|
Optional (B/S, GIS, Blacklist/whitelist)
|

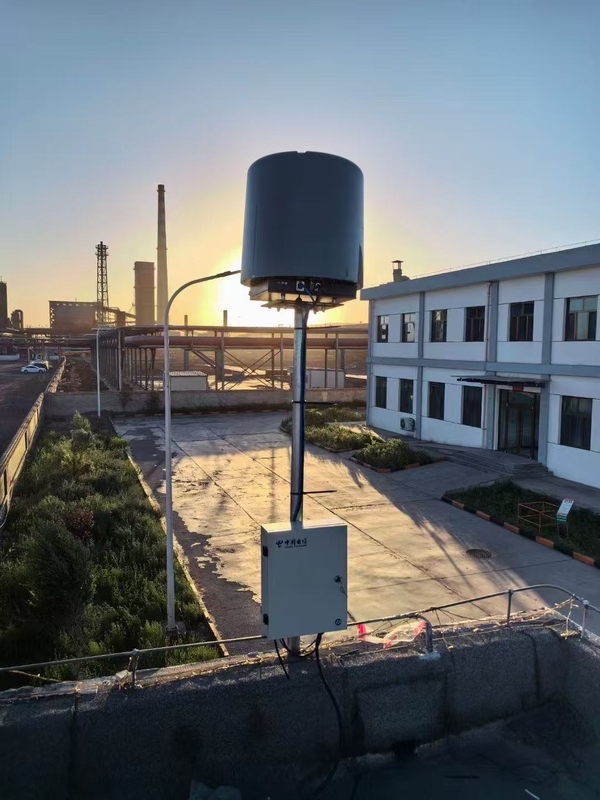

The fixed Drone Detector drone detection system is a comprehensive low-altitude security solution integrating AI intelligent analysis with big data technology. Utilizing multi-channel RF detection and advanced algorithms, this system provides rapid drone identification, trajectory analysis, and risk-based early warning capabilities.
Ideal for scenarios requiring extended unmanned operation and intelligent management, this system enables security personnel to effectively prevent and control unauthorized drone activity.
This intelligent fixed drone detection system represents more than just detection technology - it's a comprehensive low-altitude airspace security management platform. Centered around advanced AI algorithms and visual command capabilities, the system delivers precise, efficient drone defense solutions for enhanced security operations.
