Product Details
Place of Origin: China
Brand Name: jindowin
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: ＄10714
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: D/A,L/C,D/P,Western Union,T/T,MoneyGram
Supply Ability: 200 per month
|
Product Name:
|

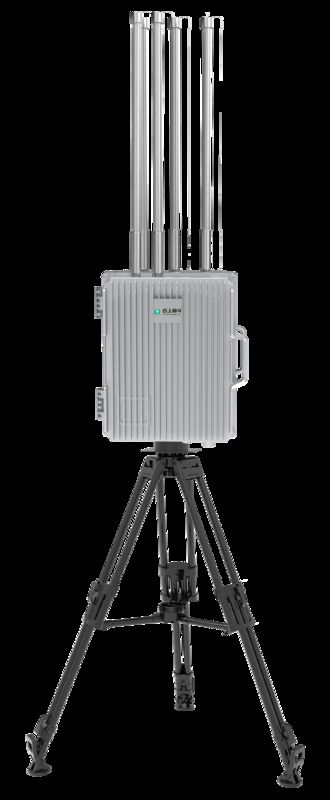

JDY-500 Fixed UAV Detection System
|
Core Tech:
|
Passive Detection, Spectrum Sensing, AI Identification
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8G/800MHz/900MHz/1.1G/1.2G/1.4GHz
|
Detection Dist:
|
1~3km (depends On Electromagnetic Environment)
|
Positioning Accuracy:
|
≤10m (UAV); ≤5m (operator, Partial)
|
False Alarm Rate:
|
≤1 Time/12 Hours
|
Alarm Mode:
|
Audible/visual (adjustable/silent)
|
Power Supply:
|
AC220V→DC24V
|
Working Time:
|
7×24 Hours Continuous Operation
|
Weight:
|
≤3kg (w/o Tripod); ≤12kg (w/o Tripod & Antenna)
|
Operating Temp:
|
-35℃~50℃; -30℃~75℃ (partial)
|
Protection Level:
|
IP66
|
Networking:
|
4G/5G (optional), LAN (RJ45)
|
Control Platform:
|
Optional (B/S, GIS, Blacklist/whitelist)
|
|
Product Name:
|
JDY-500 Fixed UAV Detection System
|
|
Core Tech:
|
Passive Detection, Spectrum Sensing, AI Identification
|
|
Detection Freq:
|
300MHz~6000MHz
|
|
Key Detection Bands:
|
2.4G/5.8G/800MHz/900MHz/1.1G/1.2G/1.4GHz
|
|
Detection Dist:
|
1~3km (depends On Electromagnetic Environment)
|
|
Positioning Accuracy:
|
≤10m (UAV); ≤5m (operator, Partial)
|
|
False Alarm Rate:
|
≤1 Time/12 Hours
|
|
Alarm Mode:
|
Audible/visual (adjustable/silent)
|
|
Power Supply:
|
AC220V→DC24V
|
|
Working Time:
|
7×24 Hours Continuous Operation
|
|
Weight:
|
≤3kg (w/o Tripod); ≤12kg (w/o Tripod & Antenna)
|
|
Operating Temp:
|
-35℃~50℃; -30℃~75℃ (partial)
|
|
Protection Level:
|
IP66
|
|
Networking:
|
4G/5G (optional), LAN (RJ45)
|
|
Control Platform:
|
Optional (B/S, GIS, Blacklist/whitelist)
|
| Parameters | Specifications |
|---|---|
| Supported Frequency Bands | 2.4GHz, 5.8GHz, 1.2GHz, 3.6GHz |
| Maximum Detection Distance | 10km |
| Detection Accuracy | Within 3 meters |
| Operating Temperature | -30°C to +50°C |
| System Response Time | Within 1 second |
| Battery Life | 8 hours |
| Protection Types | GPS interference, communication interference, positioning interference |
| Simultaneous Drone Handling Capability | 30 drones |
| Communication Methods | Wi-Fi, Bluetooth, 4G/5G |
| Dimensions | 600mm x 400mm x 200mm |
Multiple anti-drone systems work together to form a protective network, with multiple alarm methods including audible alerts, visual warnings, and SMS notifications to promptly alert relevant personnel.
