Product Details
Place of Origin: China
Brand Name: jindowin
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: ＄10714
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: D/A,L/C,D/P,Western Union,T/T,MoneyGram
Supply Ability: 200 per month
|
Product Name:
|

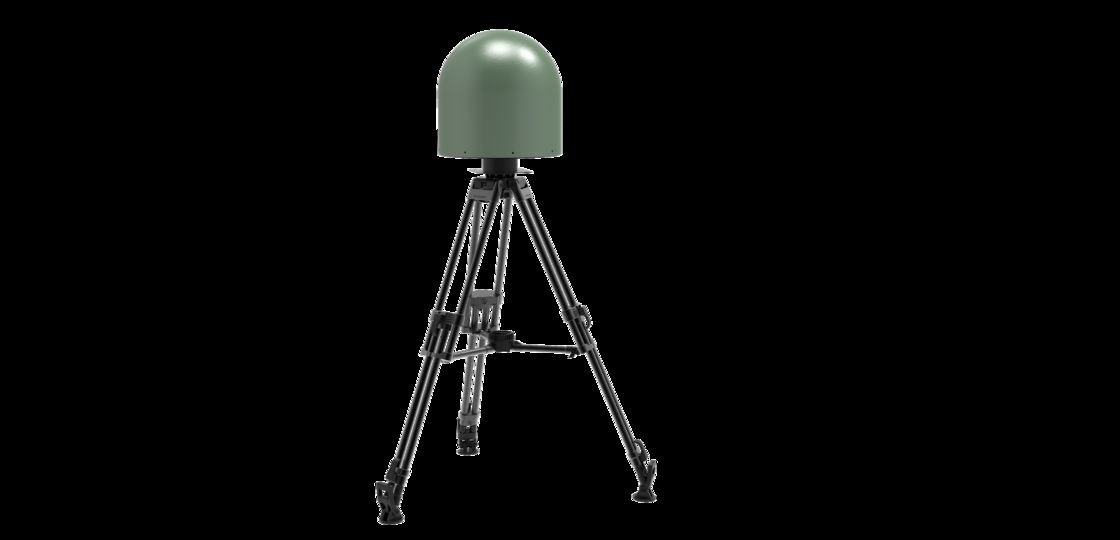

JDY-500 Fixed UAV Detection System
|
Core Tech:
|
Passive Detection, Spectrum Sensing, AI Identification
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8G/800MHz/900MHz/1.1G/1.2G/1.4GHz
|
Detection Dist:
|
1~3km (depends On Electromagnetic Environment)
|
Positioning Accuracy:
|
≤10m (UAV); ≤5m (operator, Partial)
|
False Alarm Rate:
|
≤1 Time/12 Hours
|
Alarm Mode:
|
Audible/visual (adjustable/silent)
|
Power Supply:
|
AC220V→DC24V
|
Working Time:
|
7×24 Hours Continuous Operation
|
Weight:
|
≤3kg (w/o Tripod); ≤12kg (w/o Tripod & Antenna)
|
Operating Temp:
|
-35℃~50℃; -30℃~75℃ (partial)
|
Protection Level:
|
IP66
|
Networking:
|
4G/5G (optional), LAN (RJ45)
|
Control Platform:
|
Optional (B/S, GIS, Blacklist/whitelist)
|
|
Product Name:
|
JDY-500 Fixed UAV Detection System
|
|
Core Tech:
|
Passive Detection, Spectrum Sensing, AI Identification
|
|
Detection Freq:
|
300MHz~6000MHz
|
|
Key Detection Bands:
|
2.4G/5.8G/800MHz/900MHz/1.1G/1.2G/1.4GHz
|
|
Detection Dist:
|
1~3km (depends On Electromagnetic Environment)
|
|
Positioning Accuracy:
|
≤10m (UAV); ≤5m (operator, Partial)
|
|
False Alarm Rate:
|
≤1 Time/12 Hours
|
|
Alarm Mode:
|
Audible/visual (adjustable/silent)
|
|
Power Supply:
|
AC220V→DC24V
|
|
Working Time:
|
7×24 Hours Continuous Operation
|
|
Weight:
|
≤3kg (w/o Tripod); ≤12kg (w/o Tripod & Antenna)
|
|
Operating Temp:
|
-35℃~50℃; -30℃~75℃ (partial)
|
|
Protection Level:
|
IP66
|
|
Networking:
|
4G/5G (optional), LAN (RJ45)
|
|
Control Platform:
|
Optional (B/S, GIS, Blacklist/whitelist)
|
High-Efficiency RF Jamming Design – Precisely Blocking Drone Communication
This fixed anti-drone system employs an advanced RF jamming architecture, capable of effectively shielding multi-band drone signals. The system's built-in wideband signal transmission module can analyze the target drone's communication frequency in real time and transmit jamming waves with millisecond-level response speed, effectively severing the drone's connection to the remote controller and satellite navigation system (GPS/GLONASS/Beidou). Whether it's a consumer-grade drone or an industrial-grade long-endurance aircraft, it can immediately lose control upon entering the defense radius, achieving forced landing or return to base. This RF jamming design not only possesses high power output capability but also supports intelligent spectrum adjustment, ensuring high-efficiency interception performance even in complex electromagnetic environments.
This system is widely applicable to key and sensitive areas suchs as military bases, airports, government buildings, power hubs, and border outposts. It effectively prevents drones carrying camera equipment for illegal reconnaissance or carrying dangerous goods to pose aerial threats. The system can build a stable defensive barrier within the perimeter, achieving 24/7 automatic monitoring and interception, avoiding potential security vulnerabilities. Its remote monitoring platform can also integrate with existing security systems, displaying interference status and alarm records in real time, providing management departments with scientific and traceable security protection data.
The system design incorporates multiple redundancy mechanisms, including power backup modules, automatic heat dissipation devices, and multi-signal link protection technology. Even in extreme weather or sudden power outages, the equipment can continue to operate, ensuring uninterrupted defense. The modular design facilitates maintenance and upgrades, and features self-testing and fault alarm functions, maximizing equipment reliability and lifespan, ensuring high performance even during long-term operation.
This system supports multi-point coordinated deployment and can be uniformly managed via fiber optic or wireless networks. Multiple defense nodes can form a high-density protection network, achieving regional-level drone shielding and defense. Whether for urban airspace control or border defense, the system can achieve data synchronization, coordinated interference, and linked alarms, creating an intelligent, three-dimensional airspace security protection system, providing comprehensive defense for critical facilities.
