Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-2000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $ 62820
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,D/A,L/C,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
|
Product Name:
|

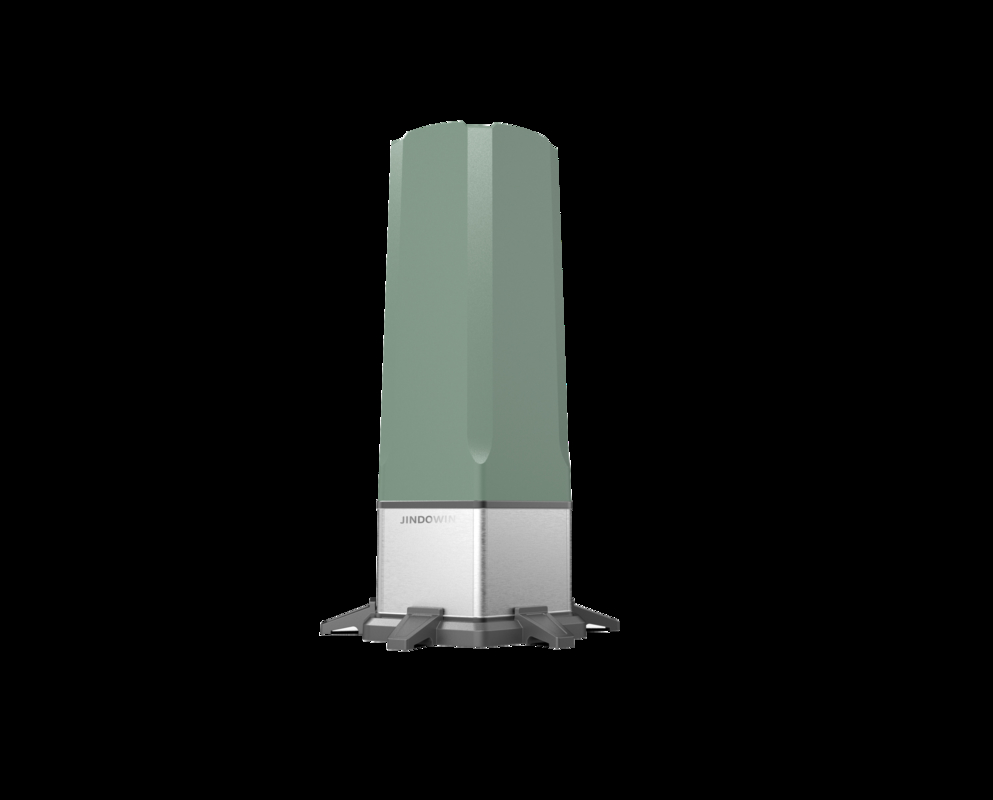

Fixed Uav Detection, Jamming & Deception System
|
Core Tech:
|
Passive Detection, 4-Sector Strike, Gnss Deception
|
Detection Freq:
|
300MHz~6000MHz; 100MHz~6000MHz (Partial)
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
Detection Dist:
|
1~5km; 1~12km (Jdy-2000p)
|
Jamming Bands:
|
2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
|
Jamming Dist:
|
1~3km; 1~5km (Jdy-2000p)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
500~1000m
|
Transmission Power:
|
500W; ≤2000W (Jdy-2000p Total)
|
Power Supply:
|
AC220V→DC24V; DC27V (Partial)
|
Weight:
|
≤15kg; ≤50kg (Jdy-2000p)
|
Operating Temp:
|
-35ºC~50ºC (Built-in Radiator)
|
Protection Level:
|
IP66
|
Positioning Accuracy:
|
≤10m (Uav); ≤5m (Operator)
|
|
Product Name:
|
Fixed Uav Detection, Jamming & Deception System
|
|
Core Tech:
|
Passive Detection, 4-Sector Strike, Gnss Deception
|
|
Detection Freq:
|
300MHz~6000MHz; 100MHz~6000MHz (Partial)
|
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
|
Detection Dist:
|
1~5km; 1~12km (Jdy-2000p)
|
|
Jamming Bands:
|
2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo
|
|
Jamming Dist:
|
1~3km; 1~5km (Jdy-2000p)
|
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
|
Deception Dist:
|
500~1000m
|
|
Transmission Power:
|
500W; ≤2000W (Jdy-2000p Total)
|
|
Power Supply:
|
AC220V→DC24V; DC27V (Partial)
|
|
Weight:
|
≤15kg; ≤50kg (Jdy-2000p)
|
|
Operating Temp:
|
-35ºC~50ºC (Built-in Radiator)
|
|
Protection Level:
|
IP66
|
|
Positioning Accuracy:
|
≤10m (Uav); ≤5m (Operator)
|
A comprehensive counter-drone solution integrating detection, interference, and deception capabilities for robust airspace security.
| Parameter | Specification |
|---|---|
| Detection Distance | 1-5000m (varies based on local electromagnetic environment) |
| Response Distance | 1-3000m (varies based on local electromagnetic environment) |
| Deception Effects | Directional departure, forced landing, no-fly zone enforcement, signal refusal |
The system provides comprehensive drone defense through multiple countermeasure options, adaptable to various operational environments and threat levels.
