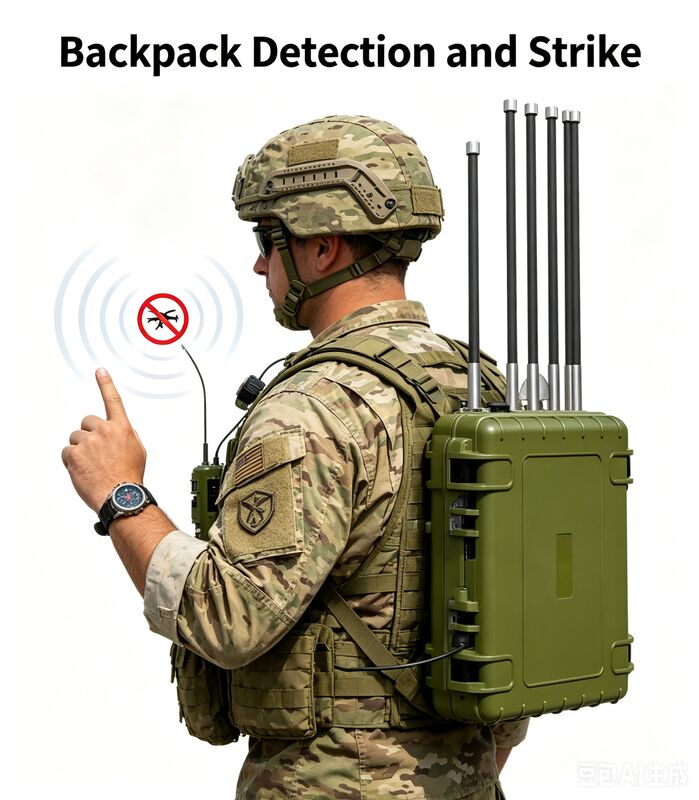

Backpack-Mounted Anti-Drone Signal Detection and Strike Integrated System

Real-time Detection of Multiple Types of UAV Signals

This system can detect the radio signals, remote control signals, and data links of multiple types of UAVs in real time. Whether fixed-wing, rotary-wing, or hybrid UAVs, it can quickly capture their signal characteristics and analyze their flight trajectories, communication frequencies, and control modes through intelligent algorithms, thereby achieving rapid early warning of aerial threats. The system is highly adaptable to signal environments, maintaining high sensitivity and accuracy even in complex electromagnetic interference scenarios

The system adopts a backpack-style portable design, with an overall weight controlled within 12 kg, facilitating rapid deployment and long-term patrols for individual soldiers. The shoulder straps are ergonomically designed and adjustable to accommodate different body types, reducing the burden. Modular component design allows for rapid assembly and disassembly of batteries, display units, and jammers, significantly improving field deployment efficiency and enabling flexible movement in complex terrain.

The system is equipped with a high-resolution touchscreen display that shows the drone's location, flight altitude, and trajectory in real time on a map interface. The trajectory display can overlay timelines and flight speed information, facilitating operator assessment of threat levels and selection of optimal jamming strategies. Simultaneously, the system supports historical trajectory playback, aiding in mission summarization and data analysis, providing data support for optimizing subsequent defense plans.

This system not only detects drone signals but also possesses the ability to quickly identify drone type, purpose, and threat level. Through integrated jamming modules, it can achieve signal blocking, navigation interference, and even targeted strikes. The detection, identification, jamming, and strike functions work closely together to form an end-to-end drone defense closed loop, providing comprehensive protection for individual soldiers or teams in complex environments, ensuring mission safety and execution efficiency.
