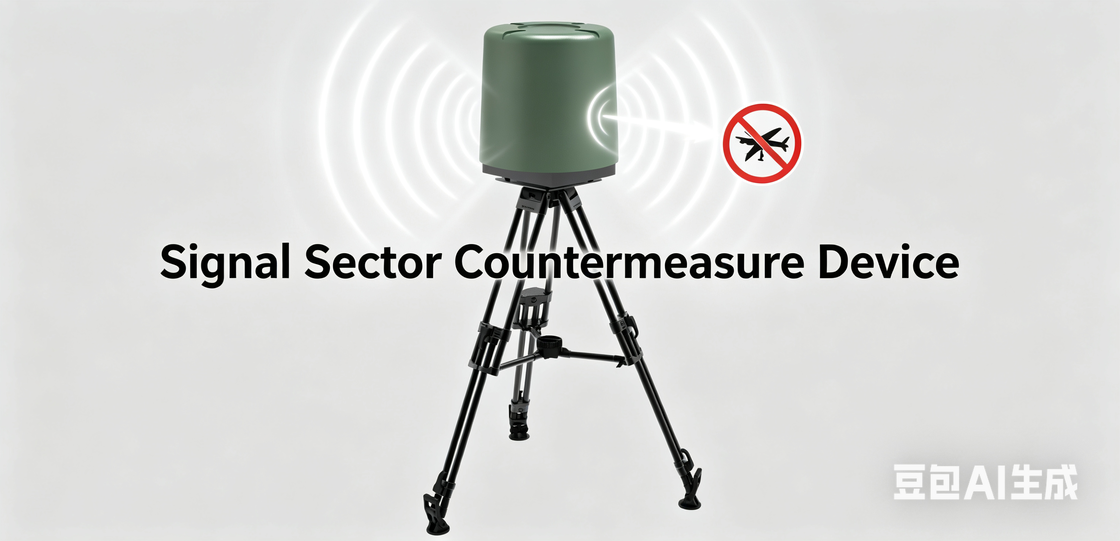

Highly integrated sector signal countermeasure equipment

This highly integrated sector signal countermeasure device employs a combined sector-specific and omnidirectional coverage operating mode. Through multi-channel RF links and intelligent beam control technology, it achieves precise suppression of key areas and blind spot coverage in the surrounding environment. The device can flexibly switch between directional sector and omnidirectional modes according to the application scenario, performing zoned identification and hierarchical processing of target signals, effectively reducing interference from irrelevant areas and improving spectrum utilization efficiency. Simultaneously, combined with intelligent power allocation algorithms and dynamic frequency band identification technology, it makes the countermeasure signal more targeted, maintaining stable output even in complex electromagnetic environments, significantly improving countermeasure accuracy and operational safety. It is suitable for various application scenarios such as key protection areas, mobile deployments, and temporary control.

The equipment adopts a highly modular structure design. The RF unit, power module, control unit, and heat dissipation system are all independent modules, which can be flexibly combined and expanded according to actual mission requirements. Modules are connected through standardized interfaces, supporting rapid disassembly and maintenance, significantly reducing deployment and upgrade costs. In network applications, multiple devices can form a distributed collaborative working system through wired or wireless means, achieving regional cascade coverage and centralized management. The system supports master-slave control, zone scheduling, and remote centralized monitoring. It can be quickly deployed in various configurations—fixed, vehicle-mounted, or portable—to meet specific site requirements, enhancing overall system flexibility and scalability.

The enclosure utilizes a high-strength metal structure and a sealed industrial design, providing excellent dustproof, waterproof, and impact resistance. The equipment achieves an IP65 or higher protection rating, enabling stable operation in complex outdoor environments such as rain, snow, sandstorms, and high humidity. The enclosure surface is treated with an anti-corrosion coating, effectively resisting salt spray and UV aging, extending the equipment's lifespan. Simultaneously, the internal design employs independent air ducts and a heat-conducting structure, ensuring good heat dissipation while maintaining sealing performance, guaranteeing reliable long-term full-power operation, suitable for all-weather outdoor fixed deployments and mobile work environments.

The equipment incorporates a highly reliable local data storage module, capable of real-time recording and saving operation logs, spectrum data, alarm information, and equipment status. The system supports cyclic storage and historical data query functions, facilitating later analysis and task review. By combining local storage with remote export, users can quickly obtain critical operational data, improving management and maintenance efficiency. Simultaneously, the device supports independent operation even when the network is offline; all operations and events are automatically saved and synchronized to the management platform once the network is restored, ensuring data integrity and security, and meeting the needs of long-term unattended operation and critical application scenarios.
