Home > Products > Handheld Drone Jammer > Single-station fixed 8km signal detection and blocking integrated equipment

Single-station fixed 8km signal detection and blocking integrated equipment

Product Details

Place of Origin: china

Brand Name: JDY

Model Number: JDY-900P

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $25714

Packaging Details: Flight case

Delivery Time: 30days

Payment Terms: D/A

Supply Ability: 200 per month

Chat Now
Highlight:

handheld drone jammer 8km range

,

fixed signal detection drone jammer

,

single-station drone blocking equipment

Frame Specification:
LekDro 10Inch Carbon Fiber Frame
Voltage:
220V To DC 29.4V
Power Interface:
Aviation Socket WS20-2
Powersource:
Rechargeable Lithium-ion Battery
Intercept Frequency Band:
2.4G/5.8g/900MHz/1.1g/1.4G
Detection Band:
2.4Ghz, 5.8Ghz
Effectivejammingdistance:
Up To 500 Meters
Alerts Mode:
Audio/Visual Alerts
Antenna Type:
Directional
Interference Bandwitch:
900MGz, 1.5 Ghz, 2.4Ghz, 5.8GHz
Device Dimensions:
663mm×298mm×88mm
Networking Function:
4G/5g (Optional)
Storage Temperature:
-20°C To 60°C
Convenience:
Portable
Additional Features:
Multi-frequency Jamming, Easy To Operate
Frame Specification:
LekDro 10Inch Carbon Fiber Frame
Voltage:
220V To DC 29.4V
Power Interface:
Aviation Socket WS20-2
Powersource:
Rechargeable Lithium-ion Battery
Intercept Frequency Band:
2.4G/5.8g/900MHz/1.1g/1.4G
Detection Band:
2.4Ghz, 5.8Ghz
Effectivejammingdistance:
Up To 500 Meters
Alerts Mode:
Audio/Visual Alerts
Antenna Type:
Directional
Interference Bandwitch:
900MGz, 1.5 Ghz, 2.4Ghz, 5.8GHz
Device Dimensions:
663mm×298mm×88mm
Networking Function:
4G/5g (Optional)
Storage Temperature:
-20°C To 60°C
Convenience:
Portable
Additional Features:
Multi-frequency Jamming, Easy To Operate

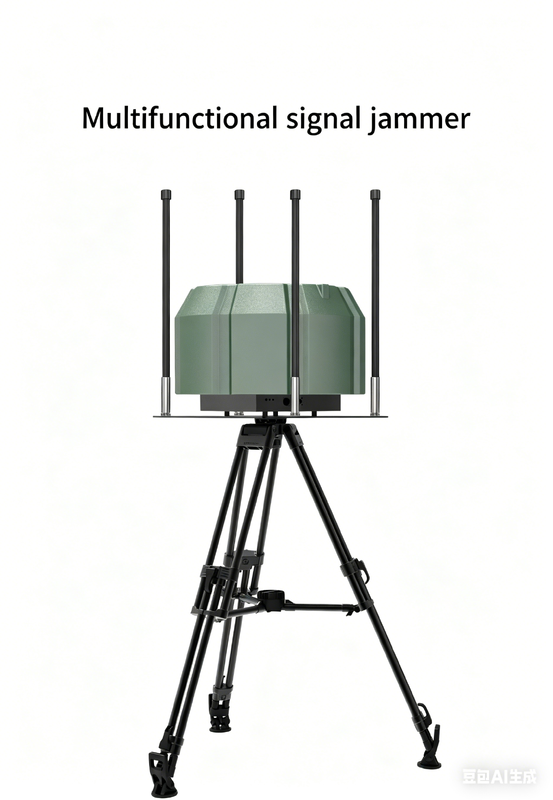

Single-station fixed 8km signal detection and blocking integrated equipment
High-Efficiency Signal Detection Technology, Coverage Up to 8 Kilometers

This equipment employs advanced signal detection technology, enabling it to efficiently identify and monitor various radio signals within a target area. With its superior detection sensitivity and precise signal analysis capabilities, the equipment can cover a range of up to 8 kilometers. This makes it outstanding in signal monitoring and interference prevention over large areas, effectively identifying signal sources from afar and providing data support for subsequent interference measures. Whether in urban environments or open outdoor areas, this equipment provides stable signal monitoring services.

Single-station fixed 8km signal detection and blocking integrated equipment 0

Product Parameter Table
Parameter Name Parameter Details
Detection Distance 300MHz-6G
Key Detection Frequency Bands: 400M/500M/600M/700M/800M/900M/1.1G/1.2G/1.4G/1.5G/2.4G/3.3G/5.2G/5.8G (customization)
Detection Distance 1-8KM
Interference Frequency Bands 900M1.5G2.4G5.2G5.8G
Interference Distance > 1-2KM
Response Time ≤3s
Product Dimensions 580*580*320mm
Packaging Dimensions 720*720*455mm
Product Weight 15KG
Total Product Weight 45KG
Designed for Fixed Installation, Highly Stable

This device is specifically designed for fixed installation, ensuring excellent performance in long-term stable operation environments. Its robust casing and sophisticated internal circuitry design allow it to maintain efficient operation under various harsh conditions. Whether in high-temperature, low-temperature, or humid climates, the device maintains excellent anti-interference capabilities and stability, offering strong adaptability and ensuring long-term maintenance-free operation. The fixed installation effectively reduces the impact of the external environment, making the device more reliable in signal detection and interference blocking.

Multifunctional Integration, Signal Detection and Interference in One

This device integrates signal detection and interference functions, providing a one-stop solution. It not only efficiently detects and analyzes signals but also performs real-time interference processing on detected signals. Through its built-in advanced interference module, the device can precisely shield and interfere with radio signals in specific frequency bands, preventing unauthorized signals from entering target areas and ensuring environmental security. It plays a vital role in public safety, military, and other highly confidential locations.

24/7 Service Provided, Equipment Supports 24-Hour Operation

To ensure stable operation at all times, this equipment supports 24/7 service. It is capable of continuous 24-hour operation, performing signal detection and interference processing for extended periods without interruption. Whether day or night, the equipment operates efficiently and stably, ensuring it can respond to various potential radio signal threats at all times. Furthermore, the equipment's built-in automatic monitoring and alarm functions can promptly detect anomalies, ensuring user safety.
