Portable anti-drone defense equipment integrating reconnaissance, strike, and decoy functions

Name: Portable anti-drone defense equipment integrating reconnaissance, strike, and decoy functions
Brand: Yunshang Jindou (Nanjing) Technology Co., Ltd
SKU: JDY-600B
Price: 21429 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: JDY

Model Number: JDY-600B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $21429

Packaging Details: Flight case

Delivery Time: 30days

Payment Terms: D/A

Supply Ability: 200 per month

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            500m Jamming Distance Handheld Drone Jammer, Multi-Band Jamming Portable Anti-Drone Device, Lightweight Design Wearable UAV Jammer


Jamming Distance:	Up To 500 Meters	Waterproof:	It Can Work In Light Rain
Interference Distance:	200-1000M	Countermeasure Range:	≥1500m
Gain:	3±1dBi	Jamming Band:	2.4G 5.8G 5.2G 433M 900M 1.5GHz
Operating Temperature:	-10°C To 50°C	Detection Band:	2.4Ghz, 5.8Ghz
Frame Specification:	LekDro 10Inch Carbon Fiber Frame	Device Weight:	≤14kg
Interference Radius:	1-2km	Max Power Consumption:	≤785W
Certifications:	CE, FCC, RoHS	Power Interface:	Aviation Socket WS20-3
Interference Bands:	Most 2.4Ghz, 5.8Ghz Drones

Jamming Distance:	Up To 500 Meters
Waterproof:	It Can Work In Light Rain
Interference Distance:	200-1000M
Countermeasure Range:	≥1500m
Gain:	3±1dBi
Jamming Band:	2.4G 5.8G 5.2G 433M 900M 1.5GHz
Operating Temperature:	-10°C To 50°C
Detection Band:	2.4Ghz, 5.8Ghz
Frame Specification:	LekDro 10Inch Carbon Fiber Frame
Device Weight:	≤14kg
Interference Radius:	1-2km
Max Power Consumption:	≤785W
Certifications:	CE, FCC, RoHS
Power Interface:	Aviation Socket WS20-3
Interference Bands:	Most 2.4Ghz, 5.8Ghz Drones

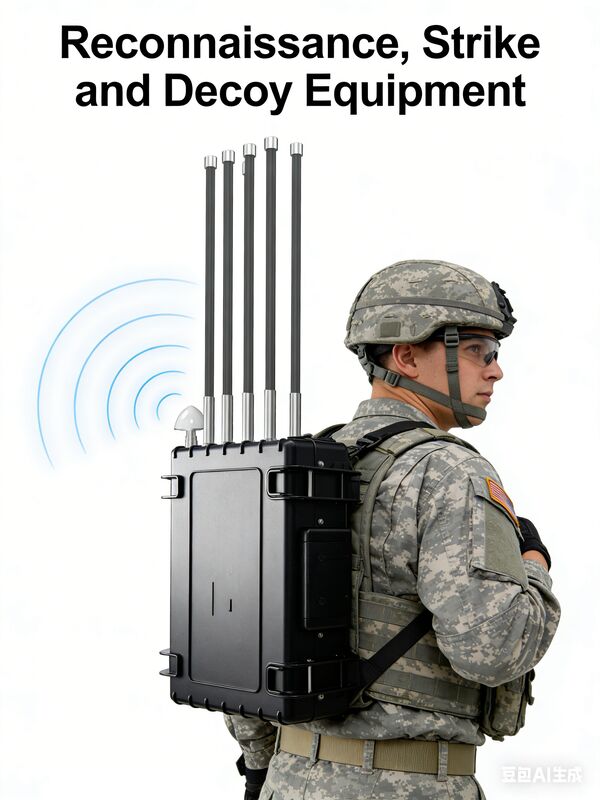

Portable anti-drone defense equipment integrating reconnaissance, strike, and decoy functions

Introduction to GPS/Navigation Spoofing/Decoy Functions

Wearable anti-Drone reconnaissance and decoy equipment utilizes advanced GPS navigation spoofing technology at its core. By simulating legitimate or forged navigation signals, it misleads the drone's positioning module, thereby affecting the drone's flight path and control system. The equipment can actively generate virtual coordinate points and, through directional or omnidirectional signal transmission, make the drone "mistakenly believe" it is in the wrong location, triggering preset behaviors such as yaw, forced landing, hovering, or automatic return.

This system has extremely high value in tactical operations, special patrols, key area protection, law enforcement emergency response, and low-altitude airspace security management scenarios. Its core capability not only interferes with enemy drones but also disguises itself as a legitimate navigation signal node, inducing drones to actively approach the trap area, thereby assisting troops in carrying out capture, detection, or countermeasure operations. Unlike traditional high-interference electromagnetic suppression equipment, this device boasts superior concealment, enabling "silent countermeasures" and making it difficult for enemy detection systems to identify. It is well-suited for covert deployment missions in complex environments.

The JDY-600B is highly portable, making it ideal for mountain and forest reconnaissance, freeing up your hands for other tasks. In cities, it can be used for on-site investigations and early detection of illegal drones. Explosives squads can use it to secure densely populated areas. From airports to construction sites, quiet operation, confidentiality, and information security are crucial in various settings. Business negotiations, gas stations, and personal privacy also require protection. This device can be widely used in sensitive areas, public spaces, businesses, events, and prison security. Its necessity lies in addressing drone-related security threats and ensuring social stability and order.

Product Parameter Table

Parameter Category	Specific Description
Equipment Type	Wearable UAV Detection and Navigation Spoofing Terminal
Operating Mode	GPS Spoofing / Induced Return / Path Deviation / Silent Detection
Frequency Band Support	GPS L1/L2, Beidou B1/B2, GLONASS, GALILEO and other multi-frequency systems
Coverage Range	300m–3000m (Adjustable according to environmental conditions and power configuration)
Data Interface	Type-C / USB-OTG / Wireless Update Module
Positioning Algorithm	AI Dynamic Interference Algorithm + Modulated Signal Model
Installation Method	Backpack-style modular interface, can be mounted on helmet/vest system
Power Specification	Removable lithium battery + spare tactical battery interface
Weight	12KG

Wearable Tactical Design Advantages

This device adopts a highly integrated all-in-one design, which can be flexibly changed according to equipment form, such as backpack module, chest-mounted module or hidden embedded tactical vest structure. Its compact structure and light weight are suitable for long-term mobile, infiltration or rapid deployment missions for individual soldiers. The operation is simple; signal output mode switching can be completed via buttons or a smart touch interface, requiring no professional wireless engineering background.

The equipment conforms to ergonomic standards and can withstand extreme environments such as high temperatures, extreme cold, sandstorms, rain, and snow. The outer shell is designed with impact-resistant, flame-retardant, and low-reflective materials, without affecting camouflage. In scenarios such as nighttime, dense forest, urban warfare, and special operations, it achieves low visibility, high concealment, rapid deployment, and silent control, greatly enhancing tactical response capabilities and mobility.

Battery Powered/Rechargeable System Design

To meet the needs of field operations, missions without fixed power supply, and long-term mobile operations, this equipment adopts a high-density military-grade lithium battery power supply system. The battery supports hot-swapping and quick replacement, ensuring uninterrupted operation. Simultaneously, multiple power supply options are available, including a solar tactical module, a portable charging box, and a vehicle power adapter, allowing operators to conduct long-term operations in the field without relying on a fixed energy source.

A multi-level energy-saving strategy allows the system to freely switch between reconnaissance, guidance, and jamming modes, maximizing endurance. Users can view real-time power consumption status, battery percentage, and estimated remaining runtime through the device interface to perform reasonable energy management and mission planning.

Summary of the Core Tactical Value of GPS/Navigation Deception

As a new type of low-altitude defense equipment, this system can accurately simulate navigation satellite signals and control the navigation behavior of drones through deception, interference, or camouflage. The device can not only force drones to change course, drift, or return to base, but also induce targets into preset areas, achieving a "soft capture" tactical effect. Compared to traditional noise-based jamming methods, this technology has high concealment, controllability, and no risk of exposure, effectively avoiding enemy detection or spectrum analysis.

This equipment has irreplaceable application potential in sensitive front lines, counter-terrorism operations, protection of key facilities, urban air defense systems, border patrols, and VIP security. It will become an important component of future individual soldier anti-drone equipment systems, providing new technological advantages for low-altitude security and future tactical operations.

FAQ

Q1: Who are you, and what do you do?
A1: We are a R&D-driven high-tech company, specialized in the R&D, production and sales of signal amplifiers, wireless signal control systems, wireless signal countermeasure equipment, wireless signal blocking equipment, and explosion-proof jamming equipment.

Q2: Are you a manufacturer or a trading company?
A2: We are a manufacturer. Our factory is located in Yuhuatai District, Nanjing City, Jiangsu Province, and we welcome you to visit us.

Q3: Do you accept custom-made products?
A3: Yes, we can customize products according to customers' requirements, including different frequencies, power levels, sizes, as well as custom packaging and laser-engraved logos based on specific needs.

Q4: What about the delivery time?
A4: Generally speaking, the delivery time for regular order quantities is 1 to 3 months. However, for large orders, please confirm further details with us.

Q5: What about labels and logos?
A5: Custom labels and logos are available.

Q6: What is the minimum order quantity (MOQ)?
A6: The MOQ varies by product, ranging from 1 to 20 units.

Q7: What should I do if the received product is defective?
A7: Our strict quality control ensures a 100% qualification rate. However, products may get damaged during transportation. Please share photos or videos of the defective product to let us know the specific issue. We will provide compensation accordingly, or send you replacement parts or a new product. All purchased products come with a 1-year warranty and technical support.
