4G/5G/LAN Fixed Drone Omnidirectional Countermeasure Equipment

Name: 4G/5G/LAN Fixed Drone Omnidirectional Countermeasure Equipment
Brand: Yunshang Jindou (Nanjing) Technology Co., Ltd
SKU: JDY-400
Price: 5000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: JDY

Model Number: JDY-400

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $5000

Packaging Details: Flight case

Delivery Time: 30days

Payment Terms: Western Union

Supply Ability: 200 per month

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            800MHz~6000MHz Jamming Freq Handheld Drone Jammer, Built-in Lithium Battery Portable Drone Jammer, Touch Screen Control UAV Countermeasure Device


Band:	2 Band	Jamming Freq:	800MHz~6000MHz
Power Supply:	Built-in Lithium Battery (29.4V)	Interference Bandwitch:	900MGz, 1.5 Ghz， 2.4Ghz， 5.8GHz
Battery:	Removable, Swap Time ≤60s	Azimuth Accuracy:	10°(RMS)
Portability:	Handheld, Lightweight Design	Antenna:	Directional
Band Power:	50W+50W	Control Method:	Touch Screen
Display:	LED Status Indicators	Jamming Frequency Band:	900MHz, 1.5Ghz, 2.4Ghz, 5.8Ghz
Color:	Blue	Special Features:	Build "no Flying Zone"
Interference Distance:	200-1000M

Band:	2 Band
Jamming Freq:	800MHz~6000MHz
Power Supply:	Built-in Lithium Battery (29.4V)
Interference Bandwitch:	900MGz, 1.5 Ghz， 2.4Ghz， 5.8GHz
Battery:	Removable, Swap Time ≤60s
Azimuth Accuracy:	10°(RMS)
Portability:	Handheld, Lightweight Design
Antenna:	Directional
Band Power:	50W+50W
Control Method:	Touch Screen
Display:	LED Status Indicators
Jamming Frequency Band:	900MHz, 1.5Ghz, 2.4Ghz, 5.8Ghz
Color:	Blue
Special Features:	Build "no Flying Zone"
Interference Distance:	200-1000M

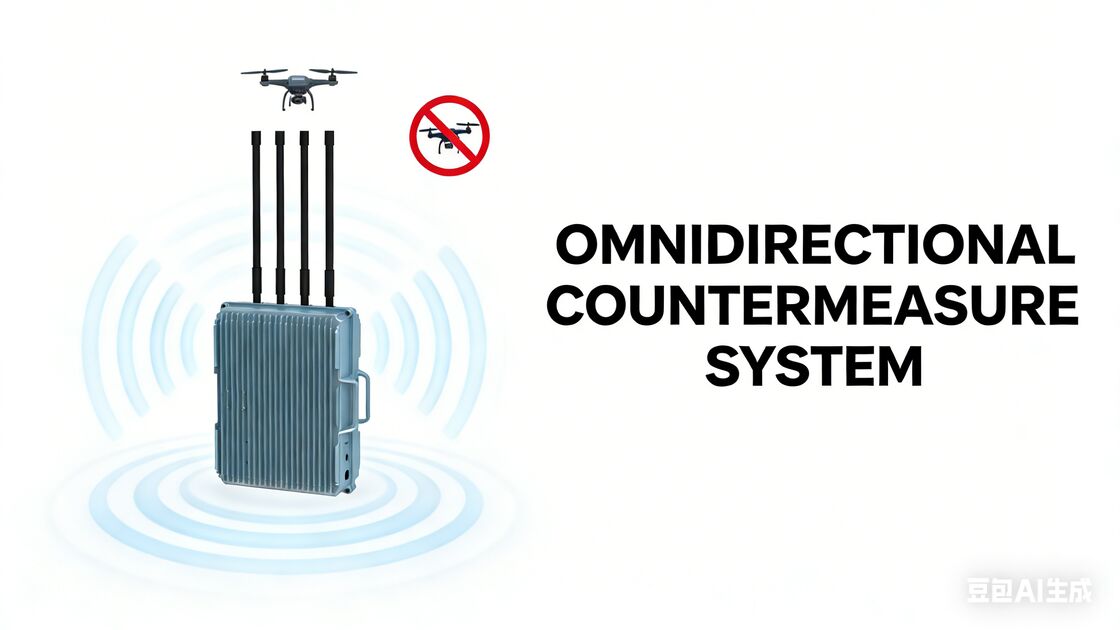

4G/5G/LAN Fixed Drone Omnidirectional Countermeasure Equipment

Unattended Design, Reducing Labor Costs:
The device is equipped with an unattended mode, which can realize the full-process automatic operation of automatic detection, automatic alarm and automatic jamming, without the need for manual 24-hour monitoring. After the device is started, it will continuously scan the surrounding low-altitude area. Once an unauthorized UAV signal is detected, it will immediately trigger the alarm mechanism and automatically start the jamming function to quickly interfere with the UAV signal and force it to return to home or land, without manual intervention throughout the process. This design greatly reduces labor input, especially suitable for key locations that require 24-hour monitoring such as airports, power plants and prisons, which not only improves prevention and control efficiency, but also reduces manual management costs.

4G/5G/LAN Fixed Drone Omnidirectional Countermeasure Equipment 0

JDY-400 Equipment
Feature	Description
Countermeasure Distance	1000~3000 meters
Key Countermeasure Frequency Bands	Remote control/video transmission: 2.4GHz, 5.8GHz, 900MHz; Navigation signals: Beidou/GPS/GLONASS/Galileo
Jamming Angle	Horizontal 360°, Vertical 90°
Countermeasure Response Time	≤6.5s
Power Supply Mode	AC220V converted to DC24V power supply
Communication Mode	Supports LAN networking (RJ45 interface); 4G/5G function: Optional
Protection Class	IP66
Equipment Availability	≥99.9%, capable of working for a long time without failure

Application Scenarios:

JDY-400 Equipment are widely used in multiple fields to address UAV threats:The JDY-400 System boasts a wide range of application scenarios across multiple fields, encompassing UAV (Unmanned Aerial Vehicle) patrol and countermeasures in low-altitude areas. These areas include VIP escort missions, special anti-riot operations, concerts, large-scale conferences and events, airport management, examination halls, prisons, installations, courts, meeting rooms, cinemas and theaters, hospitals, government agencies, financial institutions, churches, temples, libraries, business negotiations, gas stations, personal privacy protection sites, and other venues where quietness, confidentiality, and information security are required.

The system can work in coordination with radio detection equipment. This equipment provides intrusion information of target UAVs, such as intrusion direction, distance, and angle. The JDY-400 System then delivers precise strikes against target UAVs through omnidirectional radio jamming and countermeasures.

Additionally, the JDY-400 System is applicable to hazardous chemical parks (including those for petrochemicals and natural gas) as well as units with power usage restrictions. It can also be used in sports events, other types of activities, and industrial parks. Furthermore, it serves the security needs of key areas like vital points, airports, and petrochemical facilities. The system enables effective and timely UAV countermeasure disposal against unauthorized UAVs in low-altitude airspace, ensuring that parks, border defense zones, sports events, major activities, key areas, and important venues remain free from interference and threats.
Main Functions:

JDY-400 Equipment
Precise Jamming & Countermeasure
Adopts soft-kill technology with customizable frequency modules (GPS/Beidou, 2.4GHz, 5.8GHz, etc.). Achieves 360° omnidirectional electromagnetic interference to block UAVs' remote control, image transmission and navigation signals, forcing UAVs to return or land. The control platform automatically selects optimal countermeasures based on detection data and external factors; covers mainstream consumer UAVs (DJI series, Autel, etc.).

Networking & Grouping
Supports 4G/5G and LAN access for multi-device integrated networking and centralized management. Reserves data sharing interfaces to connect with external systems, meeting grid-based intelligent management needs.

Visual Monitoring & Air Situation Management
Tracks intruding UAV coordinates to form accurate trajectories; links with photoelectric tracking turntables for automatic target tracking and image acquisition (UAVs & payloads). Analyzes detection/identification/disposal info to form comprehensive air situations, formulates response plans, and sends intrusion notifications to relevant terminals.

Detection & Early Warning + Precise Positioning (Requires Radio Detection Equipment)
Compares detection signals with UAV spectrum databases to identify UAV type, brand, model and unique ID. Locates UAV (longitude/latitude, direction, distance) and pilot (remote controller position). Supports multi-UAV detection and real-time early warning via voice and warning lights.

Q1: Who are you, and what do you do?
A1: We are a R&D-driven high-tech company, specialized in the R&D, production and sales of signal amplifiers, wireless signal control systems, wireless signal countermeasure equipment, wireless signal blocking equipment, and explosion-proof jamming equipment.

Q2: Are you a manufacturer or a trading company?
A2: We are a manufacturer. Our factory is located in Yuhuatai District, Nanjing City, Jiangsu Province, and we welcome you to visit us.

Q3: Do you accept custom-made products?
A3: Yes, we can customize products according to customers' requirements, including different frequencies, power levels, sizes, as well as custom packaging and laser-engraved logos based on specific needs.

Q4: What about the delivery time?
A4: Generally speaking, the delivery time for regular order quantities is 1 to 3 months. However, for large orders, please confirm further details with us.

Q5: What about labels and logos?
A5: Custom labels and logos are available.

Q6: What is the minimum order quantity (MOQ)?
A6: The MOQ varies by product, ranging from 1 to 20 units.

Q7: What should I do if the received product is defective?
A7: Our strict quality control ensures a 100% qualification rate. However, products may get damaged during transportation. Please share photos or videos of the defective product to let us know the specific issue. We will provide compensation accordingly, or send you replacement parts or a new product. All purchased products come with a 1-year warranty and technical support.
