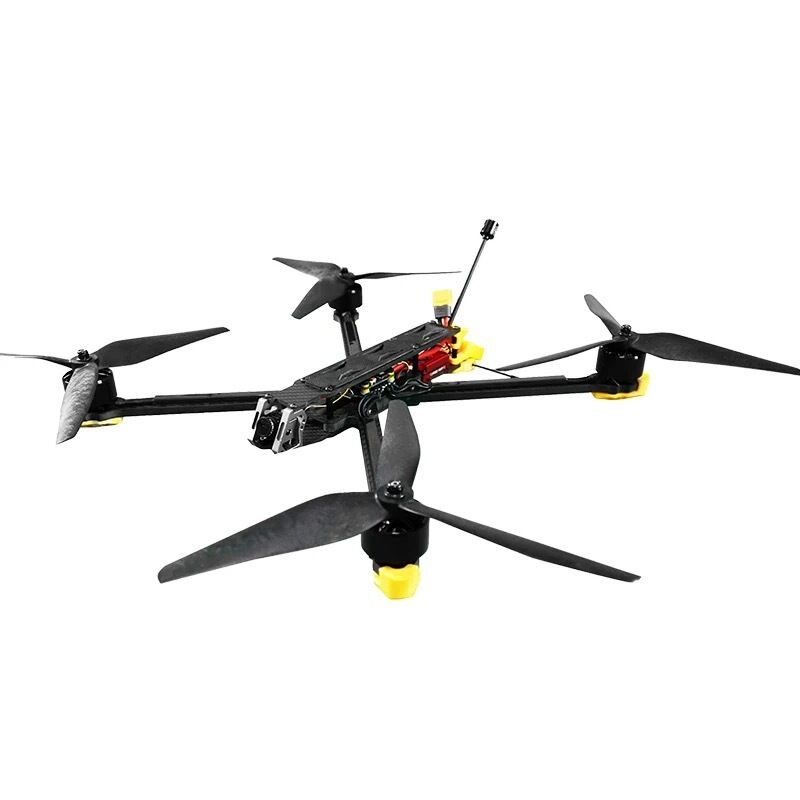

Customized FPV drone kit; ultra-long endurance quadcopter formation aircraft

Product Details

Place of Origin: China

Model Number: FBH-C13

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 1142

Packaging Details: Standard packaging

Delivery Time: 15days

Payment Terms: L/C

Supply Ability: 200 per month

Chat Now
Highlight:

35-minute flight time FPV drone

,

7KG payload capacity quadcopter

,

12K image transmission formation aircraft

Customized FPV drone kit; ultra-long endurance quadcopter formation aircraft

Extended Flight Endurance: 35-Minute Flight Time, Ideal for Long-Duration Operations

The customized FPV drone kit features an extended flight endurance design, allowing for up to 35 minutes of flight time per flight. This makes it ideal for extended operational tasks, whether aerial photography, monitoring, or other complex missions. The long flight time ensures operational continuity and efficiency. Compared to traditional drones, its significantly increased flight time greatly improves operational convenience and efficiency, reducing flight interruptions caused by battery replacements. Users can confidently perform various aerial operations during missions, improving job quality and work efficiency.

Customized FPV drone kit; ultra-long endurance quadcopter formation aircraft 0

Product Parameter Table

Aircraft Parameters

Parameter Value
Frame Structure Orthogonal × Type
Receiver 8K Diversity ELRS915
Frame Wheelbase 599mm
Camera 1200TVL, 165° Angle
Flight Controller AT32F435RGT7
GPS M10
Gyroscope ICM42688P
Propellers 13*9*3
OSD Chip AT7456E
Antenna 150mm, 5.8G, 2.8dBi
ESC 4-in-182A
Maximum Flight Speed 130km/h
Motors 4214 480KV Motors
Takeoff Weight 3600g
Maximum Remote Control Distance 12km
Maximum Payload 7kg
Battery 12000mAh, 8s, 7kg Payload Range: 12 minutes
Battery Straps 25mm*380mm, 2 pieces, Empty Range: 35 minutes
Maximum Image Transmission Distance 12km
Remote Controller T14 ELRS 915 1W

Remote Control Specifications

Parameter Value
Screen Size 2.42*OLED (Resolution 128*64)
TF Card Slot Chip-based (built-in)
Joystick Size Standard
Operating Voltage 6V-8.4V
Joystick Sensor Hall/RDC90
Voltage 21700*2
Built-in RF ELRS (915MHz/2.4GHz)
Dimensions 185*175*79mm
Transmit Power 1000mW
Weight 503g (excluding battery)
External Module Interface Standard JR compartment interface

FPV Eye Specifications

Parameter Value
Resolution 1024*768
Power Supply Voltage DC 6.5-2.52V/USB 5V
Field of View Aspect Ratio 38*4:3/16:9
Head Tracking 3-axis accelerometer, 3-axis gyroscope
Diopter Adjustment Range -6~+2 adjustable
Dimensions 185*75*67mm
Interpupillary Distance Adjustment Range 58-71mm, Weight 267g

7KG Payload Capacity, Enhancing Work Efficiency

This FPV drone can carry up to 7KG, providing users with greater load-bearing capacity, making it especially suitable for tasks requiring the carrying of heavy equipment or loads. Whether carrying cameras, sensors, or other specialized tools, it can fly stably, ensuring equipment safety during operations. The larger payload capacity allows the drone to complete a variety of complex tasks, significantly improving work efficiency, reducing the need for multiple flights, and making it suitable for long-duration, high-efficiency aerial operations.

12K Image Transmission, Ensuring Clear and Detailed Image Quality

The customized FPV drone is equipped with a 12K ultra-high-definition image transmission system, ensuring high-quality real-time image transmission. Even at long distances or in complex flight environments, it maintains image clarity and detail. This is crucial for professional shooting, monitoring, and inspection tasks. High-definition images help operators judge the flight status and surrounding environment in real time, ensuring operational accuracy and safety. 12K image transmission is not only suitable for daily use but also meets the high-demand needs of industries, providing a superior audio-visual experience.

Lightweight and Portable, with Voice-Activated High-Speed ​​Flight

Despite its powerful payload capacity and long battery life, the customized FPV drone maintains a lightweight design for easy carrying and operation. Users can easily pack it into a backpack for remote deployment. Furthermore, the drone supports voice broadcasting during flight, providing real-time feedback on flight status, mission progress, and other information, allowing operators to access crucial information without looking down at the screen. Its high-speed flight is also thanks to its excellent propulsion system, enabling rapid task completion, reducing work time, and meeting the demands of efficient work.
