Home > Products > Handheld Drone Jammer > Fiberglass omnidirectional WiFi antenna: 2.4G/5.8G high gain

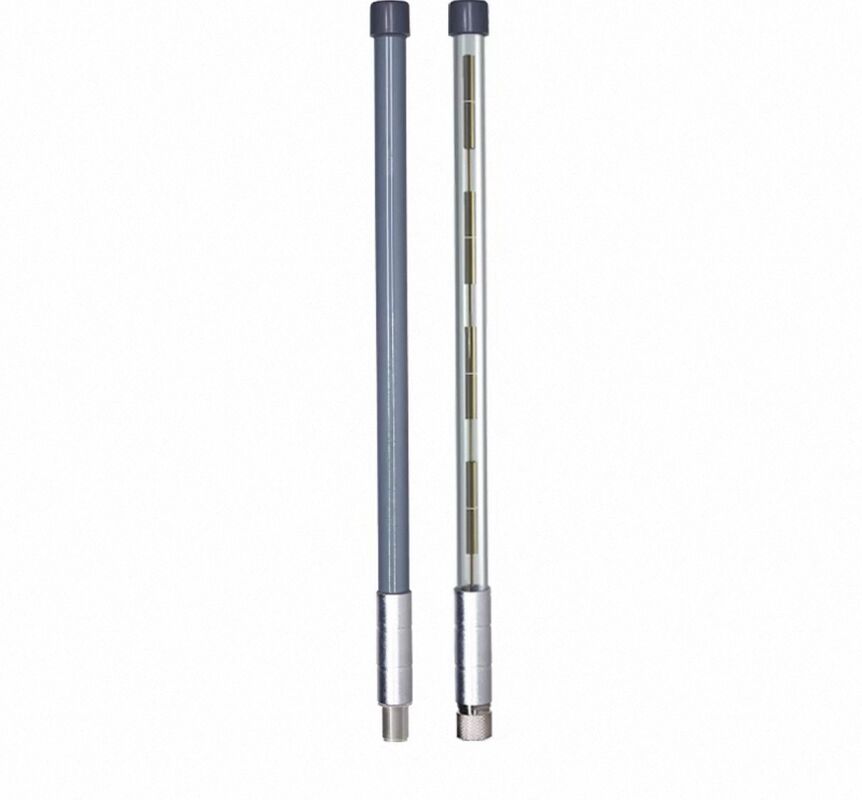

Fiberglass omnidirectional WiFi antenna: 2.4G/5.8G high gain

Product Details

Place of Origin: China

Model Number: 2.4G/5.8G glass antenna

Payment & Shipping Terms

Minimum Order Quantity: 20

Price: $15

Packaging Details: Regular packaging

Delivery Time: 3-7days

Payment Terms: Western Union

Supply Ability: 5000 per month

Chat Now
Highlight:

Dual-Band Support Fiberglass WiFi Antenna

,

High-Durability Fiberglass Omnidirectional Antenna

,

360° Omnidirectional Coverage Dual-Band Antenna

Fiberglass omnidirectional WiFi antenna: 2.4G/5.8G high gain

Dual-band support (2.4G & 5.8G) provides wider frequency compatibility.

This fiberglass omnidirectional WiFi antenna supports dual bands (2.4GHz and 5.8GHz), meeting the diverse needs of modern home and business users. The 2.4GHz band offers better penetration, suitable for wider coverage, especially in environments with many walls or devices. The 5.8GHz band provides higher data transmission speeds and reduces interference, ideal for high-speed data transfer needs. Dual-band support allows this antenna to simultaneously address both distance and speed requirements, providing a more stable network connection. Whether for home entertainment, office use, or devices requiring high bandwidth, it enables efficient data transmission.

Fiberglass omnidirectional WiFi antenna: 2.4G/5.8G high gain 0

Product Specifications
Frequency Range  2400-2500MHz, 5725-5850MHz
Maximum Power 50W
Antenna Bandwidth  100/125MHz
Connector Type NJ/NK
VSWR  <1.5
Antenna Material  Fiberglass/Copper
Beamwidth  Horizontal H360°, Vertical V58.8°
Polarization  Vertical Polarization
Operating Temperature  -40℃~85℃
Radiation Direction  360° Omnidirectional
Maximum Pole Diameter  ɸ52
Input Impedance  50Ω
Clamp Weight 0.24

5.8G Total Length and Weight 2.4G Antenna Total Length and Weight
Gain Dimensions Weight Gain Dimensions Weight
6 ɸ 1.85*33 0.125 3 ɸ1.85*30 0.124
8 ɸ1.85*33 0.18 6 ɸ1.85*33 0.24
10 ɸ1.85*43 0.224 8 ɸ1.85*54 0.266
12 ɸ1.85*57 0.283 10 ɸ1.85*92 0.38



12 ɸ1.85*120 0.39
Dual-band 2.4G/5.8G antenna total length and weight (wideband)
Gain       Dimensions           Weight Gain      Dimensions      Weight
3/4 1.85*21 0.103 4/7 1.85*33 0.13
Total length and weight of dual-band 2.4G/5.8G antenna
Gain          Dimensions            Weight
6/8 1.85*57 0.46
High-Durability Fiberglass Material, Suitable for Various Extreme Weather Conditions

This WiFi antenna uses high-durability fiberglass material, ensuring stable operation under various extreme weather conditions. Fiberglass has excellent corrosion resistance and UV resistance, so it can maintain long-term stability in harsh environments such as high temperature, low temperature, humidity, or strong winds. In addition, the lightweight and sturdy nature of fiberglass makes the antenna easier to install and prevents aging, damage, or performance degradation during long-term use, making it an ideal choice for outdoor environments.

Seamless Switching for Continuous and Stable Network Connection

This omnidirectional WiFi antenna features seamless switching capabilities, allowing it to switch between different frequency bands in real time to ensure a continuously stable network connection. Whether switching to the 2.4GHz band in areas with weaker signals or to the 5.8GHz band for high-speed data transmission, the antenna ensures a stable connection without interruptions or delays. This seamless switching makes the antenna ideal for scenarios requiring high-reliability connections, such as home theaters, remote work, and smart homes, preventing frequent disconnections or unstable signals.

Omnidirectional Antenna Design for 360-Degree Uniform Coverage

The antenna utilizes an omnidirectional design, providing uniform signal coverage in all directions (360 degrees). This means that regardless of the device's location relative to the antenna, the signal strength remains consistent, avoiding the signal weakening issues of traditional directional antennas in certain directions. The omnidirectional design is particularly suitable for large areas or environments with multiple devices connected simultaneously, ensuring stable network signals in every corner and significantly improving the network experience. Whether in a large yard, a spacious office, or a multi-story house, this antenna provides balanced signal coverage to meet diverse network needs.

Fiberglass omnidirectional WiFi antenna: 2.4G/5.8G high gain 1
