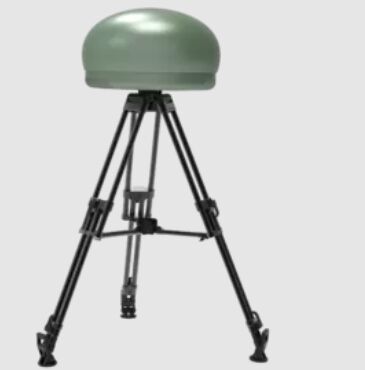

High-efficiency and precise fixed anti-drone direction finding equipment

Product Details

Place of Origin: China

Brand Name: JDY

Model Number: JDY-800

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $28571

Packaging Details: flight case

Delivery Time: 30days

Payment Terms: T/T

Supply Ability: 200 per month

Chat Now
Highlight:

Multi-Band Detection Fixed Anti-Drone Equipment

,

Corrosion Resistant Direction Finding Equipment

,

High-Temperature Resistant Handheld Drone Jammer

High-efficiency and precise fixed anti-drone direction finding equipment

Overview of Highly Efficient and Precise Targeted Anti-Drone Equipment

With the rapid development of drone technology, drones are increasingly widely used in military, commercial, and other fields. However, this has also brought about security risks due to drone misuse. To effectively address these threats, highly efficient and precise targeted anti-drone equipment has emerged. This type of equipment employs advanced signal detection and countermeasure technologies, enabling efficient and accurate directional positioning across different frequency bands, helping users quickly identify and locate drones. Its outstanding performance in multi-frequency band detection capabilities, stable operation in extreme environments, and durability makes it an important tool for protecting critical areas and locations.

Supports Multi-Band Detection, Countering Various Drone Types

Highly efficient and precise targeted anti-drone equipment possesses powerful frequency band detection capabilities. The equipment supports detection across multiple frequency bands, such as L-band and S-band, allowing for precise detection and positioning of different types of drones. These frequency bands typically correspond to different drone communication and control signals, enabling the equipment to cover the operating frequencies of most common drones on the market. Whether small drones, large drones, or civilian and military drones, they can all be effectively detected and jammed by this equipment, achieving precise countermeasures and ensuring the integrity of the safe zone.

Product Parameter Table

Parameter Description
Effective Detection Range ≥3km, Target Power Not Less Than 25dBm
Radio Detection Frequency Range 300MHz~6GHz
Direction Finding Frequency 915MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Range Azimuth Angle 0°~360°
Direction Finding Accuracy ≤5° (RMS)
Power Consumption ≤120W
Communication Method RJ45 Interface Communication, TCP Protocol
Protection Rating IP65
Operating Temperature -30℃~55℃
Weight ≤16kg
Decoy Signal System Dimensions: Diameter ≤590mm, Height ≤320mm

Regular Operation Training and Technical Enhancement Courses

To ensure users can master the operation and use of the equipment, the manufacturer of this efficient and accurate directional anti-drone equipment provides regular operation training and technical enhancement courses. Through these courses, users can gain a deep understanding of the equipment's functions, operating procedures, and maintenance knowledge. At the same time, the manufacturer also provides personalized training services tailored to the needs of different customers. This regular training not only helps users improve their operational skills but also equips them with the latest technologies and countermeasures, enhancing the overall effectiveness of the equipment.

Reliable Performance in Extreme Environments

The highly efficient and precise directional anti-drone equipment has undergone rigorous testing and can operate stably under extreme environmental conditions. Whether in high or low temperatures, or in harsh weather conditions such as humidity, the equipment maintains high-efficiency detection and countermeasure capabilities. This reliability makes the equipment extremely valuable in military bases, critical facilities, and disaster areas where 24/7 security is required.

Corrosion-Resistant and High-Temperature Resistant Materials Ensure Long-Term Use

To ensure the equipment remains unaffected by external environmental factors during long-term use, it utilizes corrosion-resistant and high-temperature resistant materials. Whether at the seaside, in the desert, or in high-temperature and high-humidity environments, the equipment's outer shell and internal components can withstand corrosive substances, salt spray, and extreme temperature changes, ensuring the equipment's stability and durability. Using this material not only extends the equipment's lifespan but also significantly reduces maintenance costs, making it an ideal choice for long-term investment.
