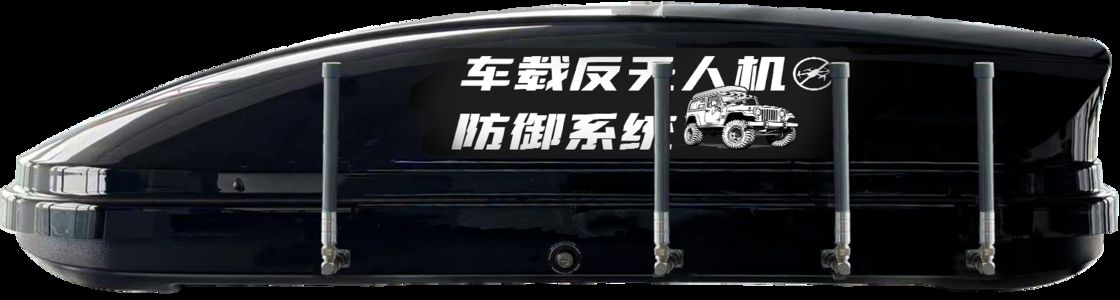

Vehicle-mounted anti-drone positioning and jamming integrated system

The vehicle-mounted anti-UAV positioning and jamming integrated system integrates radio frequency detection, signal analysis, and intelligent identification algorithms, supporting real-time monitoring and positioning of multi-band signals from mainstream UAV communication, navigation, and image transmission. The system can automatically distinguish UAV models, protocol characteristics, and flight status, combining direction finding and position fusion algorithms to achieve rapid target locking and trajectory analysis, providing reliable data for subsequent handling.

The system adopts a highly modular architecture design, standardizing and integrating detection, positioning, jamming, and control units. It can be flexibly combined according to vehicle type and mission requirements. Modules support quick disassembly and plug-and-play, significantly reducing installation and maintenance costs. It is suitable for various vehicle-mounted platforms such as patrol cars and command vehicles.

In vehicle-mounted security patrol scenarios, the system can be linked with patrol missions to effectively jam and suppress illegal drones entering the restricted area, blocking their communication or navigation capabilities, forcing them to return or land, thereby ensuring airspace security for key areas, convoy travel, and temporary operations.

The system features a user-friendly interface that supports touch and quick control. The interface information is intuitive and clear, displaying real-time drone alarms, location results, and handling status. The operation process is simple and can be mastered after basic training, meeting the rapid response needs of personnel in complex environments.
