High-efficiency VCOPA860T 920MHz 50W power amplifier module

Product Details

Place of Origin: China

Brand Name: jindowin

Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Model Number: VCOPA860T920MHz 50W power amplifier module

Payment & Shipping Terms

Minimum Order Quantity: 20

Price: $228

Packaging Details: Cardboard packaging

Delivery Time: 3-5days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 5000 per month

Chat Now
Highlight:

920MHz power amplifier module

,

50W drone jammer module

,

VCOPA860T power amplifier

High-efficiency VCOPA860T 920MHz 50W power amplifier module

920 MHz Band: Designed for High-Efficiency Transmission

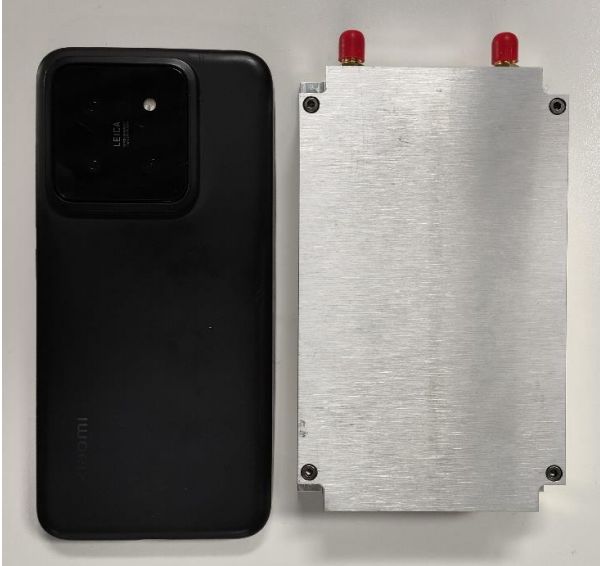

High-efficiency VCOPA860T 920MHz 50W power amplifier module 0

Technical Specifications

Table 1 RF Technical Specifications

Test Items Specifications Remarks
Frequency Range 860~920MHz Built-in Frequency Source (VC0)
Maximum Output Power (dBm) >47 (dBm)
Power Stability (dB) ±1.5@-25℃~+60℃
Operating Ambient Temperature (°C) -25~+55℃
Power Supply Requirements ≤4A@+28Vdc
Protection Output Open Circuit No Damage
Output Connector SMA-Female
Module Dimensions 110x47x18mm

Module Reliability Testing

High and Low Temperature Tests

  1. Low Temperature Test

    • a) The RF module should be installed in its normal configuration (i.e., fully assembled according to the normal installation structure), and placed in the test chamber while operating normally;
    • b) The test chamber temperature should be stable at -25℃;
    • c) After the temperature inside the test chamber stabilizes, continue the test for 2 hours, then power on the RF module and test the maximum output power, frequency offset, and current parameters according to the technical requirements.

High Temperature Test

  • a) The RF module should be installed in its normal configuration (i.e., fully assembled according to the normal installation structure), and placed in the test chamber while operating normally;
  • b) The test chamber temperature should be stable at 55℃;
  • c) After the temperature inside the test chamber stabilizes, continue the test for 2 hours, then power on the device and test the maximum output power, frequency offset, and current parameters according to the technical requirements.

Module Aging Test

  1. The RF module should be installed in its normal configuration (i.e., fully assembled according to the normal installation structure), and placed on the aging rack while operating normally.
  2. After 48 hours of continuous aging, perform routine parameter tests.

2 Interface Definitions

2.1 Power Interface Definition of the Module

Port Identifier Definition Remarks
N 28V Positive Power Supply 1. Amplifier is on by default, low level is off (optional)
9 GND Negative Power Supply 2. Amplifier is off by default, high level is on

ON/OFF Amplifier Switch TTL (optional)
TTL level H=2.5-5V, L=0-0.3V

2.2 RF Interface Definition of the Module

Port Identifier Definition Requirement Remarks
SMA-1 ANT PA Output SMA-50KFD
