Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-400
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $13960
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,D/A,D/P,L/C,Western Union,MoneyGram
Supply Ability: 200 per month
Product Name:
|
Jdy-400 Fixed Uav Omnidirectional Jamming System
|
Core Technology:
|
Omnidirectional Electromagnetic Suppression
|
Jamming Frequency Bands:
|
1.2g/1.5g/2.4G/5.2g/5.8g/433MHz/868MHz/900MHz
|
Transmission Power:
|
43dBm/Channel
|
Jamming Distance:
|
1~3km(Depends On Local Electromagnetic Environment
|
Jamming Angle:
|
360° Horizontal, 90° Vertical
|
Jamming Response Time:
|
≤2.5s; ≤6.5s (Partial Parameter Sources)
|
Simultaneous Interception Quantity:
|
≥10 Uavs
|
Power Supply:
|
AC220V Converted To DC24V
|
Working Time:
|
7×24 Hours Continuous Operation
|
Weight:
|
≤12kg (Excluding Tripod And Antenna)
|
Dimensions:
|
370mm×295mm×152mm
|
Operating Temperature:
|
-35ºC~50ºC
|
Protection Level:
|
IP66
|
Networking Method:
|
4G/5g (Optional), LAN (RJ45 Interface)
|
Product Name:
|
Jdy-400 Fixed Uav Omnidirectional Jamming System
|
Core Technology:
|
Omnidirectional Electromagnetic Suppression
|
Jamming Frequency Bands:
|
1.2g/1.5g/2.4G/5.2g/5.8g/433MHz/868MHz/900MHz
|
Transmission Power:
|
43dBm/Channel
|
Jamming Distance:
|
1~3km(Depends On Local Electromagnetic Environment
|
Jamming Angle:
|
360° Horizontal, 90° Vertical
|
Jamming Response Time:
|
≤2.5s; ≤6.5s (Partial Parameter Sources)
|
Simultaneous Interception Quantity:
|
≥10 Uavs
|
Power Supply:
|
AC220V Converted To DC24V
|
Working Time:
|
7×24 Hours Continuous Operation
|
Weight:
|
≤12kg (Excluding Tripod And Antenna)
|
Dimensions:
|
370mm×295mm×152mm
|
Operating Temperature:
|
-35ºC~50ºC
|
Protection Level:
|
IP66
|
Networking Method:
|
4G/5g (Optional), LAN (RJ45 Interface)
|

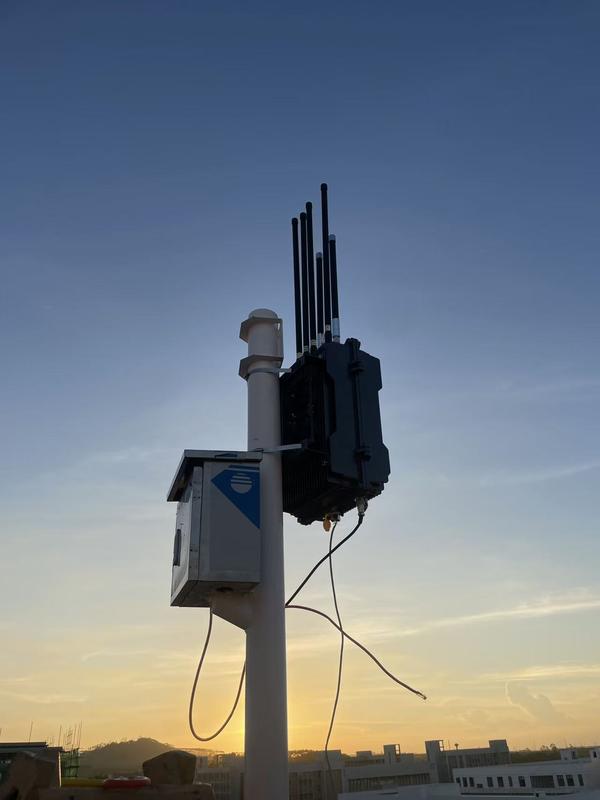

The Portable Drone Detector & UAV Omnidirectional Jammer is a highly effective countermeasure device designed specifically for security departments, key locations, and emergency response operations. Its portable design allows for rapid deployment to meet temporary or unexpected security needs. Its ease of operation makes it suitable for individual personnel and independent operations.
The device features built-in multi-band simultaneous jamming technology, covering remote control, image transmission, and navigation signals of common drones, effectively preventing "illegal" drones from breaching security lines. Its high-power omnidirectional jamming output enables simultaneous countermeasures against multiple target drones over a wide area, safeguarding no-fly zones and sensitive areas.
The device supports one-touch start and rapid response, with jamming activation time of less than one second, enabling immediate interception of intruding drones. Furthermore, the system boasts long-term stable operation, maintaining stable output power even in complex environments, ensuring continuous security.
With its powerful countermeasures and high maneuverability, the Portable Drone Detector & UAV Omnidirectional Jammer is widely used in government agencies, military and police security, major events, petrochemical plants, power facilities, airports, train stations and other key areas, providing a comprehensive protection solution for modern airspace security.
Attribute | Specification |
---|---|
Core Technology | Omnidirectional Electromagnetic Suppression |
Jamming Frequency Bands | 1.2G/1.5G/2.4G/5.2G/5.8G/433MHz/868MHz/900MHz |
Transmission Power | 43dBm/Channel |
Jamming Distance | 1-3km (varies by local electromagnetic environment) |
Jamming Angle | 360° Horizontal, 90° Vertical |
Response Time | ≤2.5s; ≤6.5s (partial parameter sources) |
Power Supply | AC220V converted to DC24V |
Operating Time | 24/7 continuous operation |
Dimensions | 370mm × 295mm × 152mm |
Weight | ≤12kg (excluding tripod and antenna) |
Temperature Range | -35°C to 50°C |
Protection Level | IP66 |
Networking | 4G/5G (optional), LAN (RJ45 interface) |
