Portable Handheld Drone Jammer 1-2km Jamming Distance For Military Use

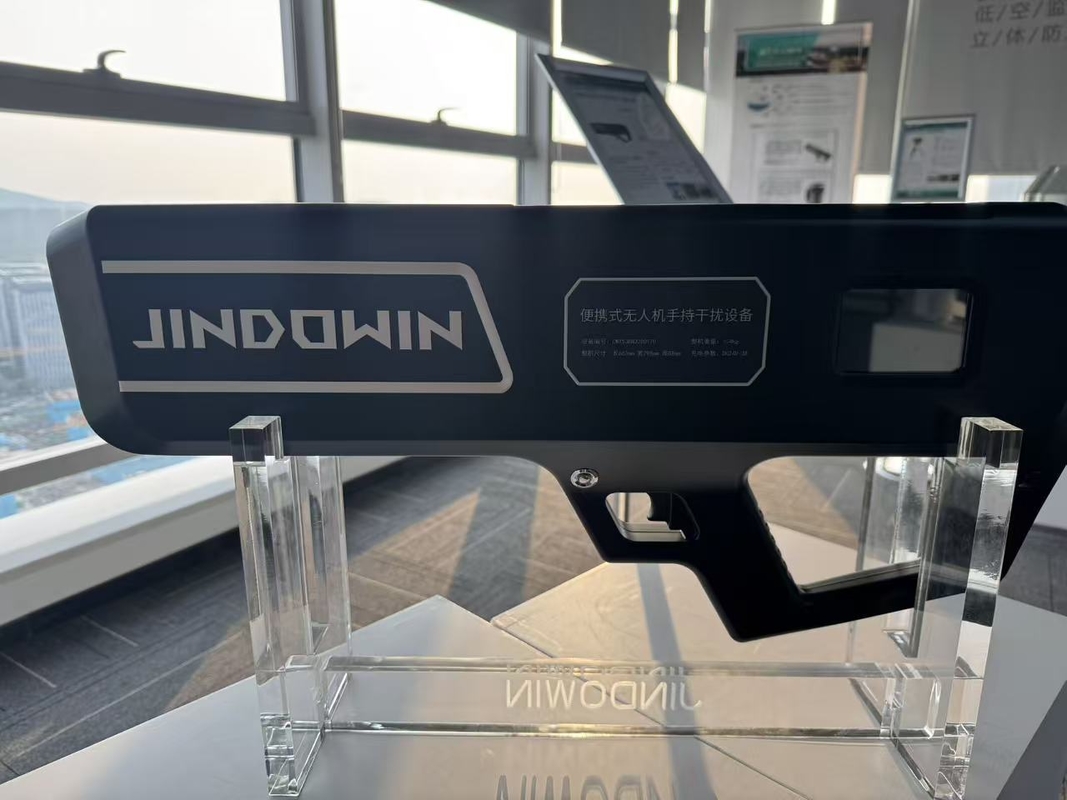

The JDY-200 Handheld Drone Jammer is a portable anti-drone device that transmits electromagnetic interference signals of a specific frequency, disrupting the drone's connection with the remote control or satellite navigation system, causing it to lose control, hover, return, or land. Ergonomically designed, the device is lightweight and easy to use, allowing for rapid deployment by a single soldier. It is widely applicable in security, law enforcement, military, and police operations.

This device effectively blocks the communication links and positioning signals of mainstream commercial drones, preventing them from engaging in illegal activities such as surreptitious photography, reconnaissance, and the transport of contraband. It can be used in sensitive areas such as airports, prisons, government agencies, energy facilities, and large-scale event venues, creating a low-altitude security barrier.

The device can be customized to meet user needs:

The jamming distance can be adjusted from hundreds of meters to several kilometers to meet the needs of different combat environments.

Interference frequency: covers common drone frequency bands such as 2.4GHz, 5.8GHz, GPS L1, and can be expanded to other frequency bands to deal with special drone models.

Modular design: supports customized power and battery configuration for flexible deployment.

Countermeasure distance

1~2km

Key countermeasure frequency bands

2.4G/5.8G/800MHz/900MHz/1.4G/1.6GHz

Interference angle

≥30°

Interference response time

≤2s

Power supply

built-in lithium battery

Interference function

available

Network function: 4G/5G function

optional

Protection level

IP65

Equipment availability

≥99.9%, can work for a long time without failure.

Q1: Is the device effective for all drones?

A: It is effective against most commercial drones, but some military or high-security drones may have anti-jamming capabilities and require higher power or multi-band extension.

Q2: What is the effective range of the device?

A: Depending on the model and power, handheld jammers have a range of 500 to 1500 meters, and customized models can extend this range.

Q3: Will it affect other wireless devices?

A: The device primarily interferes with drone communication and navigation bands. However, it is recommended that it be used away from other important wireless communication devices to avoid accidental interference.

Q4: Is it legal to use?

A: Laws vary from country to country. In some regions, the use of drone jammers requires permission from the government or relevant authorities, and users must comply with local regulations.

Q5: What happens to a drone after it is jammed?

A: Most drones will enter hovering, return-to-home, or auto-land mode. The specific response depends on the drone manufacturer's pre-programmed behavior.
