Handheld Drone Jammer with ≥40dBm Output Power ≥95W Total RF Power and 0°–60° Interference Angle

Name: Handheld Drone Jammer with ≥40dBm Output Power ≥95W Total RF Power and 0°–60° Interference Angle
Brand: Yunshang Jindou (Nanjing) Technology Co., Ltd
SKU: JDY-300G
Price: 8571 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Model Number: JDY-300G

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: ＄8571

Packaging Details: Flight Case

Delivery Time: 30 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 200 per month

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            lightweight drone anti gun, portable UAV countermeasure device, Android low altitude defense system


Frequency Range:	300–6000MHz (including 800/900/1.6G/2.4G/5.2G/5.8G)	Output Power:	≥40dBm
Total RF Power:	≥95W	Countermeasure Range:	≥1500m
Interference Angle:	0°–60° / -60°–+60°	Suppression Ratio (O2 Protocol):	≥20:1
Response Time:	≤2s	Power Supply:	Capacity ≥200Wh, Continuous Operation ≥90min
Charging Mode:	DC25.2V / 3A	Dimensions:	680×275×79mm
Weight:	≤4kg

Frequency Range:	300–6000MHz (including 800/900/1.6G/2.4G/5.2G/5.8G)
Output Power:	≥40dBm
Total RF Power:	≥95W
Countermeasure Range:	≥1500m
Interference Angle:	0°–60° / -60°–+60°
Suppression Ratio (O2 Protocol):	≥20:1
Response Time:	≤2s
Power Supply:	Capacity ≥200Wh, Continuous Operation ≥90min
Charging Mode:	DC25.2V / 3A
Dimensions:	680×275×79mm
Weight:	≤4kg

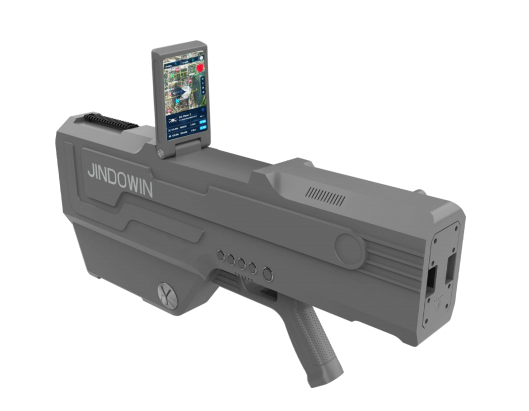

Handheld Drone Jammer with ≥40dBm Output Power ≥95W Total RF Power and 0°–60° Interference Angle

Handheld Drone Jamming Gun — Lightweight Positioning Edition (Android)

Introduction | JDY-300 Portable Drone Countermeasure Device (Positioning Version)

The JDY-300 is the first Android-based integrated "Edge-Cloud-Terminal" low-altitude drone defense product developed by Jindowin Technology. By disrupting drone communication links, image transmission links, and navigation signals, the JDY-300 effectively forces unauthorized UAVs to land or return.

It supports Remote ID technology, enabling the acquisition of UAV identity, position, and flight status. Through cloud connectivity, it can integrate with fixed-site drone defense systems, achieving coordinated and intelligent low-altitude control instead of traditional isolated operations.

The JDY-300 is widely used in military and police operations, urban critical infrastructure protection, large-scale event security, and special facility management.

Key Features

System-Level Smart Coordination

Supports 4G/5G network communication with cloud platform synchronization.
Enables real-time information sharing between command centers and field units.
Executes remote strike commands and returns operation results for closed-loop control ("Detect-Analyze-Control-Feedback").

Ultra-Lightweight and Portable Design

Total weight ≤ 5kg; main body ≤ 4kg.
All-in-one construction with no exposed cables.
Equipped with a portable carrying case; supports handheld or shoulder use.
One-button startup for instant deployment in field missions.

Long-Range Precision Suppression

Utilizes intelligent electromagnetic suppression technology.
Frequency coverage: 300MHz-6000MHz.
Effective countermeasure range: ≥2km (standard test ≥1.5km).
Signal-to-noise ratio (O2 protocol): ≥20:1, with response time ≤2s.
Effectively cuts UAV-ground communication, forcing drones to return or land.

Visualized and User-Friendly Operation

Built-in 5-inch foldable OLED Android screen displaying UAV and operator coordinates, power status, and strike mode.
Integrated offline HD satellite map with automatic device location marking (updated every three months or less).
Customizable frequency emission (300-6000MHz).
Adjustable voice alarm (≥3W) for deterrence.

Cloud-Based Intelligence

Supports remote monitoring via drone control platforms.
Cloud service enables multi-device coordination and remote strike authorization.
Real-time device status and geolocation visibility.

Technical Specifications

Category	Parameter	Specification
Frequency Range	Countermeasure Bands	300-6000MHz (including 800/900/1.6G/2.4G/5.2G/5.8G)
Output Power	ISM900 / GNSS L1 / ISM2400	≥40dBm
	ISM5800	≥41dBm
Total RF Power	--	≥95W
Countermeasure Range	Standard Test	≥1500m
	Field Operation	≥2km
Interference Angle	Horizontal / Pitch	0°-60° / -60°-+60°
Suppression Ratio (O2 Protocol)	--	≥20:1
Response Time	--	≤2s
Power Supply	Built-in Lithium Battery	Capacity ≥200Wh, continuous operation ≥90min
Charging Mode	Adapter	DC25.2V / 3A
Dimensions	Main Device	68027579mm
Weight	With Battery	≤4kg
Protection Level	Device Body	IP65 (dustproof, splash-proof)
Operating Temperature	Ambient Range	-20°C to +50°C (core parts up to +70°C)
Antenna	Wideband Log-Periodic	Vertical polarization, gain 9dBi
	5.8G Log-Periodic	Gain 16dBi
Display System	Screen	5-inch foldable OLED Android display (mode, target info, battery)
Map Function	Offline Satellite Map	Automatic device positioning, update every three months or less
Networking	Communication	Built-in 4G, supports UAV management platform
Voice Alarm	Customizable	≥3W power
Design	Structure	All-in-one, no external cables, shockproof transport case

FAQ

Q1: What types of drones can the JDY-300 counter?

A1: It can suppress most mainstream multi-rotor, fixed-wing, and FPV drones operating between 300MHz and 6000MHz.

Q2: What is the maximum effective range?

A2: In standard environments, ≥1.5km; in open areas, up to ≥2km.

Q3: Can one person operate the device?

A3: Yes. The JDY-300 features a one-button operation and visualized interface for easy, rapid deployment by a single operator.

Q4: Does it support cloud networking and system collaboration?

A4: Yes. It connects with fixed defense systems and the cloud platform for coordinated multi-point control.

Q5: How long does the built-in battery last?

A5: ≥90 minutes of continuous operation with a 200Wh lithium battery; extendable with a spare battery.

Q6: What is the protection level?

A6: IP65-rated for dust and splash resistance, suitable for outdoor field conditions.

Q7: Can the device work without an internet connection?

A7: Yes. It includes an offline HD satellite map and can automatically mark its own location for offline operations.
