Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-Remote ID
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 200 per morth

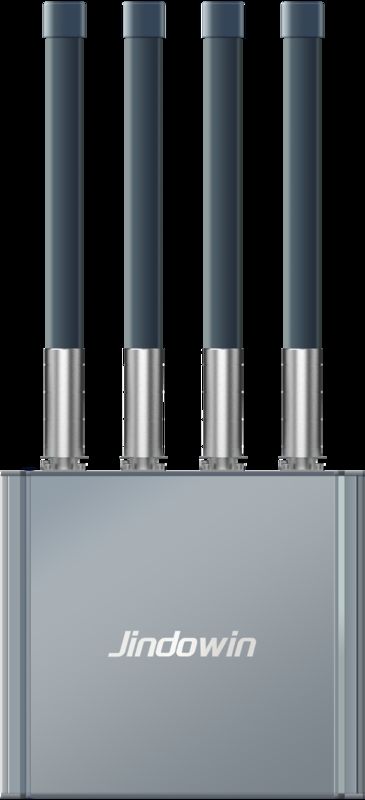

The integrated unmanned aerial vehicle information monitoring device is a specialized system for identifying legitimate UAVs and receiving location information broadcasts, designed for UAV supervision and security management. It accurately locates both drones and their pilots while simultaneously monitoring all UAV targets within its detection radius.
The Remote ID system has extensive applications across multiple sectors:
Parameter | Value |
---|---|
Detection frequency | 300MHz~6000MHz |
Key detection frequency band | 2.4G/5.8G/900MHz/1.1G/1.4GHz |
Coverage angle | 360° |
UAV positioning accuracy | ≤5m |
Detection distance | 1-3km |
Key countermeasure frequency band | 2.4G/5.8G/800MHz/900MHz/GNSS/5.2Ghz |
Interference angle | ≥30° |
Interference response time | ≤2s |
Power supply | AC220V to DC24V DC power supply |
Networking function | 4G/5G/LAN function: Optional |
Protection level | IP65. Device Availability: ≥99.9%, ensuring long-term, trouble-free operation. |
