Product Details
Place of Origin: China
Brand Name: jindowin
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-300G
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $8571
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
|
Product Name:
|

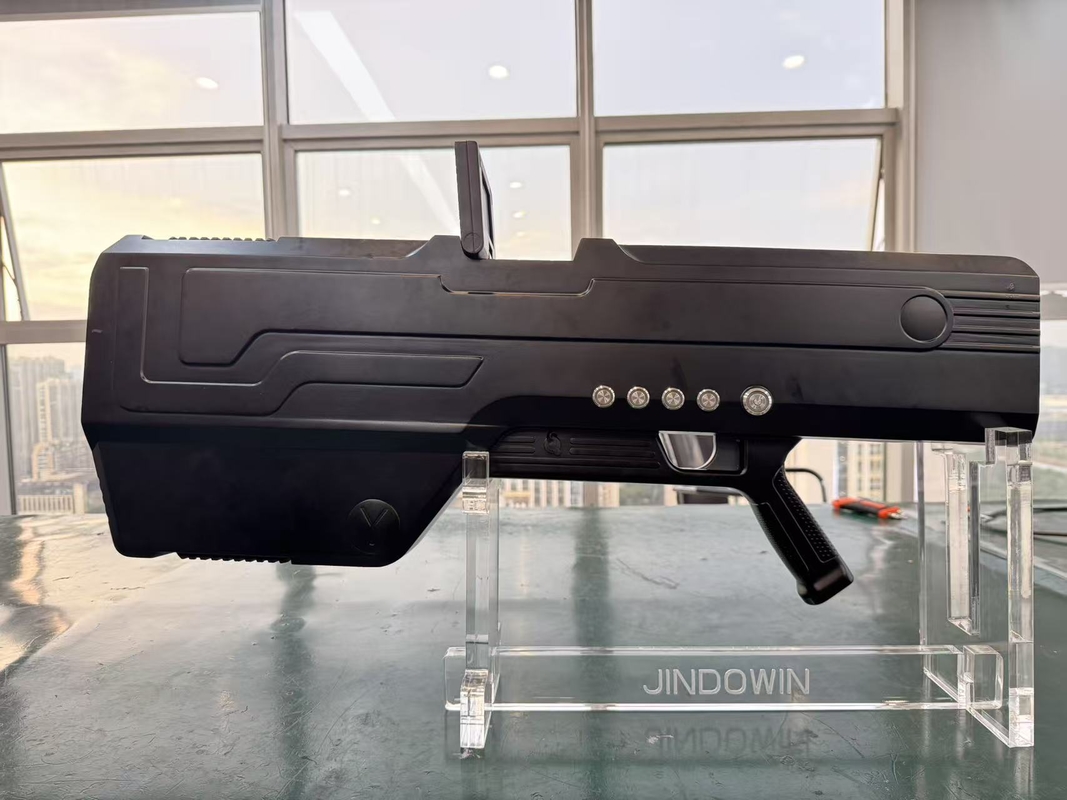

Jdy-300g Portable Uav Detection, Jamming & Decepti
|
Core Tech:
|
Passive Detection, Electromagnetic Suppression, Na
|
Detection Freq:
|
1~5km (Depends On Electromagnetic Environment)
|
Deception Dist:
|
0~3000m (Adjustable)
|
Jamming Freq:
|
800MHz~6000MHz
|
Jamming Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Power Supply:
|
Built-in Lithium Battery (29.2V/29.4V)
|
Weight:
|
≤6kg (Basic/Flagship), ≤8kg (Upgraded)
|
Protection Level:
|
IP65
|
Display:
|
3.1"/5" Anti-Glare Touchscreen (Foldable)
|
Networking:
|
4G/5g/LAN (Optional)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Battery:
|
Removable, Swap Time ≤60s
|
Detection Angle:
|
Horizontal 360°, Vertical -90°~+90°
|
Positioning Accuracy:
|
≤5m (Protocol Analysis)
|
|
Product Name:
|
Jdy-300g Portable Uav Detection, Jamming & Decepti
|
|
Core Tech:
|
Passive Detection, Electromagnetic Suppression, Na
|
|
Detection Freq:
|
1~5km (Depends On Electromagnetic Environment)
|
|
Deception Dist:
|
0~3000m (Adjustable)
|
|
Jamming Freq:
|
800MHz~6000MHz
|
|
Jamming Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
|
Power Supply:
|
Built-in Lithium Battery (29.2V/29.4V)
|
|
Weight:
|
≤6kg (Basic/Flagship), ≤8kg (Upgraded)
|
|
Protection Level:
|
IP65
|
|
Display:
|
3.1"/5" Anti-Glare Touchscreen (Foldable)
|
|
Networking:
|
4G/5g/LAN (Optional)
|
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
|
Battery:
|
Removable, Swap Time ≤60s
|
|
Detection Angle:
|
Horizontal 360°, Vertical -90°~+90°
|
|
Positioning Accuracy:
|
≤5m (Protocol Analysis)
|
Compatible with both handheld and vehicle-mounted power supplies. This system is designed with practical application in mind, supporting flexible power solutions: it can be connected to a lightweight handheld battery pack for mobile deployment by a single soldier; or it can be directly connected in parallel to a high-power vehicle-mounted power supply to meet the needs of police cars and command vehicles for long-term patrols and high-speed tracking missions. The power management module features automatic switching and overload protection to ensure that detection and countermeasure capabilities are not affected during switching.
| Parameter | Value |
|---|---|
| Detection frequency | 300MHz~6000MHz |
| Key detection frequency band | 2.4G/5.8G/900MHz/1.1G/1.4GHz |
| Coverage angle | 360° |
| UAV positioning accuracy | ≤5m |
| Detection distance | 1-3km |
| Minimum detection altitude | 0m |
| Countermeasure distance | 1~2km |
| Key countermeasure frequency band | 2.4G/5.8G/800MHz/900MHz/GNSS/5.2Ghz |
| Interference angle | ≥30° |
| Interference response time | ≤2s |
| Power supply | Built-in lithium battery |
| Detection, identification, positioning, and interference functions | Available |
| Networking function | 4G/5G function: Optional |
| Protection level | IP65. Device Availability: ≥99.9%, ensuring long-term, trouble-free operation. |
The system employs high-performance signal processing and a dedicated FPGA/ASIC accelerator to achieve millisecond-level target detection and identification. Combined with preset countermeasure strategies, operators can complete locking, tracking, and command output within seconds through a one-click rapid deployment interface, greatly shortening the time window from detection to response, making it suitable for emergency response to sudden airspace intrusions.
To ensure long-term continuous operation, the equipment employs a composite heat dissipation design combining active air cooling and heat pipes, and incorporates temperature sensors and intelligent adjustment algorithms in key modules. Under high load or high temperature environments, it automatically reduces frequency and optimizes task priorities, extending continuous operation capability while preventing performance degradation or malfunctions caused by overheating.
We provide comprehensive on-site deployment, commissioning, and training services, including on-site environmental assessment, antenna orientation, system integration testing, and tactical drills. We also provide regular maintenance, software upgrades, and spare parts replacement services as needed to ensure the system maintains high availability and up-to-date protection capabilities during long-term use.
