Product Details
Place of Origin: China
Brand Name: jindowin
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-600A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $17143
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/P,D/A,Western Union,MoneyGram
Supply Ability: 200 per month
|
Features:
|
Portable, Lightweight, Easy To Use
|
Product Name:
|
Jdy-600b Wrist Uav Countermeasure Equipment
|
Core Tech:
|
Electromagnetic Suppression, Navigation Deception
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8g/800MHz/900MHz/1.4G/1.6g/5.2GHz
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Jamming Bands:
|
902-928MHz/2.4-2.4835GHz/5.15-5.25GHz/5.8GHz
|
Jamming Dist:
|
≥1.5km; 1~2km (Partial Versions)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
≥1km (with Directional Antenna)
|
Power Supply:
|
AC220V→DC24V, 29.4V Lithium Battery
|
Weight:
|
≤11kg (Backpack Part); ≤15kg (Total)
|
Operating Temp:
|
-20ºC~50ºC; -35ºC~75ºC(Partia)
|
Protection Level:
|
Ipx1 (Customizable); IP66 (Partial)
|
Control Mode:
|
Wristwatch Terminal (Touch, Vibration Alert)
|
Alarm Mode:
|
Audible/Visual (Adjustable)
|
Antenna Rotation:
|
360 Degrees
|
Additional Accessories:
|
Antennas, Battery Charger, Carrying Case
|
Waterproof Level:
|
IP65
|
Core Technology:
|
Ultra-High-Speed Frequency Sweeping
|
Jamming Modes:
|
5 Modes (customizable)
|
Detection Frequency Range:
|
300MHz~6000MHz
|
Product Type:
|
Sportswear
|
Application:
|
Drone Interference
|
Working Hours:
|
30 Mins (duration Of Launch)
|
Power Output:
|
30W
|
Year Built:
|
2017
|
|
Features:
|
Portable, Lightweight, Easy To Use
|
|
Product Name:
|
Jdy-600b Wrist Uav Countermeasure Equipment
|
|
Core Tech:
|
Electromagnetic Suppression, Navigation Deception
|
|
Detection Freq:
|
300MHz~6000MHz
|
|
Key Detection Bands:
|
2.4G/5.8g/800MHz/900MHz/1.4G/1.6g/5.2GHz
|
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
|
Jamming Bands:
|
902-928MHz/2.4-2.4835GHz/5.15-5.25GHz/5.8GHz
|
|
Jamming Dist:
|
≥1.5km; 1~2km (Partial Versions)
|
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
|
Deception Dist:
|
≥1km (with Directional Antenna)
|
|
Power Supply:
|
AC220V→DC24V, 29.4V Lithium Battery
|
|
Weight:
|
≤11kg (Backpack Part); ≤15kg (Total)
|
|
Operating Temp:
|
-20ºC~50ºC; -35ºC~75ºC(Partia)
|
|
Protection Level:
|
Ipx1 (Customizable); IP66 (Partial)
|
|
Control Mode:
|
Wristwatch Terminal (Touch, Vibration Alert)
|
|
Alarm Mode:
|
Audible/Visual (Adjustable)
|
|
Antenna Rotation:
|
360 Degrees
|
|
Additional Accessories:
|
Antennas, Battery Charger, Carrying Case
|
|
Waterproof Level:
|
IP65
|
|
Core Technology:
|
Ultra-High-Speed Frequency Sweeping
|
|
Jamming Modes:
|
5 Modes (customizable)
|
|
Detection Frequency Range:
|
300MHz~6000MHz
|
|
Product Type:
|
Sportswear
|
|
Application:
|
Drone Interference
|
|
Working Hours:
|
30 Mins (duration Of Launch)
|
|
Power Output:
|
30W
|
|
Year Built:
|
2017
|

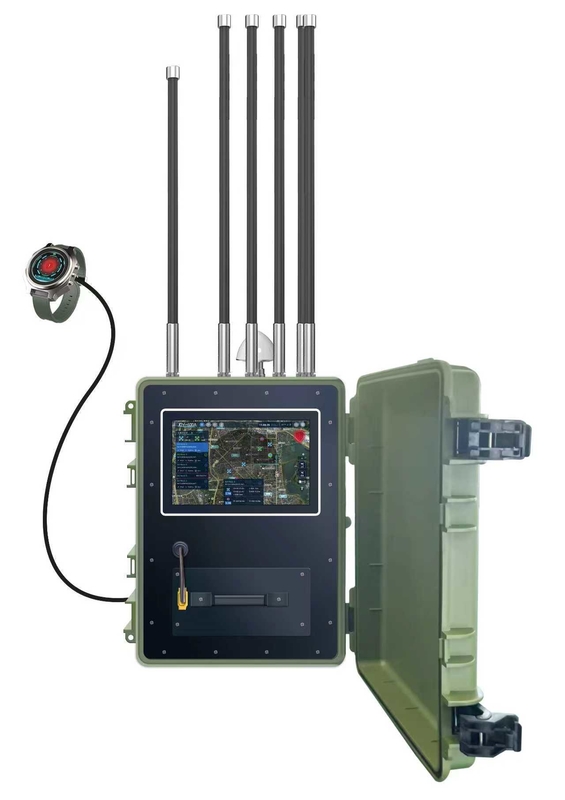

The Wearable Drone Signal Monitoring Backpack is a high-efficiency device specifically designed for monitoring drone signals, particularly suitable for various types of drone monitoring needs. Its main function is to effectively capture signals in the 902–928 MHz frequency range by detecting and precisely locating the drone's signal source in real time. This backpack system utilizes advanced radio spectrum analysis technology to monitor and lock onto the drone's flight path and location in real time, providing users with accurate alerts. Whether in urban environments, border patrols, or large-scale event security, it can accurately identify potential drone threats and ensure safety.
![]()
| Parameter Name | Specification Value |
|---|---|
| Signal Monitoring Frequency Band | 902–928 MHz |
| Applicable Environment | Various complex indoor and outdoor environments |
| Signal Detection Accuracy | ±2 meters |
| Data Transmission Method | Wireless data transmission (Wi-Fi/Bluetooth) |
| Operating Temperature Range | -20°C ~ 50°C |
| Battery Life | 6 hours (continuous working mode) |
| Supported Devices | Can monitor up to 8 drone signals simultaneously |
| Dimensions | 40cm x 30cm x 10cm |
| Weight | 3.5 kg |
| Operating Interface | High-definition touchscreen display |
This wearable drone signal monitoring backpack is designed for ease of use. Users do not need complex equipment configurations or lengthy learning of the user manual. The backpack's operating interface allows users to easily view real-time signal data and alarm information via the touchscreen. The system uses an automatic scanning mode; once activated, the backpack automatically begins detecting drone signals within the specified frequency band and updates the location in real time based on signal strength and source. Even those without technical backgrounds can quickly master the operation, ensuring effective drone monitoring anytime, anywhere.
This backpack is particularly suitable for organizations with high security requirements, such as government departments, the military, and security agencies. It effectively prevents illegal drone flights, especially in important political, military, or public security situations, enabling early detection and interception of potential drone threats. The backpack's high-precision positioning and real-time alarm system greatly facilitate law enforcement and security personnel, allowing them to react promptly when drones enter no-fly zones or high-risk areas, protecting personnel and facilities.
The Wearable Drone Signal Monitoring Backpack boasts powerful multi-signal monitoring capabilities, supporting the simultaneous monitoring of multiple drone signal sources. The system can display signal information from multiple drones on a single interface, accurately capturing detailed parameters such as the strength, frequency band, and location of each signal. This function allows users to effectively track the flight paths of multiple drones, determining their flight routes and potential threats. This feature is especially important in complex environments, helping security personnel accurately identify multiple targets and providing a basis for emergency response.
