Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-300T
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: ＄16750
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
|

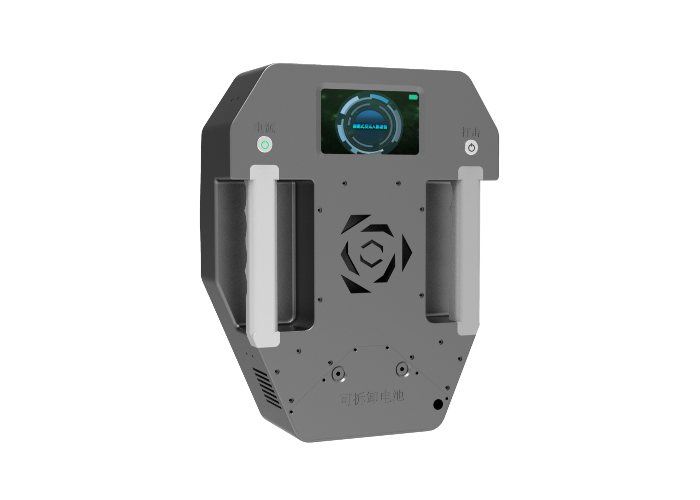

Product Name:
|
Portable Uav Detection And Jamming Shield Shie
|
Core Technology:
|
Ultra-High-Speed Frequency Sweeping
|
Detection Frequency Range:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8g/900MHz/1.1g/1.4GHz/5.2g (Customizable)
|
Detection Distance:
|
1~3km (Depends On Local Electromagnetic Environmen
|
Detection Angle:
|
360° Horizontal, -90°~+90° Pitch
|
Positioning Accuracy:
|
≤5m (Protocol Analysis)
|
Jamming Bands:
|
800MHz/900MHz/1.4GHz/1.6GHz/2.4GHz/5.8GHz
|
Jamming Distance:
|
1~2km (Urban Environment)
|
Jamming Angle:
|
90° Horizontal, 20°~40° Vertical
|
Jamming Response Time:
|
≤2.5s; ≤2s (Partial Versions)
|
Jamming Modes:
|
Repel, Forced Landing, Navigation Interference
|
Power Supply:
|
Built-in Lithium Battery (24V/29.2V/29.4V)
|
Weight:
|
≤4kg (Partial); ≤5kg; ≤6kg
|
Operating Temperature:
|
-20ºC~50ºC
|
|
Product Name:
|
Portable Uav Detection And Jamming Shield Shie
|
|
Core Technology:
|
Ultra-High-Speed Frequency Sweeping
|
|
Detection Frequency Range:
|
300MHz~6000MHz
|
|
Key Detection Bands:
|
2.4G/5.8g/900MHz/1.1g/1.4GHz/5.2g (Customizable)
|
|
Detection Distance:
|
1~3km (Depends On Local Electromagnetic Environmen
|
|
Detection Angle:
|
360° Horizontal, -90°~+90° Pitch
|
|
Positioning Accuracy:
|
≤5m (Protocol Analysis)
|
|
Jamming Bands:
|
800MHz/900MHz/1.4GHz/1.6GHz/2.4GHz/5.8GHz
|
|
Jamming Distance:
|
1~2km (Urban Environment)
|
|
Jamming Angle:
|
90° Horizontal, 20°~40° Vertical
|
|
Jamming Response Time:
|
≤2.5s; ≤2s (Partial Versions)
|
|
Jamming Modes:
|
Repel, Forced Landing, Navigation Interference
|
|
Power Supply:
|
Built-in Lithium Battery (24V/29.2V/29.4V)
|
|
Weight:
|
≤4kg (Partial); ≤5kg; ≤6kg
|
|
Operating Temperature:
|
-20ºC~50ºC
|
Full-band coverage: Supports detection and jamming of 2.4GHz, 5.8GHz, 900MHz, and GPS/Beidou navigation signals, comprehensively addressing mainstream drone threats.
Long-range detection: Utilizing highly sensitive antennas and algorithms, the system achieves detection ranges up to several kilometers, providing early warning of drone intrusions.
Directional jamming technology: The system precisely strikes specific drone targets, avoiding interference from irrelevant signals.
Multi-scenario applicability: Suitable for key locations such as government offices, prisons, airports, oil fields, and sports venues.
Intelligent linkage: Supports linkage with fixed defense systems to establish a comprehensive low-altitude safety network.
| Detection Frequency Band: | 300MHz - 6000MHz |
| Interference Frequency Band: | 2.4G / 5.8G / 900MHz / 1.6G / 1.4G |
| Detection Distance: | ≥3000m (open space, no electromagnetic interference) |
| Interference Distance: | ≥2000m (open space, no electromagnetic interference) |
