3km Range Backpack Drone Jammer 300MHz-6000MHz Detection High Precision

Name: 3km Range Backpack Drone Jammer 300MHz-6000MHz Detection High Precision
Brand: AegisCloud (Shenzhen) Technology Innovation Co., Ltd.
SKU: JDY-300T
Price: 16750 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Model Number: JDY-300T

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: ＄16750

Packaging Details: Flight Case

Delivery Time: 30 days

Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram

Supply Ability: 200 per month

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            3km Range Backpack Drone Jammer, 3km Range Anti Drone Kit, 300MHz Backpack Drone Jammer


Product Name:	Portable Uav Detection And Jamming Shield Shie	Core Technology:	Ultra-High-Speed Frequency Sweeping
Detection Frequency Range:	300MHz~6000MHz	Key Detection Bands:	2.4G/5.8g/900MHz/1.1g/1.4GHz/5.2g (Customizable)
Detection Distance:	1~3km (Depends On Local Electromagnetic Environmen	Detection Angle:	360° Horizontal, -90°~+90° Pitch
Positioning Accuracy:	≤5m (Protocol Analysis)	Jamming Bands:	800MHz/900MHz/1.4GHz/1.6GHz/2.4GHz/5.8GHz
Jamming Distance:	1~2km (Urban Environment)	Jamming Angle:	90° Horizontal, 20°~40° Vertical
Jamming Response Time:	≤2.5s; ≤2s (Partial Versions)	Jamming Modes:	Repel, Forced Landing, Navigation Interference
Power Supply:	Built-in Lithium Battery (24V/29.2V/29.4V)	Weight:	≤4kg (Partial); ≤5kg; ≤6kg
Operating Temperature:	-20ºC~50ºC

Product Name:	Portable Uav Detection And Jamming Shield Shie
Core Technology:	Ultra-High-Speed Frequency Sweeping
Detection Frequency Range:	300MHz~6000MHz
Key Detection Bands:	2.4G/5.8g/900MHz/1.1g/1.4GHz/5.2g (Customizable)
Detection Distance:	1~3km (Depends On Local Electromagnetic Environmen
Detection Angle:	360° Horizontal, -90°~+90° Pitch
Positioning Accuracy:	≤5m (Protocol Analysis)
Jamming Bands:	800MHz/900MHz/1.4GHz/1.6GHz/2.4GHz/5.8GHz
Jamming Distance:	1~2km (Urban Environment)
Jamming Angle:	90° Horizontal, 20°~40° Vertical
Jamming Response Time:	≤2.5s; ≤2s (Partial Versions)
Jamming Modes:	Repel, Forced Landing, Navigation Interference
Power Supply:	Built-in Lithium Battery (24V/29.2V/29.4V)
Weight:	≤4kg (Partial); ≤5kg; ≤6kg
Operating Temperature:	-20ºC~50ºC

3km Range Backpack Drone Jammer 300MHz-6000MHz Detection High Precision

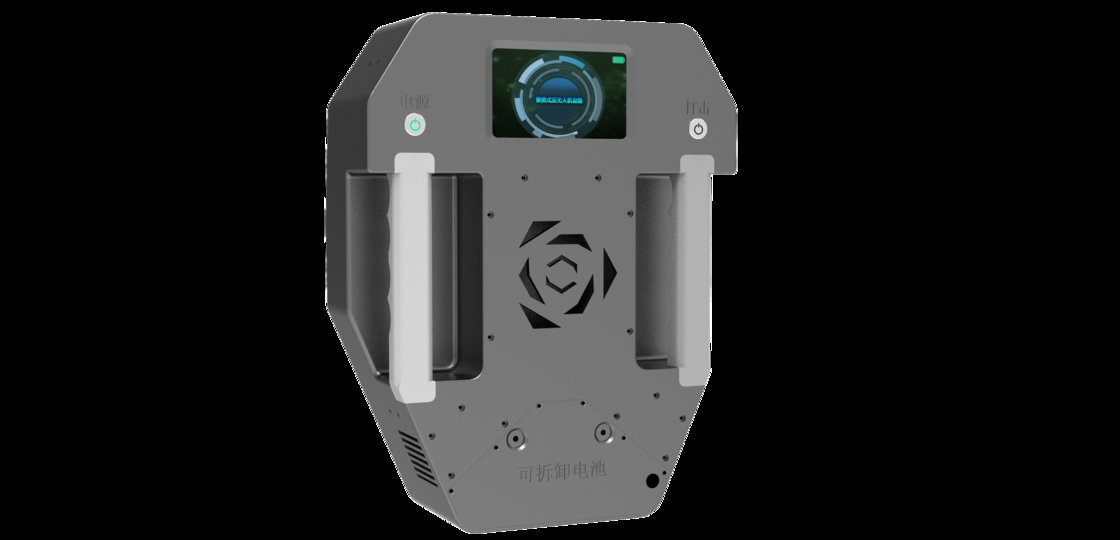

JDY-300T Portable Drone Detection and Strike Shield

The JDY-300T Portable Drone Detection and Strike Shield is a mobile countermeasure device designed for low-altitude drone protection. It utilizes advanced domestic chips, ultra-high-speed frequency sweeping technology, and a high-gain integrated antenna, enabling efficient detection and countermeasures against various types of drones.

Key Features

Full Frequency Band Coverage: Supports 300MHz to 6000MHz frequency band for comprehensive drone detection
Precise Positioning: Provides drone latitude/longitude, model identification, and flight trajectory
Long-Range Countermeasures: Effective range of 1.5-3 km with rapid response time
Ergonomic Design: Lightweight (≤6kg) for single-person operation and extended use
Integrated System: Combines detection and countermeasure functions for operational efficiency

Applications

Ideal for office buildings, industrial parks, and large-scale event security, providing flexible low-altitude protection solutions.

Technical Specifications

Detection Frequency Band	300MHz - 6000MHz
Interference Frequency Band	2.4G / 5.8G / 900MHz / 1.6G / 1.4G
Detection Distance	≥3000m (open space, no electromagnetic interference)
Interference Distance	≥2000m (open space, no electromagnetic interference)

Using electromagnetic suppression, the device cuts off the drone's remote control, image transmission, and navigation signals, forcing it to return or land, ensuring airspace safety.
