Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-1000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: ＄55830
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
|
Product Name:
|
Vehicle-Mounted Uav Detection, Jamming , Deception
|
Core Tech:
|
Passive Detection, Gnss Deception, Sector Strike
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Jamming Bands:
|
2.4G/5.8g/900MHz/GPS/Bds/Glonass/Galileo
|
Jamming Dist:
|
1~2km; ≥3km (GPS/Bds Jamming)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
500~1000m
|
Jamming Mode:
|
4-Sector Directional/Omnidirectional Strike
|
Power Supply:
|
DC24V 10A; AC220V (Via Adapter)
|
Weight:
|
≤30kg (Luggage-Type)
|
Networking:
|
4G/5g (Optional), LAN (RJ45)
|
Installation Mode:
|
Vehicle-Mounted, Fixed, Portable (Tripod)
|
Alarm Mode:
|
Audible/Visual Alarm
|
|
Product Name:
|
Vehicle-Mounted Uav Detection, Jamming , Deception
|
|
Core Tech:
|
Passive Detection, Gnss Deception, Sector Strike
|
|
Detection Freq:
|
300MHz~6000MHz
|
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
|
Jamming Bands:
|
2.4G/5.8g/900MHz/GPS/Bds/Glonass/Galileo
|
|
Jamming Dist:
|
1~2km; ≥3km (GPS/Bds Jamming)
|
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
|
Deception Dist:
|
500~1000m
|
|
Jamming Mode:
|
4-Sector Directional/Omnidirectional Strike
|
|
Power Supply:
|
DC24V 10A; AC220V (Via Adapter)
|
|
Weight:
|
≤30kg (Luggage-Type)
|
|
Networking:
|
4G/5g (Optional), LAN (RJ45)
|
|
Installation Mode:
|
Vehicle-Mounted, Fixed, Portable (Tripod)
|
|
Alarm Mode:
|
Audible/Visual Alarm
|

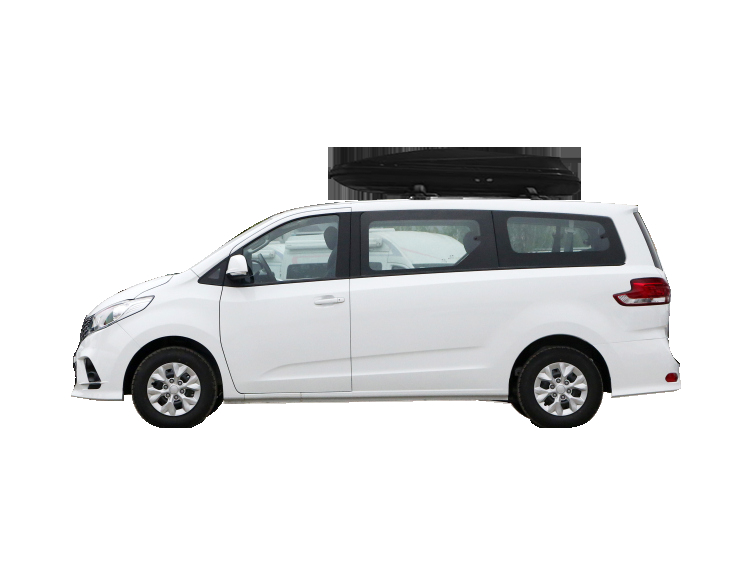

Product IntroductionThis vehicle-mounted system is a high-performance drone countermeasure, focusing on technical specifications and stability.
Suitable for government, military, and security projects requiring advanced protection, providing a reliable low-altitude security barrier.
| Specification | Value |
|---|---|
| Detection Frequency: | 300MHz - 6000MHz |
| Interference Frequency: | 2.4G/5.2G/5.8G/900MHz/1.6G/1.4G |
| Detection Range (Open): | ≥7500m (no significant EMI) |
| Detection Range (Urban): | ≥3000m (complex EMI environments) |
| Interference Range: | ≥3000m (open space, no significant EMI) |
