Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-1000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $55830
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
Product Name:
|
Vehicle-Mounted Uav Detection, Jamming , Deception
|
Core Tech:
|
Passive Detection, Gnss Deception, Sector Strike
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Jamming Bands:
|
2.4G/5.8g/900MHz/GPS/Bds/Glonass/Galileo
|
Jamming Dist:
|
1~2km; ≥3km (GPS/Bds Jamming)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
500~1000m
|
Jamming Mode:
|
4-Sector Directional/Omnidirectional Strike
|
Power Supply:
|
DC24V 10A; AC220V (Via Adapter)
|
Weight:
|
≤30kg (Luggage-Type)
|
Networking:
|
4G/5g (Optional), LAN (RJ45)
|
Installation Mode:
|
Vehicle-Mounted, Fixed, Portable (Tripod)
|
Alarm Mode:
|
Audible/Visual Alarm
|
Product Name:
|
Vehicle-Mounted Uav Detection, Jamming , Deception
|
Core Tech:
|
Passive Detection, Gnss Deception, Sector Strike
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Jamming Bands:
|
2.4G/5.8g/900MHz/GPS/Bds/Glonass/Galileo
|
Jamming Dist:
|
1~2km; ≥3km (GPS/Bds Jamming)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
500~1000m
|
Jamming Mode:
|
4-Sector Directional/Omnidirectional Strike
|
Power Supply:
|
DC24V 10A; AC220V (Via Adapter)
|
Weight:
|
≤30kg (Luggage-Type)
|
Networking:
|
4G/5g (Optional), LAN (RJ45)
|
Installation Mode:
|
Vehicle-Mounted, Fixed, Portable (Tripod)
|
Alarm Mode:
|
Audible/Visual Alarm
|

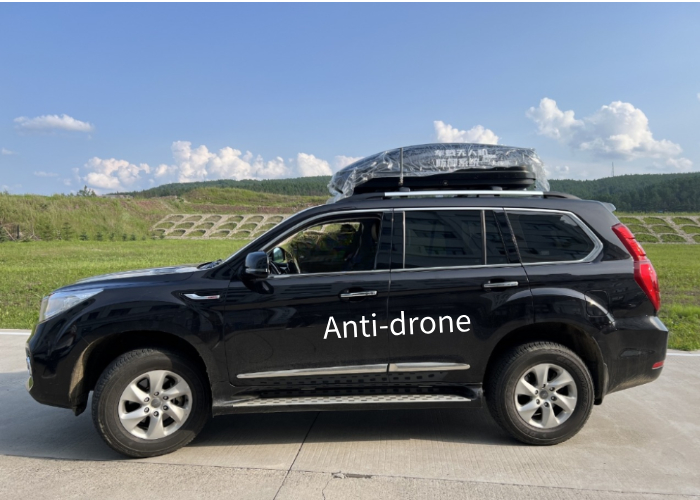

The Vehicle-Mounted UAV Detection and Interference Integrated Defense System (VMIDS) is designed for crowded and critical transportation hubs such as airports, train stations, and ports. Integrating detection, identification, and jamming, the system can quickly detect and intercept low-altitude drone threats, effectively ensuring operational safety at transportation hubs.
Specification | Value |
---|---|
Detection Frequency: | 300MHz - 6000MHz |
Interference Frequency: | 2.4G/5.2G/5.8G/900MHz/1.6G/1.4G |
Detection Range (Open): | ≥7500m (no significant EMI) |
Detection Range (Urban): | ≥3000m (complex EMI environments) |
Interference Range: | ≥3000m (open space, no significant EMI) |
