Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-600B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $40200
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/P,D/A,Western Union,MoneyGram
Supply Ability: 200 per month
Product Name:
|
Jdy-600b Wrist Uav Countermeasure Equipment
|
Core Tech:
|
Electromagnetic Suppression, Navigation Deception
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8g/800MHz/900MHz/1.4G/1.6g/5.2GHz
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Jamming Bands:
|
902-928MHz/2.4-2.4835GHz/5.15-5.25GHz/5.8GHz
|
Jamming Dist:
|
≥1.5km; 1~2km (Partial Versions)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
≥1km (with Directional Antenna)
|
Power Supply:
|
AC220V→DC24V, 29.4V Lithium Battery
|
Weight:
|
≤11kg (Backpack Part); ≤15kg (Total)
|
Operating Temp:
|
-20ºC~50ºC; -35ºC~75ºC(Partia)
|
Protection Level:
|
Ipx1 (Customizable); IP66 (Partial)
|
Control Mode:
|
Wristwatch Terminal (Touch, Vibration Alert)
|
Alarm Mode:
|
Audible/Visual (Adjustable)
|
Product Name:
|
Jdy-600b Wrist Uav Countermeasure Equipment
|
Core Tech:
|
Electromagnetic Suppression, Navigation Deception
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8g/800MHz/900MHz/1.4G/1.6g/5.2GHz
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Jamming Bands:
|
902-928MHz/2.4-2.4835GHz/5.15-5.25GHz/5.8GHz
|
Jamming Dist:
|
≥1.5km; 1~2km (Partial Versions)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
≥1km (with Directional Antenna)
|
Power Supply:
|
AC220V→DC24V, 29.4V Lithium Battery
|
Weight:
|
≤11kg (Backpack Part); ≤15kg (Total)
|
Operating Temp:
|
-20ºC~50ºC; -35ºC~75ºC(Partia)
|
Protection Level:
|
Ipx1 (Customizable); IP66 (Partial)
|
Control Mode:
|
Wristwatch Terminal (Touch, Vibration Alert)
|
Alarm Mode:
|
Audible/Visual (Adjustable)
|
Drone intrusion or malicious attacks on energy facilities can cause significant economic losses and safety hazards. Drone Detection and Interference Equipment is designed to provide low-altitude defense for power plants, oil fields, chemical parks, and other locations, ensuring production safety.
Detection frequency | 300MHz~6000MHz |
---|---|
Detection false alarm rate | ≤1 time/12 hours |
Detection distance | 1-3000m (subject to local electromagnetic environment) |
Decoy effective distance | ≥ 1000m |
Detection frequency bands | 2.4G/5.8G/800MHz/900MHz/1.4GHz |
Decoy effective orientation | Horizontal beam ≥30°, pitch beam >20° |
Countermeasure distance | ≥ 1500m (subject to local electromagnetic environment) |
Jamming device power | ≥ 10w |
Decoy signals | GPS/BDS/GLONASS/Galileo |
Alarm mode | Sound and light alarm (adjustable) |
Functions | No-fly zone enforcement, repulsion |

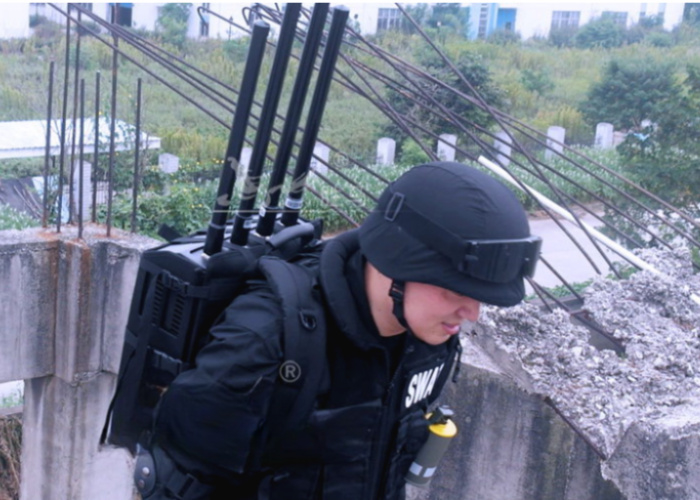

The portable backpack design eliminates the need for additional transportation and allows users to maintain continuous protection while on the move, making it particularly suitable for long-duration missions and large-scale patrols.
