Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-600B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $40200
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/P,D/A,Western Union,MoneyGram
Supply Ability: 200 per month
Product Name:
|
Jdy-600b Wrist Uav Countermeasure Equipment
|
Core Tech:
|
Electromagnetic Suppression, Navigation Deception
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8g/800MHz/900MHz/1.4G/1.6g/5.2GHz
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Jamming Bands:
|
902-928MHz/2.4-2.4835GHz/5.15-5.25GHz/5.8GHz
|
Jamming Dist:
|
≥1.5km; 1~2km (Partial Versions)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
≥1km (with Directional Antenna)
|
Power Supply:
|
AC220V→DC24V, 29.4V Lithium Battery
|
Weight:
|
≤11kg (Backpack Part); ≤15kg (Total)
|
Operating Temp:
|
-20ºC~50ºC; -35ºC~75ºC(Partia)
|
Protection Level:
|
Ipx1 (Customizable); IP66 (Partial)
|
Control Mode:
|
Wristwatch Terminal (Touch, Vibration Alert)
|
Alarm Mode:
|
Audible/Visual (Adjustable)
|
Product Name:
|
Jdy-600b Wrist Uav Countermeasure Equipment
|
Core Tech:
|
Electromagnetic Suppression, Navigation Deception
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
2.4G/5.8g/800MHz/900MHz/1.4G/1.6g/5.2GHz
|
Detection Dist:
|
1~3km (Depends On Electromagnetic Environment)
|
Jamming Bands:
|
902-928MHz/2.4-2.4835GHz/5.15-5.25GHz/5.8GHz
|
Jamming Dist:
|
≥1.5km; 1~2km (Partial Versions)
|
Deception Signals:
|
GPS/Bds/Glonass/Galileo
|
Deception Dist:
|
≥1km (with Directional Antenna)
|
Power Supply:
|
AC220V→DC24V, 29.4V Lithium Battery
|
Weight:
|
≤11kg (Backpack Part); ≤15kg (Total)
|
Operating Temp:
|
-20ºC~50ºC; -35ºC~75ºC(Partia)
|
Protection Level:
|
Ipx1 (Customizable); IP66 (Partial)
|
Control Mode:
|
Wristwatch Terminal (Touch, Vibration Alert)
|
Alarm Mode:
|
Audible/Visual (Adjustable)
|
The JDY-600B wrist-worn UAV integrated device combines detection, jamming, decoy, and networking functions. It can quickly identify UAV signals through high-precision passive detection and achieve accurate positioning for effective tracking. When an unauthorized UAV is detected, it forces the target UAV to return or land by cutting off the image transmission link and navigation signals, ensuring airspace security.

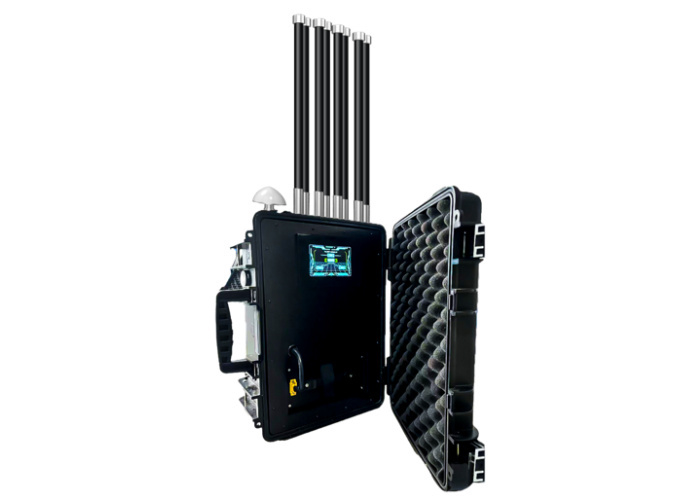

The JDY-600B Backpack Drone Jammer is a high-power, portable counter-drone device designed for drone defense in complex environments. It utilizes high-power RF jamming technology to effectively suppress drone remote control and image transmission signals. Its wide coverage makes it suitable for both open areas and high-risk urban locations. Its stable output power and flexible deployment make it an ideal choice for military, police, security, and critical facility protection.
Detection frequency | 300MHz~6000MHz |
---|---|
Detection false alarm rate | ≤1 time/12 hours |
Detection distance | 1-3000m (subject to local electromagnetic environment) |
Decoy effective distance | ≥ 1000m |
Detection frequency bands | 2.4G/5.8G/800MHz/900MHz/1.4GHz |
Decoy effective orientation | Horizontal beam ≥30°, pitch beam >20° |
Countermeasure distance | ≥ 1500m (subject to local electromagnetic environment) |
Jamming device power | ≥ 10w |
Decoy signals | GPS/BDS/GLONASS/Galileo |
Alarm mode | Sound and light alarm (adjustable) |
Functions | No-fly zone enforcement, repulsion |
The portable backpack design eliminates the need for additional transportation and allows users to maintain continuous protection while on the move, making it particularly suitable for long-duration missions and large-scale patrols.
