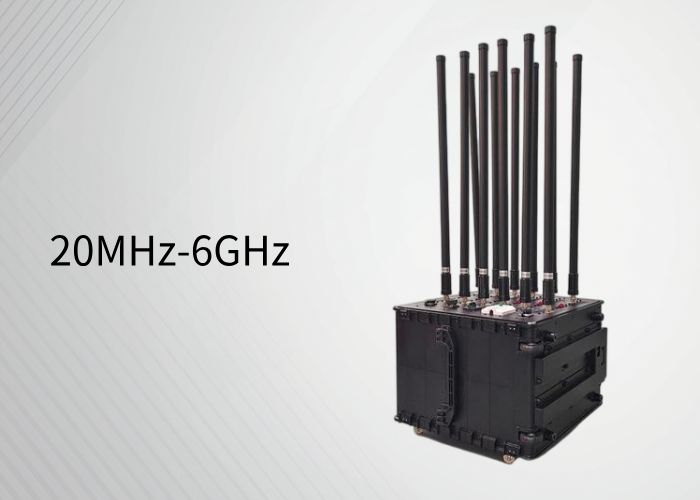

Yunshang Jindou (Nanjing) Technology Co., Ltd
cochran06011@gmail.com
86--13814025757
Product Details
Place of Origin: China
Brand Name: jindowin
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-700
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: ＄22431
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability: 200 per month
|
Countermeasure Method:
|
Omnidirectional Strike (with 12 External Omnidirectional Antennas)
|
Countermeasure Distance:
|
1-3000m (subject To Local Electromagnetic Environment)
|
Jamming Mode:
|
AI Intelligence + BTS + DDS Digital Architecture Jamming Technology
|
Feature:
|
Millisecond Response Time
|
Response Speed:
|
≤ 2.5 S
|
Power Source:
|
Battery
|
Material:
|
Waterproof And Dustproof (IP Rating)
|
Advantage:
|
Portable Design
|
Service:
|
Certified By Military/industrial Testing
|
|
Countermeasure Method:
|
Omnidirectional Strike (with 12 External Omnidirectional Antennas)
|
|
Countermeasure Distance:
|
1-3000m (subject To Local Electromagnetic Environment)
|
|
Jamming Mode:
|
AI Intelligence + BTS + DDS Digital Architecture Jamming Technology
|
|
Feature:
|
Millisecond Response Time
|
|
Response Speed:
|
≤ 2.5 S
|
|
Power Source:
|
Battery
|
|
Material:
|
Waterproof And Dustproof (IP Rating)
|
|
Advantage:
|
Portable Design
|
|
Service:
|
Certified By Military/industrial Testing
|
Dual-purpose (vehicle-mounted/station-mounted):
Supports backpack, tripod, and vehicle mounting. Its lightweight design facilitates individual soldier carrying, rapid movement, and concealed deployment. Modular quick-release and multi-source power supply compatibility allows for both vehicle-mounted and battery-powered operation, enabling rapid deployment, precise countermeasure coverage from 1–3000 meters, and easy field upgrades.
Product Parameters:
| Parameters | Specifications |
|---|---|
| Effective Range | 1–3000 meters |
| Frequency Band | 900MHz / 2.4GHz / 5.8GHz |
| Output Power | Adjustable |
| Antenna | Omnidirectional Array |
| Power Supply | Lithium Battery / Vehicle-Mounted |
| Weight | Approx. 5 kg (including battery) |
| Operating Temperature | -20℃ ～ +55℃ |
| Protection Rating | IP67 |
| Cooling | Forced Air Cooling + Intelligent Temperature Control |
| Mounting | Backpack / Tripod / Vehicle-Mounted Quick-Snap Clip |
Reliable and Durable:
Constructed with high-quality military-grade alloys and engineering plastics, the fuselage is reinforced for shock resistance and sealed. The anti-corrosion coating withstands salt spray and humid environments. Key modules have passed high and low temperature, vibration, and weathering tests, making it suitable for long-term field duty and frequent loading and unloading. Centralized maintenance ports facilitate on-site inspection and module replacement.
Temperature Control Protection:
Built-in multi-point temperature sensors and intelligent temperature control algorithms monitor and automatically adjust output and fan speed in real time; frequency reduction or protection shutdown is activated when necessary. Remote temperature and operating status reporting is supported to ensure stability and device lifespan under high loads.
Safety Certification:
Designed with compliance in mind, it can cooperate with third-party laboratories to complete RF, safety, and EMC testing and provide reports. It supports software locking of power and frequency bands, operation log recording, and access control, facilitating compliance with industry and local regulatory reviews and secure deployment.
