Product Details
Place of Origin: China
Brand Name: jindowin
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-Portable Suitcase Versatile Portable Defense
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: ＄10741
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 200 per month
|
Interference Device Power:
|
≥10W
|
Interference Angle:
|
360° Coverage
|
Interference Distance:
|
≥ 3000m (in Open Space With No Significant Electromagnetic Interference)
|
Customization:
|
Available
|
Core Tech:
|
Spectrum Sensing, Ai Recognition
|
Detection Freq:
|
300MHz~6000MHz
|
Key Detection Bands:
|
0.4G/0.8-0.9g/1.2g/1.4G/1.6g/2.4G/5.8g
|
Detection Dist:
|
1~3km (Depends On Sensitivity Mode)
|
Jamming Dist:
|
1000~1500m (Depends On Power Mode)
|
Detection Alarm:
|
Audible/Visual Alarms (Adjustable)
|
False Alarm Rate:
|
≤1 Time/12 Hours
|
Miss Alarm Rate:
|
<10% (for Existing Database Models)
|
Simultaneous Detection:
|
≥10 Uavs
|
Direction Finding:
|
Supported (with Directional Antenna)
|
Power Supply:
|
40A Battery
|
Display:
|
7-Inch LCD Screen
|
Weight:
|
≤30kg (Total); ≤2.5kg (Charger)
|
Operating Temp:
|
-40ºC~75ºC
|
|
Interference Device Power:
|
≥10W
|
|
Interference Angle:
|
360° Coverage
|
|
Interference Distance:
|
≥ 3000m (in Open Space With No Significant Electromagnetic Interference)
|
|
Customization:
|
Available
|
|
Core Tech:
|
Spectrum Sensing, Ai Recognition
|
|
Detection Freq:
|
300MHz~6000MHz
|
|
Key Detection Bands:
|
0.4G/0.8-0.9g/1.2g/1.4G/1.6g/2.4G/5.8g
|
|
Detection Dist:
|
1~3km (Depends On Sensitivity Mode)
|
|
Jamming Dist:
|
1000~1500m (Depends On Power Mode)
|
|
Detection Alarm:
|
Audible/Visual Alarms (Adjustable)
|
|
False Alarm Rate:
|
≤1 Time/12 Hours
|
|
Miss Alarm Rate:
|
<10% (for Existing Database Models)
|
|
Simultaneous Detection:
|
≥10 Uavs
|
|
Direction Finding:
|
Supported (with Directional Antenna)
|
|
Power Supply:
|
40A Battery
|
|
Display:
|
7-Inch LCD Screen
|
|
Weight:
|
≤30kg (Total); ≤2.5kg (Charger)
|
|
Operating Temp:
|
-40ºC~75ºC
|

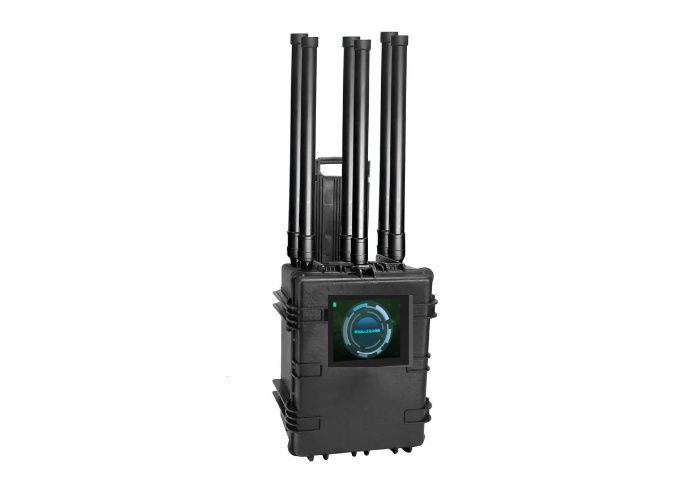

This device supports 360° detection and interception without blind spots. Combining a multi-band antenna array and a mobile gimbal, it achieves all-around coverage of incoming drones. The system maintains millisecond-level linkage between detection, tracking, locking, and countermeasures, ensuring timely response even in complex airspace and minimizing blind spots and misjudgment risks. It is suitable for all-weather protection needs at urban boundaries, important facilities, and tactical forward positions.
| Parameter | Description |
|---|---|
| Detection Range | Up to XX kilometers |
| Frequency Band Coverage | Low/Medium/High Frequency |
| Antenna Type | Phased Array/Rotating Gimbal |
| Target Recognition | AI Multimodal Recognition |
| Response Time | Milliseconds |
| Operating Temperature | -40℃ to +60℃ |
| Protection Rating | IP67 |
| Power Supply | Vehicle-mounted/Portable Power Supply |
| Interface | LAN/USB/RS488/CAN |
| Weight | XX kg (Portable) |
The system is equipped with a high-sensitivity radar, photoelectric, and infrared composite sensor, enabling stable detection of small targets in rain, fog, dust, and nighttime environments. The sensor employs adaptive filtering and temperature drift compensation technology to dynamically adjust sensitivity and thresholds, ensuring high detection rates and low false alarm rates even under complex weather and electromagnetic interference conditions, providing a reliable data foundation for mission execution.
A user-friendly interface and rapid deployment, with high reliability meeting military-grade standards, are featured. The mission-oriented human-machine interface, graphical instruments, and one-click presets allow even beginners to complete deployment and connection within minutes. The hardware and key modules utilize redundant design and shock-resistant packaging, meeting MIL-STD level vibration and temperature/humidity requirements, ensuring stability and maintainability in long-term field environments, suitable for both tactical rapid deployment and fixed-station scenarios.
A precise data analysis system assists in formulating optimal countermeasures. The built-in data analysis platform performs real-time modeling and situational assessment of target trajectories, signal characteristics, and historical events. Combining rule bases and machine learning, it recommends optimal countermeasures (electronic jamming, directed energy, capture nets, etc.) and predicts countermeasure effects. The system supports log export and cloud playback, facilitating post-event review and continuous optimization of countermeasure strategies, improving overall protection efficiency and decision-making accuracy.
