Product Details
Place of Origin: China
Model Number: TX-007Pro-8CH-DF-WG-DR
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: ＄10000
Delivery Time: 30 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000 per month
|
Product Model:
|
TX-007Pro-8CH-DF-WG-DR
|
Product Type:
|
Dual-Frequency Eight-Channel Anti-Interference Terminal
|
Operating Frequencies:
|
BDS-B1: 1561.098MHz, GPS-L1: 1575.42MHz (with Configurable Second Frequency Point)
|
Single-Interference Signal-to-Interference Ratio:
|
≥95dB
|
Three-Interference Signal-to-Interference Ratio:
|
≥85dB
|
Horizontal Positioning Accuracy:
|
≤1.5 Meters
|
Speed Measurement Accuracy:
|
≤0.2 Meters/second
|
Timing Accuracy:
|
<100ns
|
Operating Voltage:
|
5~17V (12V Recommended)
|
Power Consumption:
|
≤10W
|
Power/Data Interface Type:
|
J30J-9ZK Core Connector
|
RF Interface Type:
|
SMA Connector (One-Line Communication Type)
|
RF Interface Output B1/L1 Signal Level:
|
-70~-60dBm
|
Overall Dimensions:
|
130mm×135mm×38mm
|
Weight:
|
≤400g
|
|
Product Model:
|
TX-007Pro-8CH-DF-WG-DR
|
|
Product Type:
|
Dual-Frequency Eight-Channel Anti-Interference Terminal
|
|
Operating Frequencies:
|
BDS-B1: 1561.098MHz, GPS-L1: 1575.42MHz (with Configurable Second Frequency Point)
|
|
Single-Interference Signal-to-Interference Ratio:
|
≥95dB
|
|
Three-Interference Signal-to-Interference Ratio:
|
≥85dB
|
|
Horizontal Positioning Accuracy:
|
≤1.5 Meters
|
|
Speed Measurement Accuracy:
|
≤0.2 Meters/second
|
|
Timing Accuracy:
|
<100ns
|
|
Operating Voltage:
|
5~17V (12V Recommended)
|
|
Power Consumption:
|
≤10W
|
|
Power/Data Interface Type:
|
J30J-9ZK Core Connector
|
|
RF Interface Type:
|
SMA Connector (One-Line Communication Type)
|
|
RF Interface Output B1/L1 Signal Level:
|
-70~-60dBm
|
|
Overall Dimensions:
|
130mm×135mm×38mm
|
|
Weight:
|
≤400g
|

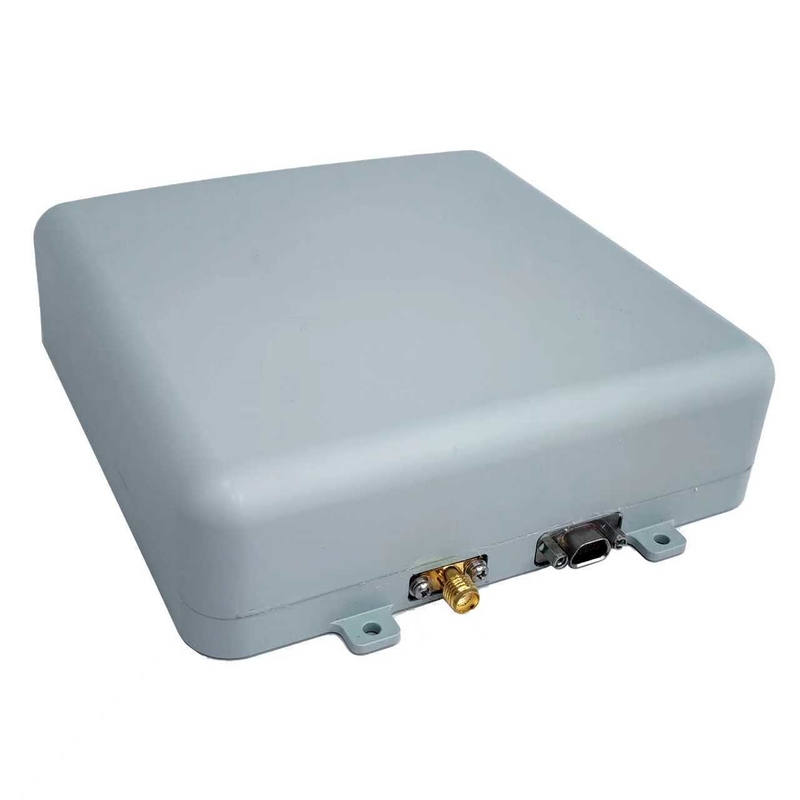

The TX-007Pro-8CH-DF-WG-DR is a dual-frequency 8-channel anti-interference terminal designed for reliable navigation scenarios including UAVs and unmanned vehicles. It protects user terminals from various interferences and malicious attacks, significantly enhancing PNT (Positioning, Navigation, Timing) information security.
Effectively suppresses multiple interference types including narrowband, broadband, pulse, frequency sweeping, and Gaussian interference. Achieves signal-to-interference ratio (SIR) of ≥95dB for single interference and ≥85dB for three interferences.
| Question | Answer |
|---|---|
| What are the working frequencies? | Supports BDS-B1 (1561.098MHz) and GPS-L1 (1575.42MHz); second frequency point configurable |
| How to choose between serial port and RF port? | Use serial port for direct flight controller connection; RF port for conventional active antenna replacement |
| What precautions should be taken? | 1. RF port devices shouldn't provide >5V power 2. Don't plug/unplug USB while powered on 3. Don't exceed 17V input (recommended 12V) |
| How to perform software upgrade? | Use dedicated upgrade serial port (RXD0/TXD0, TTL level) with upgrade tool |
| Physical specifications and power consumption? | Dimensions: 130*135*38mm Weight: ≤400g Power consumption: ≤10W |
| Power/data interface connector? | J30J-9ZK core connector with specific pin definitions for power and data |
