Product Details
Place of Origin: China
Certification: Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.
Model Number: JDY-400
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: ＄13960
Packaging Details: Flight Case
Delivery Time: 30 days
Payment Terms: T/T,D/A,D/P,L/C,Western Union,MoneyGram
Supply Ability: 200 per month
|
Product Name:
|
Jdy-400 Fixed Uav Omnidirectional Jamming System
|
Core Technology:
|
Omnidirectional Electromagnetic Suppression
|
Jamming Frequency Bands:
|
1.2g/1.5g/2.4G/5.2g/5.8g/433MHz/868MHz/900MHz
|
Transmission Power:
|
43dBm/Channel
|
Jamming Distance:
|
1~3km(Depends On Local Electromagnetic Environment
|
Jamming Angle:
|
360° Horizontal, 90° Vertical
|
Jamming Response Time:
|
≤2.5s; ≤6.5s (Partial Parameter Sources)
|
Simultaneous Interception Quantity:
|
≥10 Uavs
|
Power Supply:
|
AC220V Converted To DC24V
|
Working Time:
|
7×24 Hours Continuous Operation
|
Weight:
|
≤12kg (Excluding Tripod And Antenna)
|
Dimensions:
|
370mm×295mm×152mm
|
Operating Temperature:
|
-35ºC~50ºC
|
Protection Level:
|
IP66
|
Networking Method:
|
4G/5g (Optional), LAN (RJ45 Interface)
|
|
Product Name:
|
Jdy-400 Fixed Uav Omnidirectional Jamming System
|
|
Core Technology:
|
Omnidirectional Electromagnetic Suppression
|
|
Jamming Frequency Bands:
|
1.2g/1.5g/2.4G/5.2g/5.8g/433MHz/868MHz/900MHz
|
|
Transmission Power:
|
43dBm/Channel
|
|
Jamming Distance:
|
1~3km(Depends On Local Electromagnetic Environment
|
|
Jamming Angle:
|
360° Horizontal, 90° Vertical
|
|
Jamming Response Time:
|
≤2.5s; ≤6.5s (Partial Parameter Sources)
|
|
Simultaneous Interception Quantity:
|
≥10 Uavs
|
|
Power Supply:
|
AC220V Converted To DC24V
|
|
Working Time:
|
7×24 Hours Continuous Operation
|
|
Weight:
|
≤12kg (Excluding Tripod And Antenna)
|
|
Dimensions:
|
370mm×295mm×152mm
|
|
Operating Temperature:
|
-35ºC~50ºC
|
|
Protection Level:
|
IP66
|
|
Networking Method:
|
4G/5g (Optional), LAN (RJ45 Interface)
|

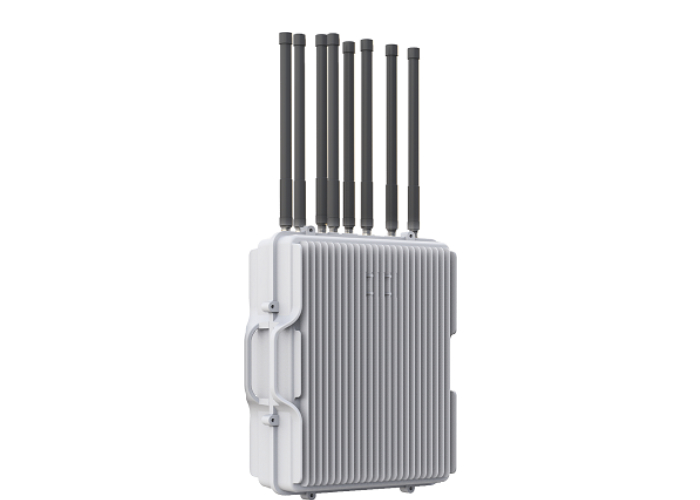

The Portable Drone Detector & UAV Omnidirectional Jammer is a comprehensive protection device designed specifically for large-scale public event security scenarios. It is widely suitable for concerts, sporting events, exhibitions, government events, and crowded areas. This system effectively warns and counters drone intrusions, ensuring on-site order and public safety.
| Attribute | Specification |
|---|---|
| Core Technology | Omnidirectional Electromagnetic Suppression |
| Jamming Frequency Bands | 1.2G/1.5G/2.4G/5.2G/5.8G/433MHz/868MHz/900MHz |
| Transmission Power | 43dBm/Channel |
| Jamming Distance | 1-3km (varies by local electromagnetic environment) |
| Jamming Angle | 360° Horizontal, 90° Vertical |
| Response Time | ≤2.5s; ≤6.5s (partial parameter sources) |
| Power Supply | AC220V converted to DC24V |
| Operating Time | 24/7 continuous operation |
| Dimensions | 370mm × 295mm × 152mm |
| Weight | ≤12kg (excluding tripod and antenna) |
| Temperature Range | -35°C to 50°C |
| Protection Level | IP66 |
| Networking | 4G/5G (optional), LAN (RJ45 interface) |
This system establishes a multi-layered drone security network, combining portable detection with fixed defense systems. The JDY-400 provides reliable protection against unauthorized drone activity while maintaining operational flexibility for various security scenarios.
Integrated with high-performance detection and jamming modules, the device offers the following features
Visual Drone Threat Alert
The system captures drone activity in real time and displays the threat level through a graphical interface, enabling security personnel to quickly assess and respond.
Support for Expanded Remote Monitoring Module
Through remote networking, it can connect to back-end security platforms for cross-regional monitoring and unified dispatch, meeting the centralized management requirements of large-scale security systems.
Wide-Area Detection Coverage
With a detection radius of up to several kilometers, drones can be detected before they enter the airspace above an event, giving security personnel more time to respond.
Multi-band signal analysis and jamming
Simultaneously analyzes and identifies common remote control and image transmission frequency bands (such as 2.4GHz, 5.8GHz, 900MHz, and satellite navigation signals). It can also perform omnidirectional jamming as needed, effectively blocking the drone's control link and positioning capabilities.
This product is not only portable and easy to deploy, but also complements fixed defense systems to establish a multi-layered drone security network, making it an ideal choice for ensuring the safety of public events.
